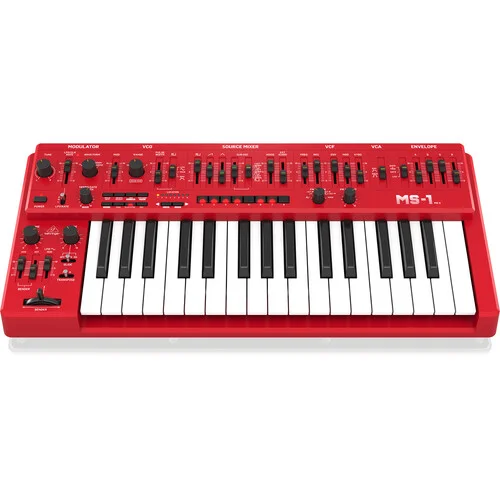

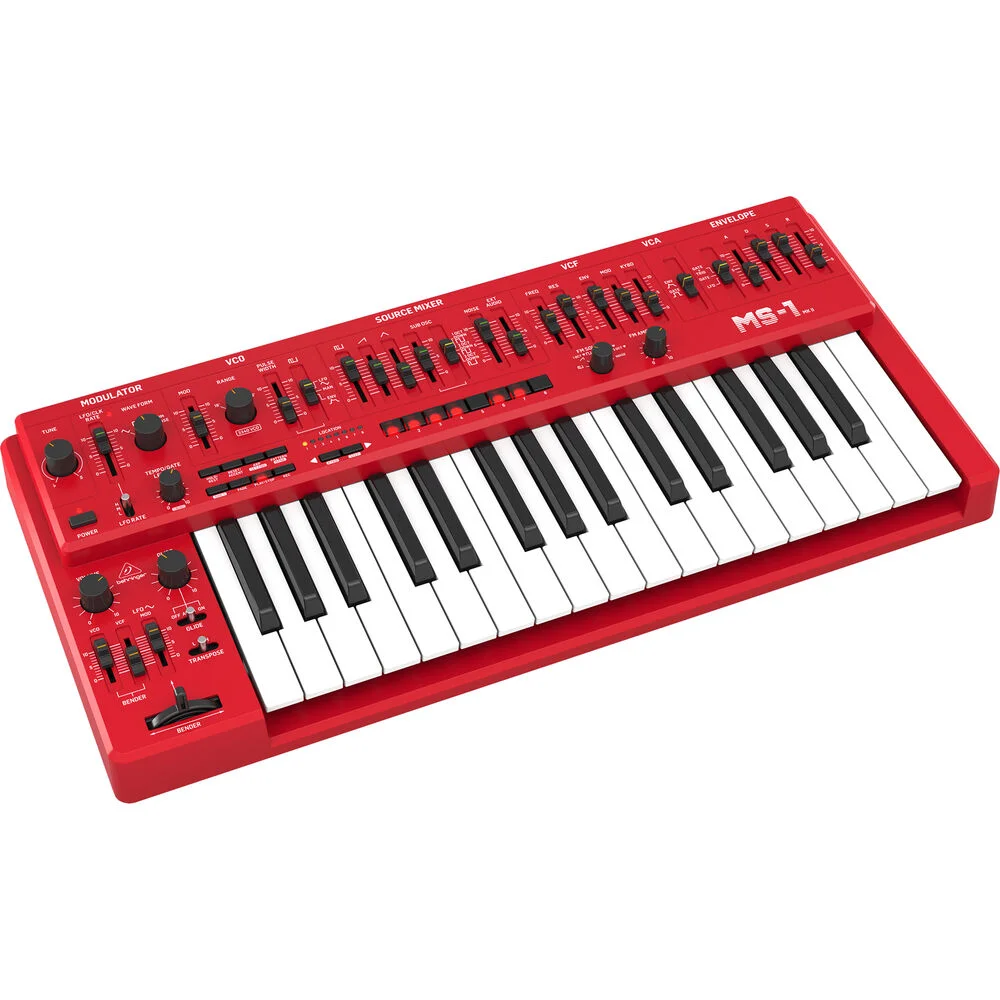

Behringer MS-1 MK II-RD Analog Synthesizer with Live Performance Kit

Behringer MS-1 MK II-RD Overview

With 32 full-sized keys and a pure analog signal path, the Behringer MS-1 MK II-RD is a faithful recreation of the classic Roland SH-101. This MK II model features improved VCF and VCA designs, dual portamento, and Sync In functions, making it well suited for creating a range of sounds from superfat bass and lead tones to mindbending effects.

The included performance kit, which consists of an attachable handgrip and guitar strap, allows the instrument to be strapped on like a guitar for live performance. Additionally, the MS-1 MK II-RD is great for studio use with standard MIDI (In/Out/Thru), USB MIDI, and extensive 1/4″ and 3.5mm inputs and outputs, which allow for the connection to additional external gear such as other keyboards and modular synthesizers.

Behringer MS-1 MK II-RD Key Features

• Behringer MS-1 MK II-RD is a Monophonic synthesizer with authentic 3340 analog oscillator for phat music creation
• MK II Version featuring improved VCF and VCA designs, dual-mode portamento, and Sync In functions
• Pure analog signal path based on legendary VCO, VCF, and VCA designs, to recreate the classic sound performance
• Oscillator with 4 simultaneously mixable waveforms: saw, triangle, square/PWM, and octave-divided square sub-oscillator
• Resonant VCF can be modulated with ADSR, LFO, keyboard tracking, and Bender controller
• 6 FM sources based on NovaMod allow for creative VCF modulation and unheard-of filter effects
• ADSR envelope generator for incredible waveshaping

Behringer MS-1 MK II-RD Advanced Functions

• Easy-to-use 32-step sequencer with 64 sequence locations
• Arpeggiator with wide patterns for great sound effects
• Attachable handgrip included with pitchbend wheel and pitch-modulation trigger
• Guitar strap included for live jamming on stage
• Bender assignable to VCO, VCF and pitch mod wheel on the attachable handgrip
• Noise generator can be used as a modulation source for distortion-like effects
• Incredible portamento function for fantastic sound effects
• Pulse wave can be modulated by LFO, envelope, and manually
• 57 sliders and switches to give you direct and real-time access to all important parameters
• External audio input for processing external sound sources
• Comprehensive USB/MIDI implementation for connection to keyboard/sequencer

Versatile Oscillator

Behringer MS-1 MK II-RD authentic 3340 Voltage Controlled Oscillator (VCO) provides an incredible range of 4 simultaneously mixable waveforms for sculpting the perfect sound. Options include: saw, triangle, square/pwm and octave-divided square sub-oscillator. Additionally, the VCO can be adjusted across a wide, 4-octave range (16, 8, 4, and 2′). This amazing flexibility gives you the tools needed to be your creative best.

Versatile VCF

The very heart of Behringer MS-1 MK II-RD sound is its highly flexible Voltage Control Filter (VCF), which includes faders for Cutoff Frequency, Resonance, Envelope and Modulation depth, and Keyboard follow, to dial in the perfect sound. MS-1 MK II-RD’s VCF can be modulated via the ADSR, keyboard tracking, and Bender controller. The Frequency Modulation (FM) Amount knob sets the depth, while the FM Source selector lets you further modify the sound.

Envelope

Behringer MS-1 MK II-RD Envelope generator features 4 ADSR (Attack, Decay, Sustain, and Release) faders that help you craft incredible sounds, and utilizes a 3-position switch for Gate, Gate + Trigger, and LFO. When applied to the VCA, the ADSR envelope is used to control the level of the note being played over time. When applied to the VCF, the ADSR envelope is used to control the cutoff frequency of the filter for each note played over time.

Onboard Sequencer and Arpeggiator

Behringer MS-1 MK II-RD sequencer allows you to program up to 32 steps of notes and rests and save them as a pattern. You can record, save, and recall up to 64 patterns, all of which can be stored in the 8 banks, each holding up to 8 patterns. Your sequences can be played either in Keyboard mode, where you create and store the pattern, or Step mode, which allows you to interact while composing a pattern.

Own the Stage

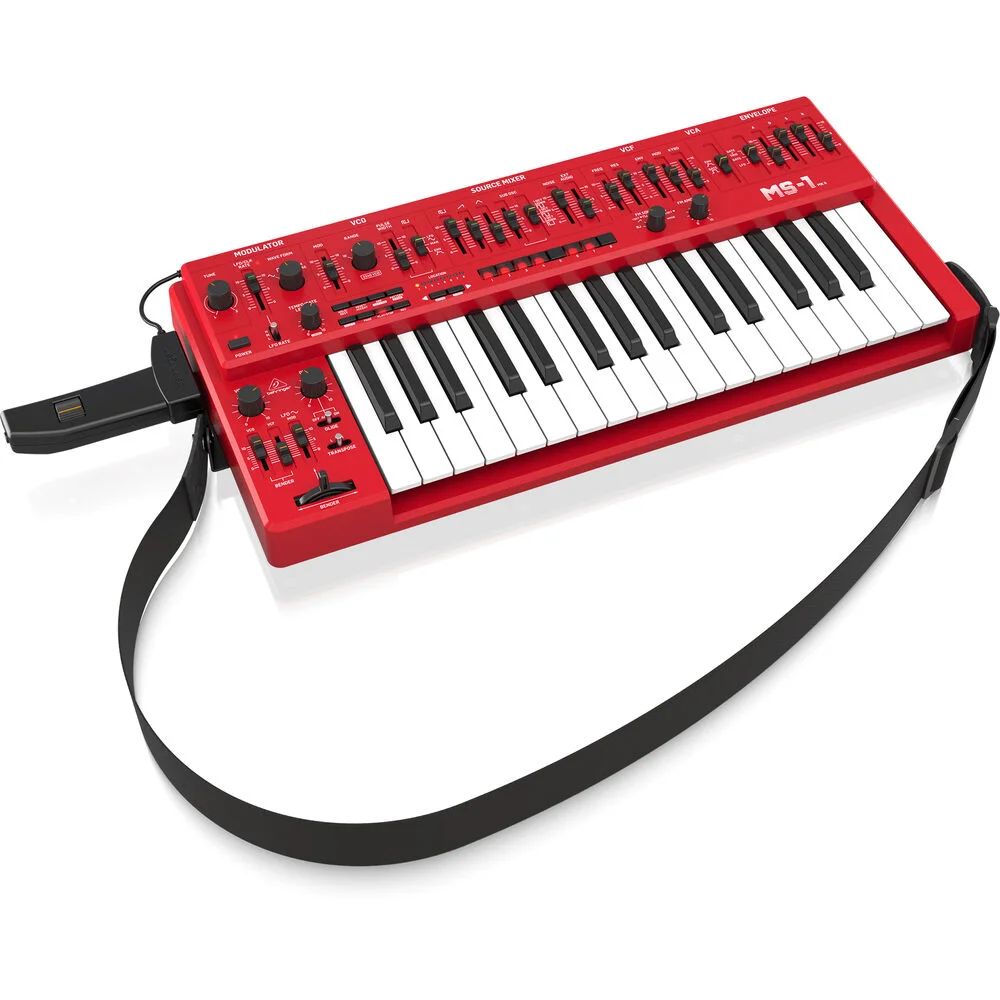

When you’re ready to strut your stuff and get a little centerstage time, the MS-1 MK II-RD has that covered too. Just attach the included guitar strap and handgrip (with the pitchbend wheel and a pitch-modulation trigger), and take your performance to the next level.

Modulate to the MAX

The noise generator can also be used as modulation source to create distortion-like effects, which will send your solo soaring into the stratosphere. Glide (portamento) lets you sweep seamlessly over time from one note to the next, creating smooth-as-silk transitions that few other instruments can emulate. MS-1 MK II-RD’s Bender is also assignable to the VCO, VCF, and pitch-mod wheel on attachable handgrip. You can even modulate the pulse wave via the LFO or envelope, or manually.

Controls and Connectivity

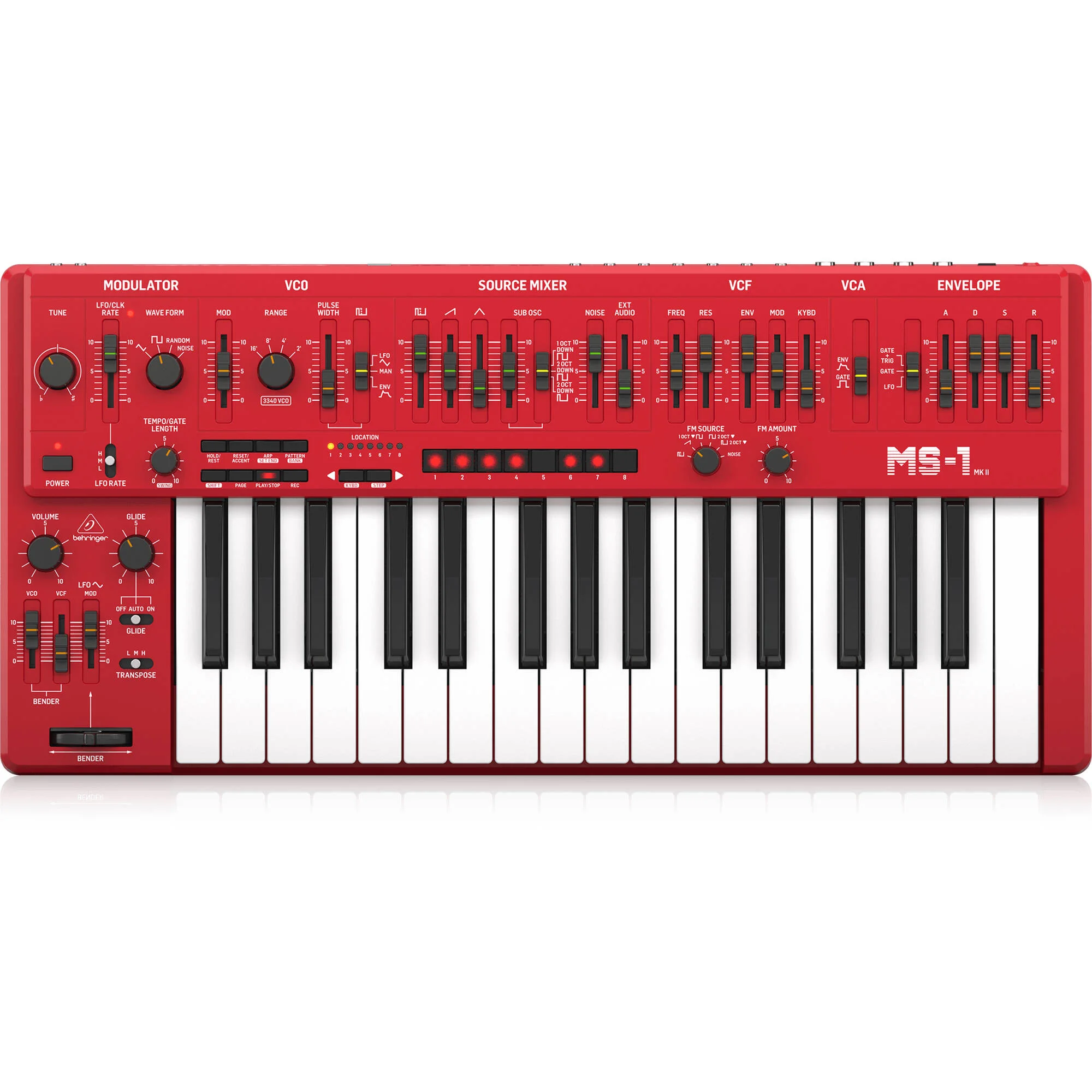

• For those who want the numbers, MS-1 MK II-RD has 57 knobs, faders, and switches, all laid out in a highly intuitive format that puts the joy back into your music creation.

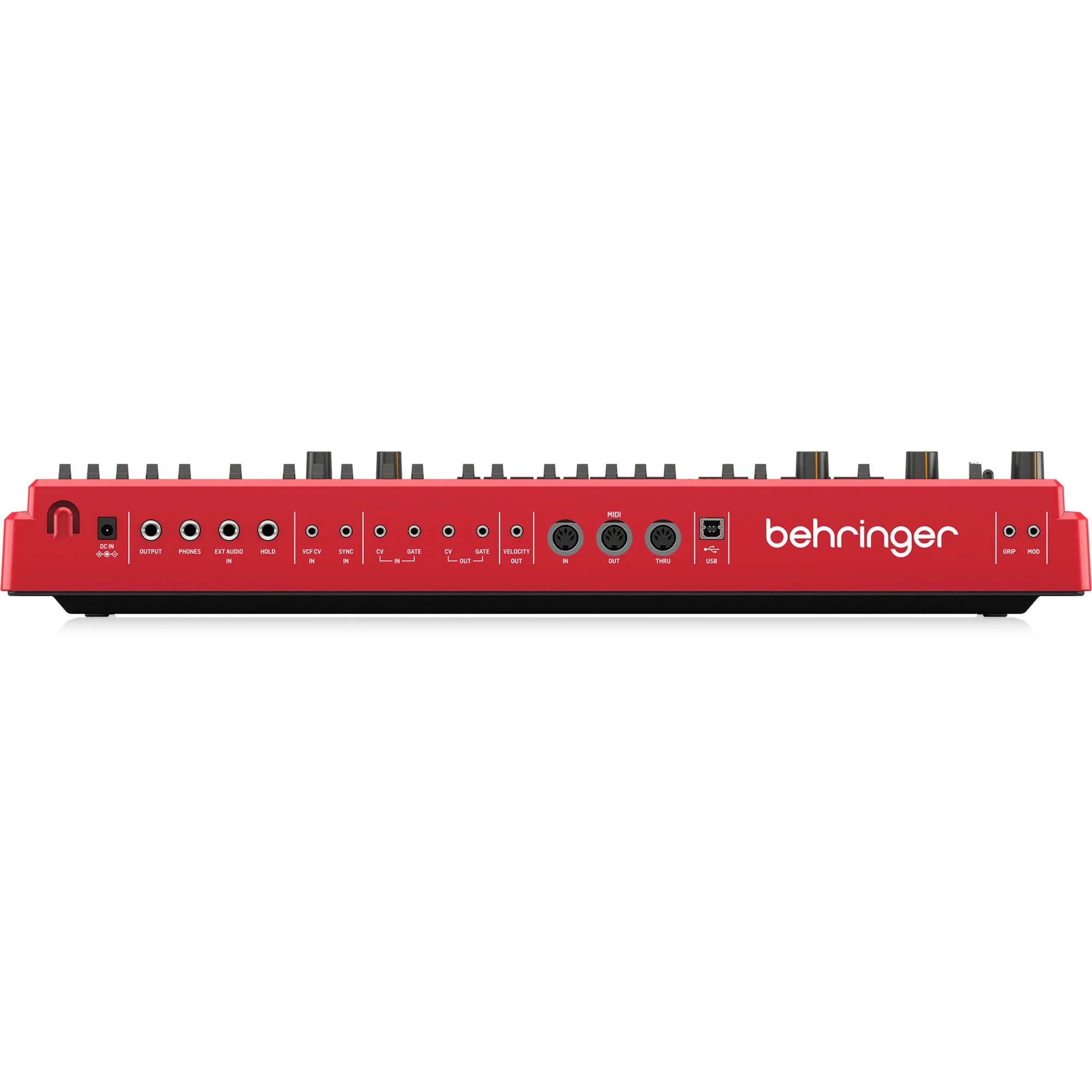

• Input and output connections include: MIDI I/O and Thru over USB/MIDI DIN, Velocity Out, CV, Gate, External Clock In, VCF CV In, Hold, External Audio, Phones, and main Output.
