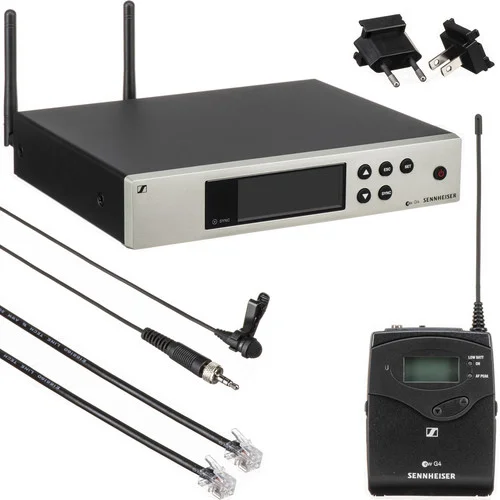

Sennheiser EW 100 G4-ME2 Wireless Omni Lavalier Microphone System

The Sennheiser EW 100 G4-ME2 is an easy-to-set-up rackmount wireless lavalier microphone system that brings high-quality, reliable audio to presenters, clergy, lecturers, and performers working in business and educational settings, houses-of-worship, theaters, or on musical stages.

  • The EW 100 G4-ME2 features a true diversity, half-rack receiver housed in a rugged, full-metal chassis.
  • The receiver’s auto-scan function searches a wide 46 MHz UHF tuning range with 1840 selectable frequencies available, seeking out a clean, interference-free channel for your audio transmission.
  • This system comes with an ME 2-II omnidirectional lavalier microphone optimized for speech intelligibility.
  • The bodypack transmitter provides up to 8 hours of operation on two AA batteries, with a fixed 30mW RF power output and a transmission range up to 330′.
  • Up to 12 wireless mics can operate simultaneously in the same space, with the receivers linked together for fast, multi-channel frequency setup.
  • The EW 100 G4-ME2 is backward-compatible with previous evolution systems.
  • You can mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters. It is also compatible with EW 300/500 systems.

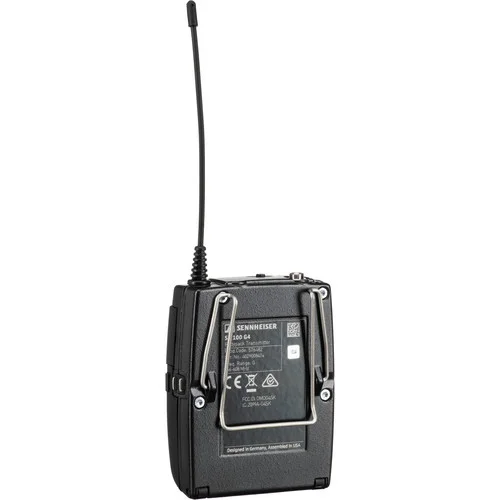

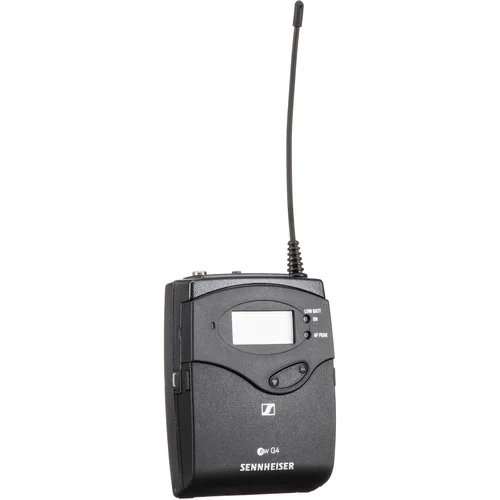

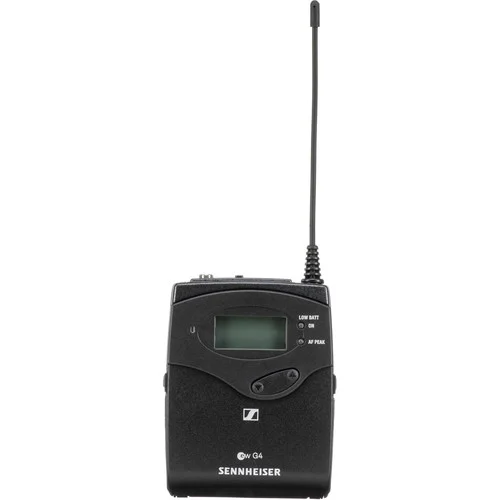

Lav Mic and Bodypack Transmitter for Hands-Free Presentations

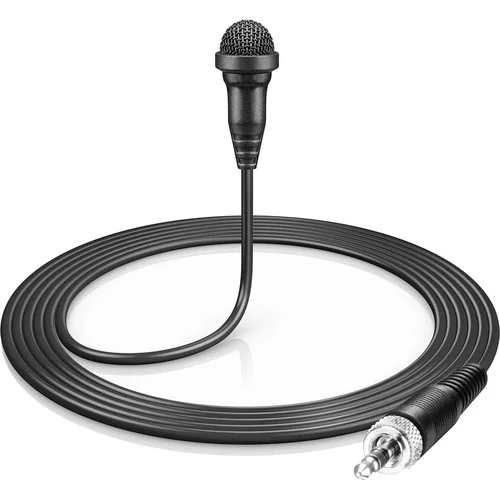

  • The ME 2-II lavalier receiver includes a generous omnidirectional pickup design for reliably present discourse, in any event, when the ability’s head is gotten some distance from the mic.

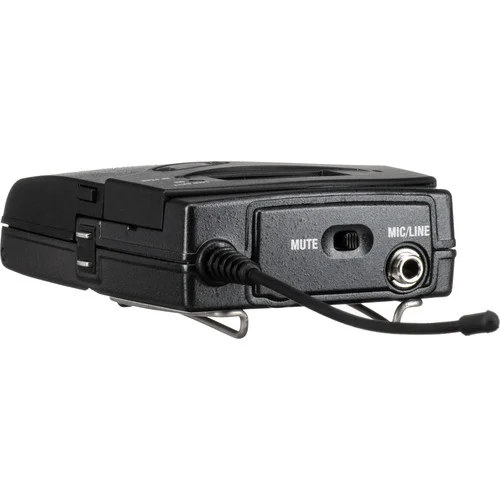

  • The lav connects to the locking 3.5mm association on the smaller SK 100 G4 bodypack transmitter. The movable info affectability on the transmitter obliges mic levels extending from blasting voices to calm discourse, and even line-level sound.
  • The rough, all-metal transmitter includes a programmable quiet capacity and can be bolted out to forestall incidental changes during an exhibition.
  • An illuminated LCD shows fundamental data and gives quick menu get to.
  • The transmitter synchronizes to the collector by means of infrared with a speedy push on the Sync button.
  • The SK 100 G4 is controlled by means of two AA batteries or a battery-powered BA 2015 Accupack battery (accessible independently).
  • Side contacts take into account energizing the Accupack without expelling it from the transmitter requires the L 2015 snappy charging unit (accessible independently).

Easy-to-Operate Receiver with True-Diversity Reception

  • The strong, metal EM 100 recipient offers a high-complexity, high contrast LCD.
  • The presentation utilizes a smoothed out menu framework with a devoted Escape button for brisk menu route and shows battery status of the related transmitter.
  • The framework highlights 20 repaired recurrence keeps money with to 12 perfect recurrence presets and 1 client manage an account with up to 12 client programmable frequencies.
  • To forestall impedance, the EM 100 recipient’s actual assorted variety gathering thinks about approaching signs on two free collector circuits to guarantee ideal RF quality.
  • To guarantee completely clear sound, Sennheiser’s exclusive HDX compander innovation amplifies the receiver’s sign to-clamor proportion, while maintaining a strategic distance from RF commotion.
  • The inherent equalizer empowers you to change the recurrence reaction of the yield signal; you can decrease the bass range and lift the treble range.
  • The recipient likewise offers a customizable yield level scope of 48 dB to coordinate the sound contribution of your blending board or PA system. Musicians will welcome the implicit guitar tuner.
  • The back board houses a reasonable XLR yield just as an uneven 1/4″ yield.
  • A pack is incorporated for rackmount establishment. The unit accompanies an all inclusive force gracefully and EU, US, UK, Korea, Australia, and China connectors.



Weight6.15 lbs
Dimensions16.15 × 12.7 × 3.4 in
Brands

Sennheiser EW 100 G4-ME2 Specs

Key Specs
Wireless Technology
Analog UHF
Included Transmitters
1x Bodypack
Diversity
True Diversity
Max Operating Range
330′ / 100.6 m (Line of Sight)
Receiver Type
Tabletop
Microphone Type
Lavalier
Polar Pattern
Omnidirectional
System
Wireless Technology
Analog UHF
Number of RF Channel Frequencies
1680
Included Transmitters
1x Bodypack
Diversity
True Diversity
RF Frequency Band
A: 516 to 558 MHz
RF Bandwidth
42 MHz
Frequency Step Size
25 kHz
Max Operating Range
330′ / 100.6 m (Line of Sight)
Max Transmitters per Band
20
Deviation
±24 kHz (Peak)
Modulation
Wideband FM
Receiver
Receiver Type
Tabletop
Mounting Options
Rackmount (with Included Hardware)
Rackmount Size
1 RU (1/2 Rack)
Antenna
2x Rod, Detachable (Rear-Mount)
Number of Audio Channels
1
Audio I/O
1x XLR 3-Pin Male Balanced Output
1x 1/4″ TRS Female Unbalanced Output
Gain Range
48 dB (3 dB Steps)
Audio Output Level
XLR Output:
+18 dBu (Balanced)
1/4″ Output:
+12 dBu (Unbalanced)
Network I/O
2x RJ10
Network Protocols
Manual IP
Squelch
Adjustable, 5 to 25 dBμV
Adjacent Channel Isolation
>65 dB
Power Requirements
AC/DC Power Adapter
AC/DC Power Adapter
12 VDC at 300 mA (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz at 0.2 A
Display & Indicators
1x Backlit LCD (AF Level, Channel, Frequency, Mute, RF Level, Transmitter Battery Status)
Housing
Metal
Operating Temperature
14 to 131°F / -10 to 55°C
Dimensions
8.3 x 1.7 x 7.5″ / 212 x 43 x 190 mm
Weight
2.2 lb / 980 g
Transmitter
Transmitter Type
Bodypack
RF Output Power
30 mW
Audio I/O
1x 1/8″ / 3.5 mm TRS Female Input (Locking)
Muting
Mute Switch
Audio Input Level
3 V RMS
Gain Range
60 dB (3 dB Steps)
Frequency Response
80 Hz to 18 kHz (Mic)
25 Hz to 18 kHz (Line)
Sync Method
IR
Antenna
1x Flexible Whip, Fixed (Beltpack)
Power Requirements
Battery
Battery Type
2x AA (Included)
1x Sennheiser Battery Pack (Not Included, Replaceable)
Approx. Battery Life
8 Hours (Alkaline)
Display & Indicators
1x Backlit LCD (Audio Level, Battery Status, Channel, Group, Mute, Signal Strength)
Housing
Metal
Operating Temperature
14 to 131°F / -10 to 55°C
Dimensions
2.5 x 3.2 x 0.9″ / 64 x 82 x 24 mm
Weight
5.6 oz / 160 g (with Batteries)
Microphone
Microphone Type
Lavalier
Color
Black
Sound Field
Mono
Capsule
Electret Condenser
Polar Pattern
Omnidirectional
Frequency Range
50 Hz to 18 kHz
Equivalent Noise Level
36 dB
Maximum SPL
130 dB SPL Peak
Sensitivity
20 mV/Pa
Output Connector
1x 1/8″ / 3.5 mm TRS Male Unbalanced (Locking)
Cable Length
5.25′ / 1.6 m
Operating Voltage
7.5 V
Diameter
0.41″ / 10.5 mm
Packaging Info
Package Weight
6.15 lb
Box Dimensions (LxWxH)
16.15 x 12.7 x 3.4″
