OSEE GoStream Duet SDI/HDMI/NDI|HX Live Stream Video Mixer/Switcher/Recorder


Key Features
  • Supports up to 1080p60 Video
  • Four HDMI, Four SDI, One UVC/USB-C Input
  • Built-In NDI|HX Streaming
  • Two HDMI and One USB-C Output
  • Stream to Three Platforms Simultaneously
  • Nine Effects Such as Chroma, PIP, DIP
  • Two Mic Inputs, Embedded HDMI/SDI Audio
  • Record to SD Card Slot or External SSD
  • Convert HDMI/SDI Video Sources
  • Eight Custom Macro Presets

Call for Price

OSEE GoStream Duet Overview

OSEE GoStream Duet SDI/HDMI/NDI|HX Live Stream Video Mixer/Switcher/Recorder

The OSEE GoStream Duet SDI/HDMI/NDI|HX Live Stream Video Mixer/Switcher/Recorder allows you to set up your livestreams from any location utilizing a range of HDMI, USB, or SDI equipment. With SDI, HDMI, USB-C, and NDI|HX connectivity, the portable Duet can be used with a wide range of cameras, media players, and video equipment. Four HDMI inputs, four SDI inputs, one Ethernet NDI input, and one USB-C input that interfaces with two HDMI outputs and one USB-C output are all features of the switcher.

Both the input and output ports support up to 1080p60 video. An SD card slot allows for direct recording and playback to a connected monitor without requiring a separate PC, and the USB-C output allows you to record to external SSD media. Live streaming is available via RTMP and IP simultaneously to up to three platforms such as YouTube or Twitch, and NDI|HX streaming is also available with the latest firmware.

Streamline Your Livestream Production

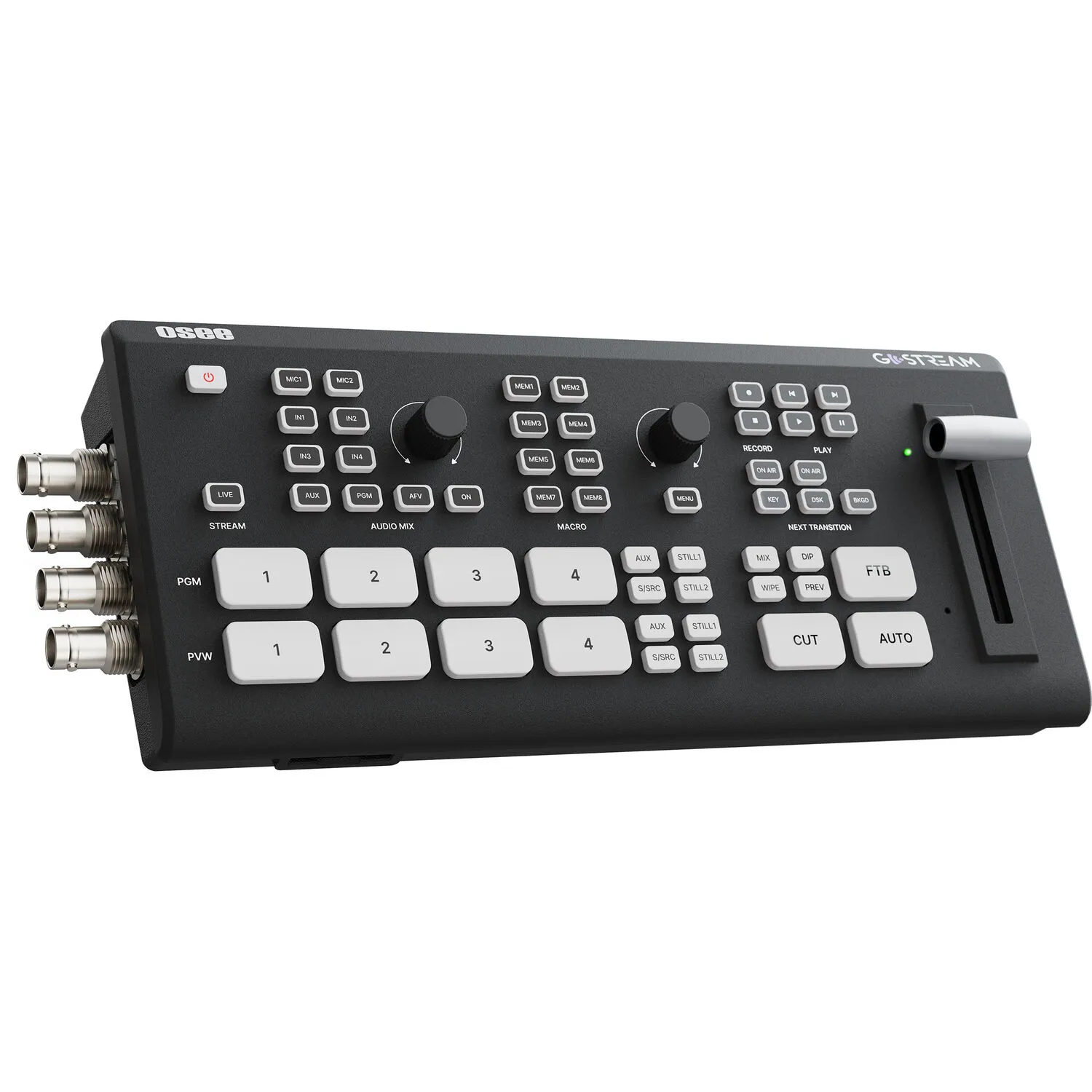

The GoStream Duet features a comprehensive, tactile control panel with numerous buttons, PVW and PGM select buttons, knobs, and a fader. It also features recording to SD card and external USB SSD, which also support the playback function, reducing the number of required devices needed to facilitate your livestream.

Supports Three Simultaneous Streams

Livestream to three different platforms such as YouTube or Twitch simultaneously using the integrated Ethernet port on the GoStream. Connect a USB webcam to the USB-C input and output that feed via OBS, VMix, or Zoom using the USB-C output port.

Output up to Five Channels

Select up to five video input sources from the SD card, SSD, HDMI, SDI, USB, or NDI|HX inputs, such as cameras, streams, switchers, and UVC sources, and output them to a monitor or projector for simultaneous presentation, or connect an optional Stream Deck or built-in WebGUI.

Built-In Audio Mixer

An internal audio mixer supports seven channels of embedded and input audio sources, with audio sources coming from the SDI and HDMI inputs, one from the AUX input, and two from dedicated 3.5mm TRS microphone ports. Mix the inputs into the program output using the On/Off or AFV controls on the switcher and adjust parameters like gain, balance, and fade. Monitor audio from a selected source using the headphone input.

Utilize up to Nine Effects

The GoStream Duet supports nine special effects including Super Source, upstream keyers, downstream keyers, Chroma keyers, transitions, and a still image generator. Craft visually appealing, multi-layered effects tailored to your production. Use the eight Macro Memories to record specific composition functions and set them as custom presets for efficient recall.

OSEE GOSTREAM DUET Specs

Weight 2.675 lbs
Dimensions 12.1 × 5.9 × 3.9 in
Available M/E Layers
6 M/E
Effect Types
Transition, Chroma Key, Luma Key
Graphics Memory
32 Images
Downstream Keys
1x Chroma, Luma
Generators
5x Color
2x Pattern
Audio Mixing
8-Channel Mixing
Processing
Switching Type
Pushbutton, Software
Color Processing
12-Bit 4:2:2 YCbCr
8-Bit 4:4:4 RGB
Input
Number of Video Input Sources
12
Video Inputs
4x HDMI Female
4x BNC (3G-SDI) Female
1x USB-C (UVC) Female
1x RJ45 (HX/NDI) Female
Input Video Format
HDMI (8/12-Bit 4:4:4/4:2:2 RGB, YCC)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
Audio Inputs
2x 1/8″ / 3.5 mm TRS Mic
Input Audio Format
Analog
Embedded Audio Input
HDMI
SDI
RJ45
Output
Video Output Channels
5
Video Outputs
2x HDMI
1x USB-C
Output Video Format
HDMI (8/12-Bit 4:4:4/4:2:2 RGB, YCC)
1080p at 24/25/30/50/60 fps
Audio Outputs
1x 1/8″ / 3.5 mm TRS Stereo
Embedded Audio Output
HDMI
Multiview Output
9-Way Multiview via HDMI
Monitor Output
1x HDMI
Connectivity
Other I/O
1x RJ45 LAN, NDI Input/Output
IP Video
1920 x 1080 at 24p, 25p, 30p, 50p, 60p Encoding
Transport Protocols
RTMP
Simultaneous Streams
3 Streams
Compatible Services
Facebook Live, Instagram, TikToK, Twitch, YouTube Live
Recording Media
1x SD (Unspecified Type), USB-A 3.0 / 3.1/3.2 Gen 1
Recording Modes
1920 x 1080p at 24/25/30/50/60 fps (70 Mb/s H.264/AVC)
Hardware
Processor
Not Specified by Manufacturer
Wi-Fi
No
Bluetooth
No
Power I/O
1x Barrel (12 VDC ) Input
Power Consumption
Device: 12 VDC (14 W)
General
Operating Conditions
41 to 104°F / 5 to 40°C
Dimensions
9.9 x 4.2 x 1.9″ / 252.4 x 107.3 x 49.3 mm
Weight
1.1 lb / 500 g
Packaging Info
Package Weight
2.675 lb
Box Dimensions (LxWxH)
12.1 x 5.9 x 3.9″

In The Box

    • OSEE GoStream Duet SDI/HDMI/NDI|HX Live Stream Video Mixer/Switcher/Recorder
    • Power Adapter
