BLACKMAGIC DESIGN
Availability:

In stock

Add to Wishlist
Compare

SKU: CONVMSDIDA

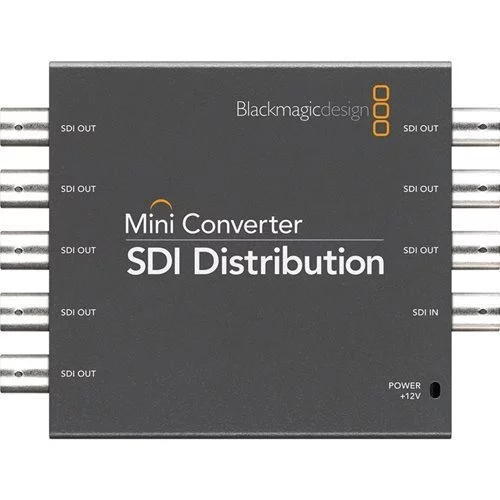

The Blackmagic Design Mini Converter SDI Distribution is a 1×8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals. The Mini Converter auto-detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI video input.

Key Features
  • (1) SDI Input, (8) SDI Outputs
  • 3G/HD/SD-SDI Auto-Switching Input
  • Re-Clocked Outputs
  • Ancillary Data & Embedded Audio
  • 1080p & 2K Distribution
  • Supports ASI Signals

Compare

Blackmagic Design Mini Converter SDI Distribution

The Blackmagic Design Mini Converter SDI Distribution is a 1×8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals. The Mini Converter auto-detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI video input. This device represents an affordable way to distribute SDI signals throughout a facility or truck.

The Mini Converter SDI Distribution supports all SDI-related transmission features, including embedded audio, ancillary data, and the 3 Gb/s transmission rate that accommodates video formats up to 1080p and 2K progressive. It even handles ASI signals – asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds.



SKU: CONVMSDIDA Categories: , , Tags: , , , ,
Weight1 lbs
Dimensions15 × 15 × 15 in
Brands

Blackmagic Design Mini Converter Specs

Inputs1x SDI: Detects & auto-switches between SD-, HD-, and 3G-SDI
Outputs8x SDI: Automatically match the SDI video input
Re-clockingYes
Supported FormatsNTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p, and 2K PsF
SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M
Video Sampling4:2:2 and 4:4:4
Audio SamplingTelevision standard sample rate of 48 kHz and 24-bit
Color Precision4:2:2 and 4:4:4
Color SpaceYUV and RGB
ASI SupportYes
Power Supply12V universal power supply included
Power Consumption110V: 40mA
220V: 20mA
Voltage Range12-30V

Packaging Info

Package Weight1.2 lb
Box Dimensions (LxWxH)5.6 x 5.4 x 2.6″

In The Box

  • Blackmagic Design Mini Converter SDI Distribution
  • 12V Universal Power Supply with International Socket Adapters for All Countries
  • 1 Year Limited International  Warranty
