TASCAM SERIES 102i USB Audio/MIDI Interface

Tascam
Availability:

In stock


Key Features
  • 10 Inputs and 2 Outputs
  • 2 Low-Noise Ultra-HDDA Mic Preamplifiers
  • Optical S/MUX for 8-Channel Expansion
  • Two 1/4″ Outputs + Dual Headphones Out
  • High Speed USB 2.0 Computer Interface
  • 24-bit / 192 kHz
  • Reverb, Comp, 4-Band EQ, Phase Invert
  • Flexible DSP Input/Output Mixer
  • Standard MIDI I/O Connectors
  • Steinberg and IK Multimedia Software

Coming Soon

This product is currently out of stock and unavailable.

TASCAM SERIES 102i USB Audio/MIDI Interface Overview

The TASCAM SERIES 102i is a professional-quality mid-grade audio/MIDI interface featuring internal and bundled effects processing, internal mixing, external software control, and more, for studio, home, and live recording. The 102i sports a pair of classic TASCAM Ultra-HDDA (High Definition Discrete Amplifier) microphone preamps, which ensure a natural, transparent tone, with low noise. The recording and playback engine deliver high-definition 24-bit / 192 kHz resolution and solid stability.

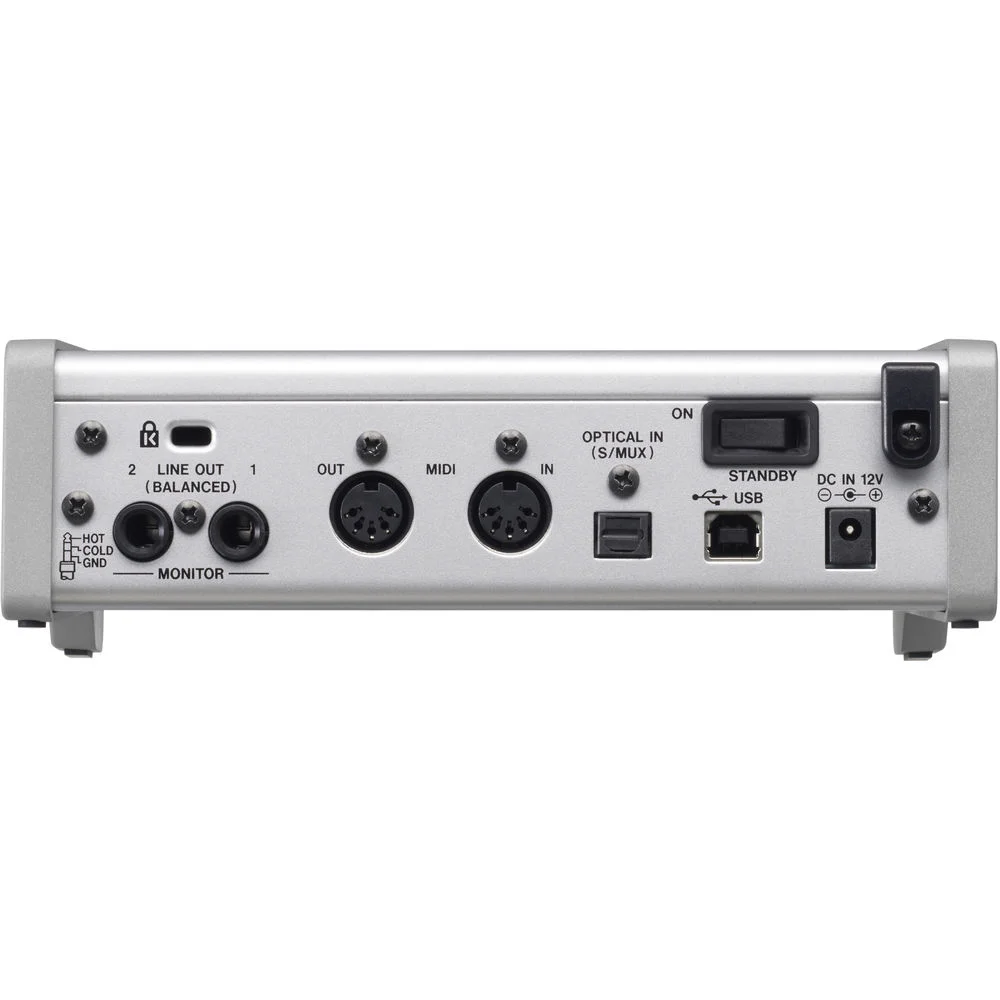

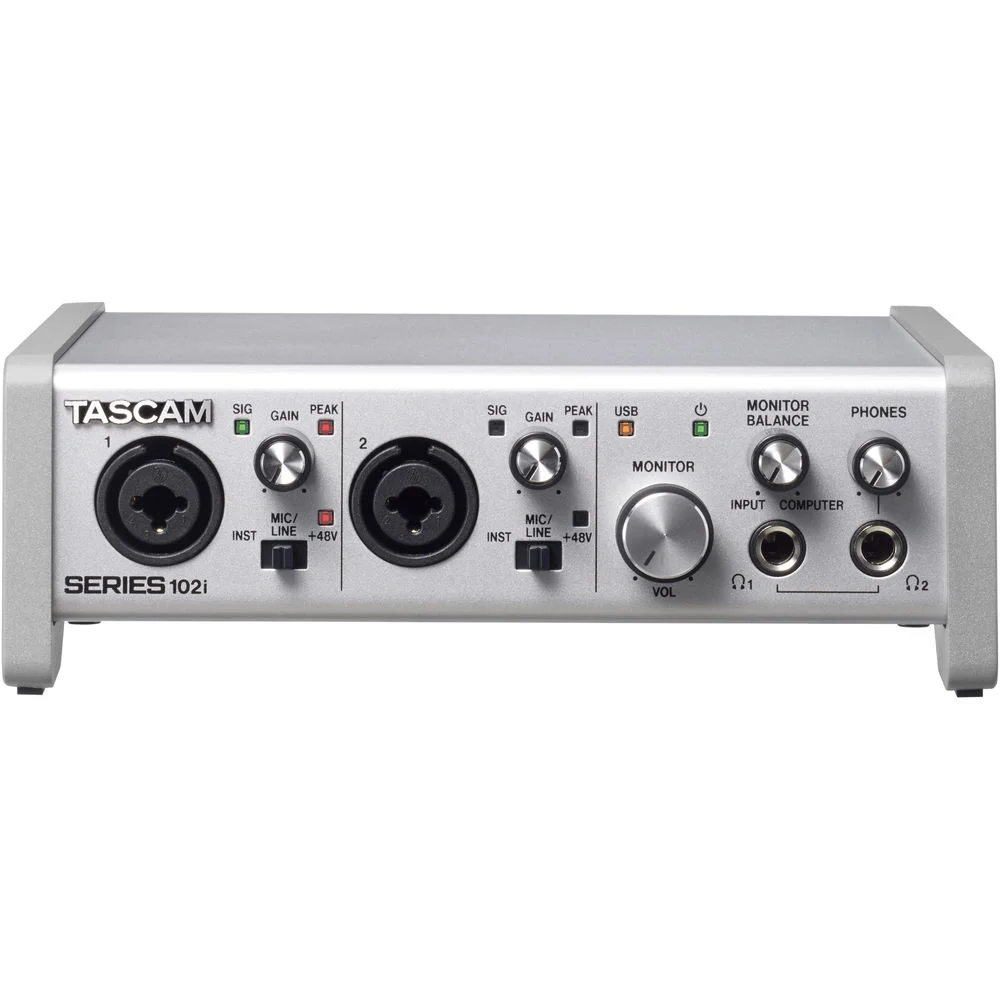

The front panel offers two combo XLR-1/4″ inputs (switchable between instrument/Hi-Z and mic/line selections), independent +48V phantom power, as well as dual headphone outputs. The rear panel offers a pair of 1/4″ TRS outputs for monitoring, a set of 5-pin DIN MIDI inputs and outputs, and a USB 2.0 Type-B computer connector. If two inputs aren’t enough, the TASCAM SERIES 102i offers an S/MUX optical (ADAT) input, which provides an additional eight channels of expansion.

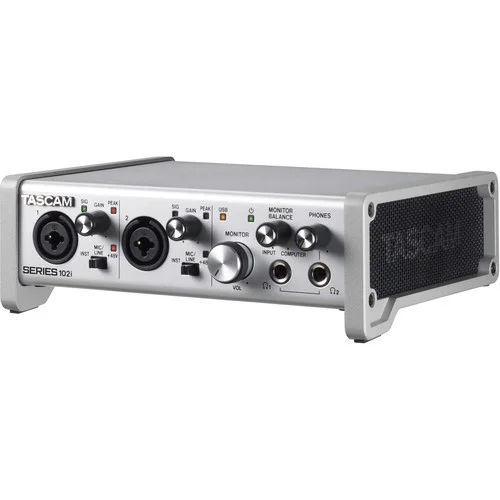

The angled tabletop design features large, easy-to-grab knobs including input gain, monitor volume, headphones level, and a handy monitor balance control that allows you to blend the live inputs with computer playback for zero-latency monitoring. The TASCAM SERIES 102i includes a built-in DSP input and output mixer with integrated digital reverb, compression, phase invert, and a 4-band EQ on each channel. Control software is available for matrix mixing and effects processing, which offers the ability to route any audio input (analog, optical, USB) to any audio output.

The TASCAM SERIES 102i supports tablets and other devices and comes bundled with Steinberg Cubase LE for Windows and Mac, and Steinberg Cubasis LE for iPad. Additionally, the TASCAM SERIES 102i includes software from IK Multimedia including AmpliTube guitar and bass modeling and effects, as well as T-RackS mastering software. Both AmpliTube and T-RackS are offered in standalone and plug-in versions.

TASCAM SERIES 102i Features

  • 10-In/2-Out USB Audio/MIDI Interface
  • Two XLR/TRS combo mic/line/instrument inputs
  • Two transparent, natural-sounding, ultra-low noise TASCAM Ultra-HDDA mic preampliers
  • One optical S/MUX expansion port that accepts up to 8 channels of audio input (10 total inputs)
  • Two 1/4″ analog outputs
  • Dual headphone outputs
  • Built-In Effects: reverb, compressor, 4-band EQ, phase invert
  • Flexible DSP input/output mixer controlled via free TASCAM Control software
  • Software control of faders, routing, effects, and phase invert
  • Up to 24-bit / 192 kHz sample resolution
  • MIDI interface with standard 5-pin DIN I/O connectors
  • USB 2.0 connection and custom USB driver with high stability
  • Easy-to-understand operation
  • Includes
    • Steinberg DAW software
    • IK Multimedia AmpliTube guitar effects/modeling software (standalone and plug-in versions)
    • IK Multimedia T-RackS Mastering software (standalone and plug-in versions)

Looking for a Verstile USB Audio Interface? Check out our USB Audio Interface available at ProAudio Pakistan for great deals.
For detailed specs and official info, visit the TASCAM SERIES 102i USB Audio Interface on Native Instruments website

SKU: SERIES102i Categories: , , Brand:

TASCAM SERIES 102i Specs

Weight 3.84 lbs
Dimensions 11.9 × 8.7 × 4 in
Brands

Key Specs

Channels of I/O
Analog / Digital:
10 Input / 2 Output at 192 kHz
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2 Preamps
Analog Audio I/O
2x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2x 1/4″ TRS Balanced Line Output
2x 1/4″ TRS Unbalanced Headphone Output

Digital Audio I/O
1x TOSLINK Optical ADAT Input (S/MUX Support)
Host Connection
1x USB-B
Power Requirements
USB Bus Power
Channels of I/O
Analog / Digital:
10 Input / 2 Output at 192 kHz
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2 Preamps
Input Level Adjustment
2x Knob
Expansion Slots
No
Signal Processing
Pad
No
High-Pass Filter
No
Solo/Mute
No
Connectivity
Analog Audio I/O
2x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2x 1/4″ TRS Balanced Line Output
2x 1/4″ TRS Unbalanced Headphone Output
Phantom Power
48 V (Selectable on Individual Inputs)
Digital Audio I/O
1x TOSLINK Optical ADAT Input (S/MUX Support)
Host Connection
1x USB-B
Host Connection Protocol
USB 2.0
Sync I/O
No
MIDI I/O
1x DIN 5-Pin Input
1x DIN 5-Pin Output
Sample Rates
Up to 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
No
Clocking
Internal:
Audio Storage & Playback
Included Software
No
Included Plug-Ins
No
Power Requirements
USB Bus Power
Packaging Info
Package Weight
3.84 lb
Box Dimensions (LxWxH)
11.9 x 8.7 x 4″

In The Box

  • TASCAM SERIES 102i USB Audio/MIDI Interface
  • USB Cable
