RME Babyface Pro FS 24-Channel USB-B Audio/MIDI Interface

RME Babyface Pro FS Overview

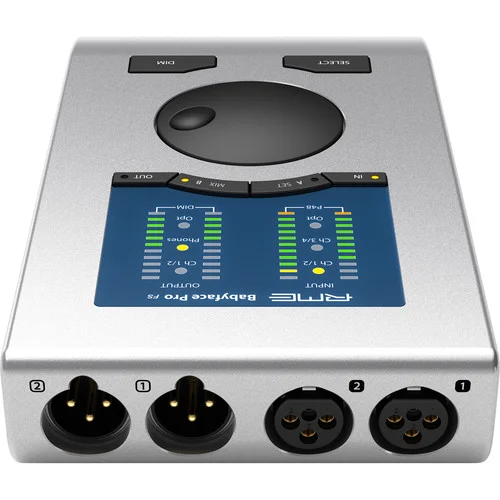

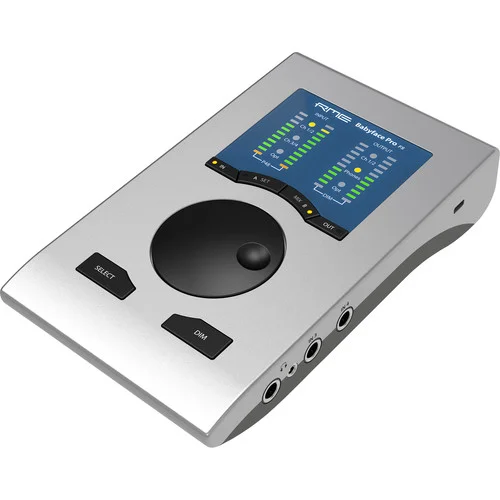

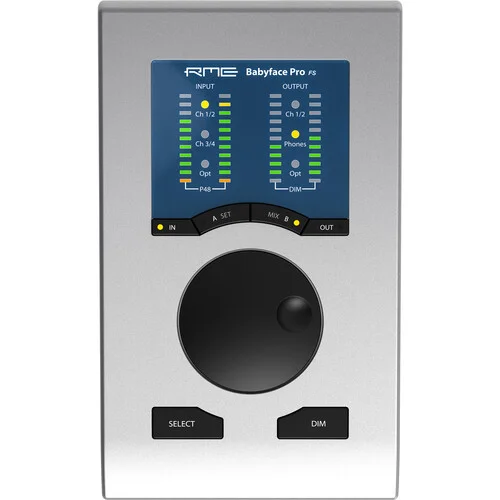

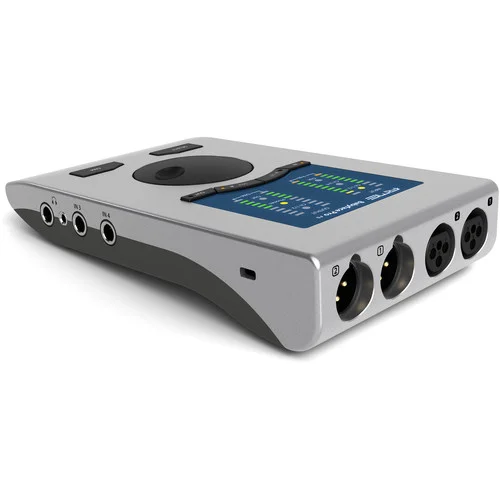

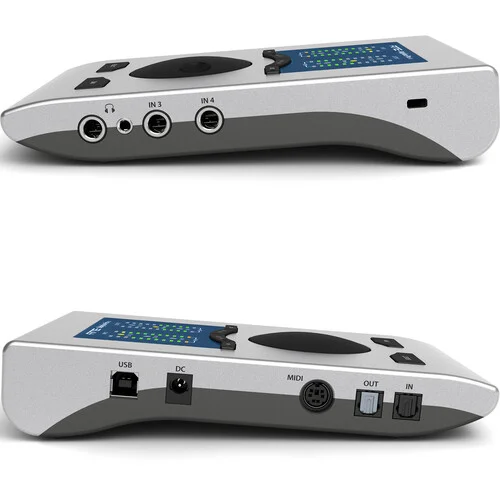

The RME Babyface Pro FS 24-Channel 192 kHz USB 2.0 Bus-Powered Audio Interface is designed for a wide variety of studio and live recording applications. Users of the original Babyface Pro will recognize the look of this portable interface, with its dedicated XLR sockets and parallel phone jacks (1/4″, 3.5mm, and TRS connections).

Familiar users will be delighted at the new improvements offered in the RME Babyface Pro FS. RME has implemented a +19/+4 dBu switch on the bottom to reduce the output level, allowing you to optimize the signal-to-noise ratio of the preamps on a case by case basis. The clocking, already high-quality, has been improved to provide ultralow jitter and jitter immunity. The 3.5mm headphone output power has risen from 70 to 90mW, and both headphone outputs sport improved THD up to 10 dB. Latency now has a typical delay of 5 samples AD and 7 samples DA, one-fifth of previous generations. These are just some of the improvements.

The RME Babyface Pro FS interface ships with the company’s TotalMix FX, a software mixer available for Windows, Mac OS X, and iOS. When using the device with an iPad, an external power adapter must be used, as the iPad alone is unable to power the interface. The mixer software allows you to use the interface in a wide variety of situations, from the simple mixing of signals to more complicated routing configurations.

The unit’s FPGA-based DSP mixer adds a flexible 3-band parametric equalizer on all inputs and outputs. Delay and reverb are also on hand. Achieving sample rates and resolutions of up to 192 kHz / 24-bit, the interface offers a professional recording solution in a compact form factor.

RME Babyface Pro FS New Features over Previous Babyface Pro

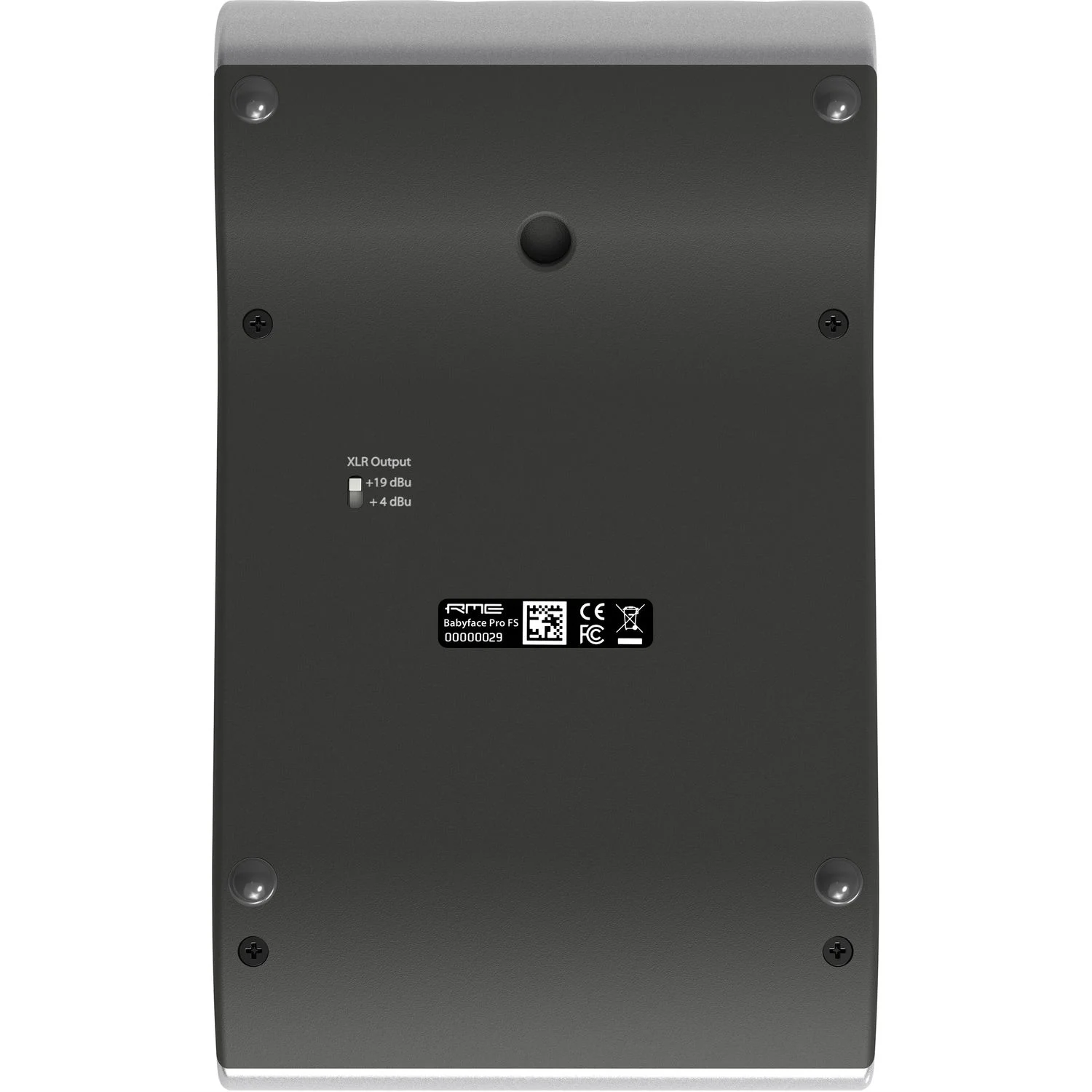

• +19/+4 dBu switch on the bottom adds a direct way to reduce the output level, improving SNR for sensitive active monitors, as well as avoiding distortion/overloads, and keeping TotalMix FX faders near 0 dB instead of high attenuations
• Full SteadyClock FS circuit for ultralow jitter and high jitter immunity
• 3.5 mm TRS phones output power rises from 70 mW to 90 mW
• THD of both phones outputs improved by up to 10 dB
• Uses same output opamps as ADI-2 Pro
• Output impedance of 3.5 mm TRS lowered from 2 to 0.1 ohm
• Mic inputs SNR improved from 112.2 to 113.7 dB
• TRS line inputs SNR improved from 114 to 116 dB RMS (120 dBA)
• THD line inputs improved by 8 dB
• Latency improved by six samples on the AD side by new ADC (5 samples AD, 7 samples DA)
• No increase in power consumption, despite new features
• K-slot for theft protection
