JBL 104-BT Reference Monitors with Bluetooth

JBL
Availability:

In stock


SKU:  104SET-BT-US

Offered here in a stylish black matte finish, the JBL 104-BT comprises a pair of monitors suitable for both consumer and critical audio referencing. They take the respected design of the One Series 104 and add Bluetooth 5.0 to the mix, so you can stream music from your favorite compatible media player straight to the speakers.

Key Features

  • Acoustically Optimized for Desktops
  • For Referencing & Casual Listening
  • Bluetooth 5.0 Streaming Input
  • Coaxial Design for Smooth Response
  • 4.5″ LF and 0.75″ HF Drivers
  • 60W Class-D Power, 30W Per Speaker
  • Low Frequency Port for Extended Lows
  • Physical Inputs: 1/4″, RCA, and 3.5mm
  • Speaker-Muting Headphone Output
  • Front-Panel Volume Control

 60,000

In stock

Compare

JBL 104-BT Compact Desktop Reference Monitors with Bluetooth

Offered here in a stylish black matte finish, the JBL 104-BT comprises a pair of monitors suitable for both consumer and critical audio referencing. They take the respected design of the One Series 104 and add Bluetooth 5.0 to the mix, so you can stream music from your favorite compatible media player straight to the speakers.

Trust the Transparency

These monitors employ a coaxial design to give you a smooth representation of the frequency spectrum, so that you have a more accurate picture of the sonic information coming your way.

Streamline Your Sessions

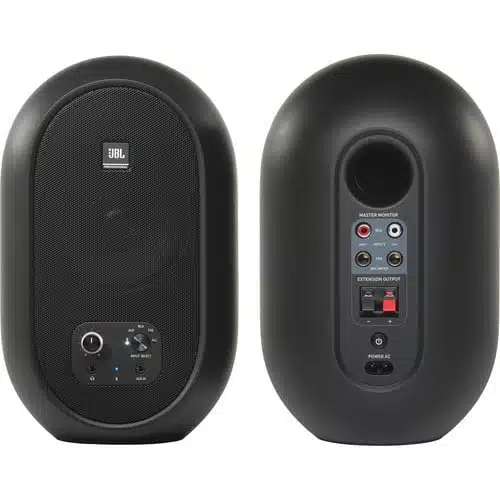

Inputs are made possible through balanced 1/4″ jacks, a 3.5mm connection for auxiliary devices, or unbalanced RCA connections. A front-panel headphone jack on the master speaker mutes the speakers and outputs signal directly to your favorite pair of cans. Included with the monitors is a 6.6′ monitor extension speaker wire, a 3.5mm-to-RCA audio cable (perfect for stereo receivers, for example), and a power cable.

Features

  • Coaxial 4.5″ LF driver and 0.75″ soft-dome HF driver
  • Reference mixes via Bluetooth 5.0 streaming
  • Integrated 60W Class-D power amplifier
  • 30 watts distributed to each speaker
  • Acoustically optimized for desktop placement
  • Front-panel input control selects among Bluetooth, Aux, RCA, and TRS
  •  in front control can combine all inputs
  • Front volume control
  • headphone jack with speaker-mute feature
Weight11.075 lbs
Dimensions13.8 × 13.2 × 8.7 in
Brands

JBL 104BT Specs

Studio Monitor
Monitor TypeActive 2-Way
EnclosureBass-Reflex
Power Rating30 W RMS per Channel
Impedance8 Ohms
DriversLF Driver: 1 x 4.5″ / 11.43 cm Coaxial Dome
HF Driver: 1 x 0.75″ / 1.91 cm Coaxial Dome
Amplification1 x Full-Range Amplifier: Class-D Rated at 60 W
Performance
Frequency Range60 Hz to 20 kHz (at -10 dB)
88 Hz to 20 kHz (at 3 dB)
Maximum Sound Pressure Level (SPL)104 dB
Signal-to-Noise Ratio75 dBA
Total Harmonic Distortion (THD)<1%
Maximum Input Level+6 dBV (Unbalanced)
+20.3 dBu (Balanced)
Dispersion120 x 80° (Horizontal x Vertical)
Protections and LimitingLimiter
EQNone
FiltersNone
Parametric EQNone
Crossover
Crossover FrequencyHigh-Pass Frequency: 1725 Hz, 6 dB/Octave Slope
Crossover TypeActive Butterworth
Connectivity
Audio I/O2 x 1/4″ TRS Balanced Female Analog Input
2 x RCA Unbalanced Female Analog Input
1 x 1/8″ / 3.5 mm TRS Unbalanced Female Analog Input
1 x 1/8″ / 3.5 mm TRS Unbalanced Female Analog Output
Power
AC Input Power100 to 240 VAC, 50/60 Hz
Power Consumption80 W (Maximum)
0.34 W (Standby)
General
Enclosure MaterialABS, Metal Grille
Dimensions (W x H x D)6 x 9.7 x 4.9″ / 15.2 x 24.6 x 12.4 cm (Each)
Weight4.5 lb / 2.0 kg (Active Speaker)
3.8 lb / 1.7 kg (Passive Speaker)
Packaging Info
Package Weight11.075 lb
Box Dimensions (LxWxH)13.8 x 13.2 x 8.7″
