Behringer Xenyx Q502USB Premium 5-Input 2-Bus Mixer

BEHRINGER
Availability:

Out of stock

Add to Wishlist
Compare

SKU:  Q502USB

The Behringer XENYX Q502USB is a mixer that offers clear and natural sound in a compact and portable format.

Key Features

  • One XENYX Mic Preamp, 15V Phantom
  • Two Stereo Line Inputs
  • Built-In Stereo USB Audio Interface
  • Compact and Portable Design

₨ 32,500

Out of stock

Compare

Behringer Xenyx Q502USB Premium 5-Input 2-Bus Mixer

The Behringer XENYX Q502USB is a mixer that offers clear and natural sound in a compact and portable format. With five inputs, one high-quality XENYX mic preamp, and a USB interface, this mixer is ideal for a variety of mix and recording applications, from small-stage gigs to home-studios, limited-size corporate events, and more.

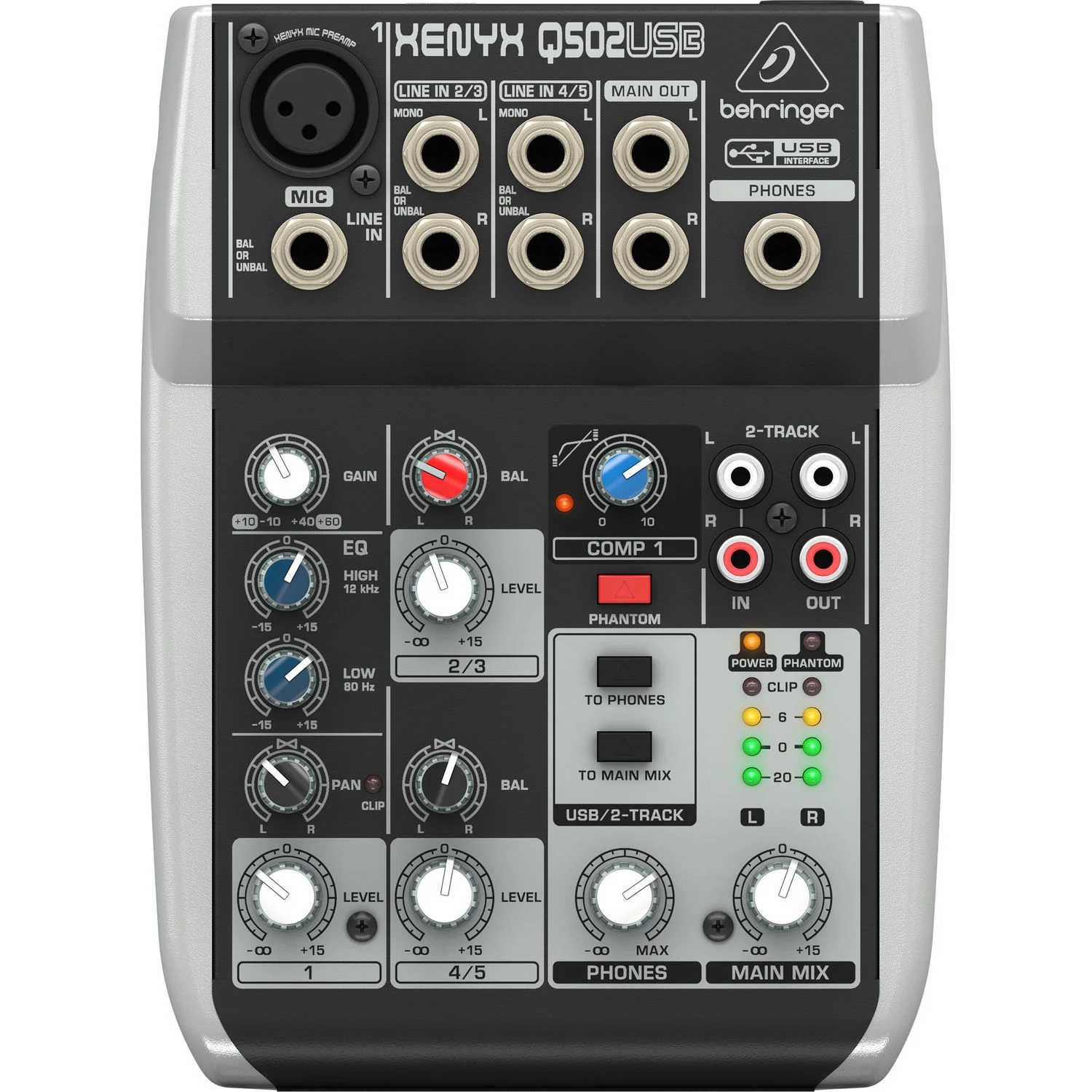

The Behringer Xenyx Q502USB is quick to set up and operate with all connections and controls easily reachable on the top of the unit. The first input channel features a XENYX mic preamp, which delivers 130 dB of dynamic range, low-distortion signal, and a wide frequency response extending from 10 Hz to 200 kHz. The 15V phantom power allows you to plug in a dynamic or condenser microphone.

The channel also offers a 1/4″ input for a line-level signal, a British-style, 2-band EQ to provide warm and musical tone corrections for your vocals and instruments, and an easy-to-use, “one-knob” compressor to gently smooth out signal peaks for punchy and present bass lines, drums, and vocals. A gain knob lets you adjust the input level and a clip LED alerts you when the signal is too high and about to distort. Dedicated knobs set the mix level and pan position. The two sets of stereo inputs each feature pan (or balance) and level controls.

The XENYX Q502USB is equipped with a stereo USB audio interface for recording your mix directly to a computer. Along with it comes the recording and editing software needed to turn your computer system into a home recording studio. The 2-Track section provides an easy way to connect an external 2-track recorder and/or playback device. The 2-Track inputs are assignable to either the main mix or to the phone’s outputs. Dedicated knobs adjust the volume for the main mix and phones outputs.

Key Features

  • One high-quality, XENYX microphone preamp with 130 dB of dynamic range, for dynamic and condenser microphones
  • 15V phantom power with on/off switch
  • Mic channel with low-noise and distortion-free circuitry for natural sound reproduction
  • One balanced mono line input
  • Two balanced stereo pairs of line inputs
  • Built-in stereo USB audio interface to record directly to your computer
  • Free audio recording, editing, and podcasting software, plus 150 instruments/effect plug-ins downloadable at behringer.com
  • Neo-classic, British-style 2-band EQ on the mono channel for warm and musical sound
  • Studio-grade compressor with super-easy “one-knob” functionality and control LED
  • Main mix outputs plus headphones and stereo 2-Track outputs
  • 2-Track inputs assignable to main mix or control room/phones outputs
  • Designed and engineered in Germany
SKU: Q502USB Categories: , , , , , Tags: , , , , , , , , , ,
Weight3.6 lbs
Dimensions12 × 9.5 × 3.6 in
Brands

Behringer Q502USB Specs

Microphone Input1 x XLR, Balanced, Discrete Input Circuit

XENYX Microphone Preamp with 15 V Phantom Power (On/Off Switchable)

Microphone EIN(EIN 20 Hz to 20 kHz)

At 0 Ohm Source Resistance: -134 dB / -136 dB A-Weighted
At 50 Ohms Source Resistance: -131 dB / -133 dB A-Weighted
At 150 Ohms Source Resistance: -129 dB / -131 dB A-Weighted

Frequency Response: <10 Hz to 150 kHz (-1 dB)
Frequency Response: <10 Hz to 200 kHz (-3 dB)

Maximum Input Level: +12 dBu at +10 dB Gain

Impedance: 1.4 kOhms, Balanced

Signal-to-Noise Ratio: 110 dB A-Weighted (0 dBu In at +22 dB Gain)

Distortion (THD+N): 0.006% / 0.005% A-Weighted

Line Input1 x 1/4″ / 6.3 mm TRS, Balanced

Impedance: 20 kOhms Balanced, 10 kOhms Unbalanced

Gain Range: -10 to +40 dB

Maximum Input Level: +22 dBu at 0 dB Gain

Stereo Line Inputs2 x Pairs of 1/4″ / 6.3 mm TRS, Balanced

Impedance: 20 kOhms Balanced,10 kOhms Unbalanced

Gain Range: -20 dB TO +20 dB

Maximum Input Level: +22 dBu

2-Track I/OInput:
1 x Stereo Pair RCA, Unbalanced 2-Track Inputs
Impedance: 18 kOhms
Maximum Input Level: +22 dBuOutput:
1 x Pair RCA, Stereo, Unbalanced 2-Track Outputs
Impedance: 1 kOhm
Maximum Input Level: +22 dBu
EqualizationLow: 80 Hz (±15 dB) High: 12 kHz (±15 dB)
Main Outputs2 x 1/4″ / 6.3 mm TRS, Balanced

Impedance: 120 Ohms, Balanced

Maximum Output Level: +22 dBu

Headphone Output1 x 1/4″ / 6.3 mm TRS, Stereo, Unbalanced

Maximum Output Level: +21 dBu, 150 Ohms (+25 dBm)

USB InterfaceConnector: USB Type-B

Audio: Stereo I/O

Sample Rate: 48 kHz

NoiseMain Mix at -∞, Channel Fader at -∞: -105 dB / -108 dB A-weighted

Main Mix at 0 dB, Channel Fader at -∞: -93 dB / -96 dB A-weighted

Main Mix at 0 dB, Channel Fader at 0 dB: -83 dB / -85 dB A-weighted

PowerPower Adapter: 120 V, 60 Hz

Power Consumption: 13 W

Dimensions (W x D x H)5.4 x 7.2 x 1.8″ / 138 x 184 x 46 mm
Weight1.3 lb / 0.6 kg
Packaging Info
Package Weight3.6 lb
Box Dimensions (LxWxH)12 x 9.5 x 3.6″

In The Box

  • Behringer XENYX Q502USB 5-Channel USB Mixer
  • PSU3-UL Power Supply
