Avalon Design V55 Pure Class-A Dual-Mono Microphone Preamplifier with DI and Reamping

Avalon
Availability:

In stock


Key Features
  • Discrete, Pure Class-A, High-Voltage Amp
  • Microphone Dual Impedance Selector
  • 10 Megohm DI-In for Zero-Loading
  • Passive TONE-BANK for Unique Shaping
  • High Performance Reamping Transformer
  • Switched Gain Control for 2 dB Steps
  • Sealed, Silver Contact Relay for Routing
  • DC-Coupled Output Drivers Control Bass
  • Low Noise, High-Voltage Power Supply

Coming Soon

This product is currently out of stock and unavailable.

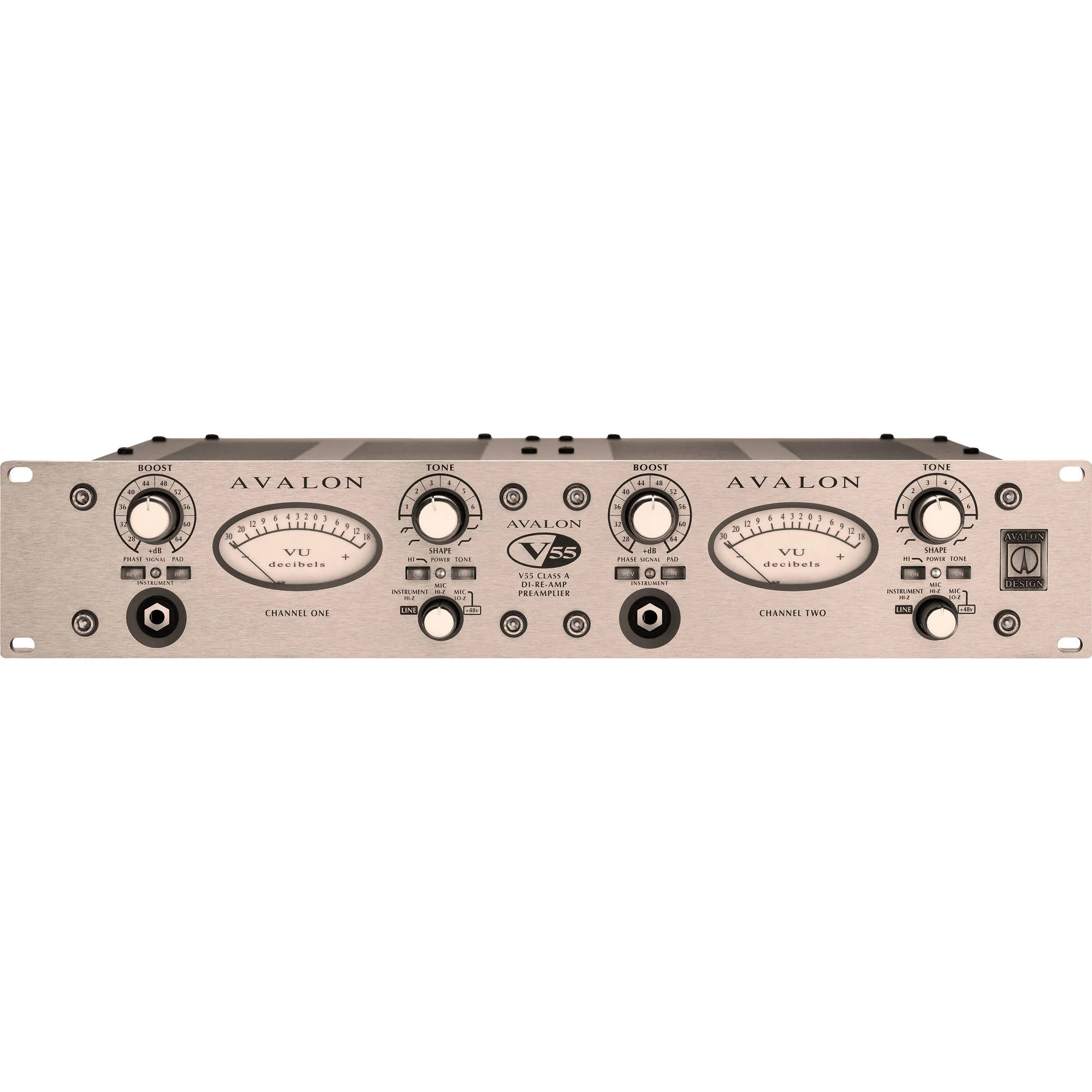

Avalon Design V55 Microphone Preamplifier Overview

The silver Avalon Design V55 Pure Class A Dual/Mono Microphone Preamplifier is a two-channel ultrahigh-performance preamplifier, instrument DI, and all-input re-amp.

Each element of the Avalon Design V55 is specifically catered to the source. Each channel has separate XLR mic, XLR line, TRS line, and 1/4″ Hi-Z inputs for optimal impedance loading. The switchable input pad features variable attenuation, depending on the input that is being used.

Rather than providing just the bare minimum of a low-cut filter, Avalon has included a selectable TONE-BANK of 10 input EQ curves. Additionally, to combat high-frequency noise from instrument pickups, a separate high-cut filter of -3 dB at 3.7 kHz can be engaged.

The versatility continues all the way to the output section, featuring balanced XLR and TRS outputs and reamp/thru outputs. To take it one step further, Avalon has included a 1/4″ headphone jack allowing you to record and perfect DI guitar or bass tracks silently, and reamp them later, concentrating only on your tone.

The Avalon Design V55 starts as a boutique microphone preamplifier, but that’s really just the beginning of what it can do. It has the versatility and feature set to serve as dual-mono analog front-end for any audio source.

Versatility and Connectivity

Each channel has dedicated inputs and outputs for any kind of analog source material. Polarity switches are also included.

Source-Specific Features

The Avalon Design V55 operation adapts to optimally handle each type of input.

10-Setting TONE-BANK

Choose from 10 different input EQ curves to keep the signal you need and eliminate what you don’t.

Reamp Capability

Reamping has quickly become a standard practice in electric guitar and bass recording. The Avalon Design V55 is one of the few high-end audio preamplifiers to offer it onboard.

Looking for a Verstile Audio and Controller? Check out our Processor available at ProAudio Pakistan for great deals.
For detailed specs and official info, visit the Avalon Design V55 on Avalon website

Avalon Design V55 Specs

Weight 24.645 lbs
Dimensions 22.9 × 18.5 × 8.4 in
Brands

Input

Inputs
2 x XLR Balanced Mic Inputs
2 x XLR Balanced Line Inputs
2 x TRS 1/4″ / 6.35 mm Balanced Line Inputs
2 x 1/4″ / 6.35 mm Unbalanced Instrument Inputs
Input Impedance
Mic: 6.6 Kilohms or 1.8 Kilohms Switchable
Line: 9 Kilohms
Hi-Z: 10 Megohms
Gain Range
Gain Switched in 2 dB Steps, ±0.2 dB
Mic Hi-Z: +20 to +60 dB
Mic Low-Z: +26 to +66 dB
Line: -2 to +38 dB
Instrument: +2 to +42 dB, (Maximum Input: 36 dB)
Input Pad Switch
Mic: -15 dB
Line: -13 dB
Instrument: -10 dB
Phantom Power
+48V Regulated, 10 mA
Output

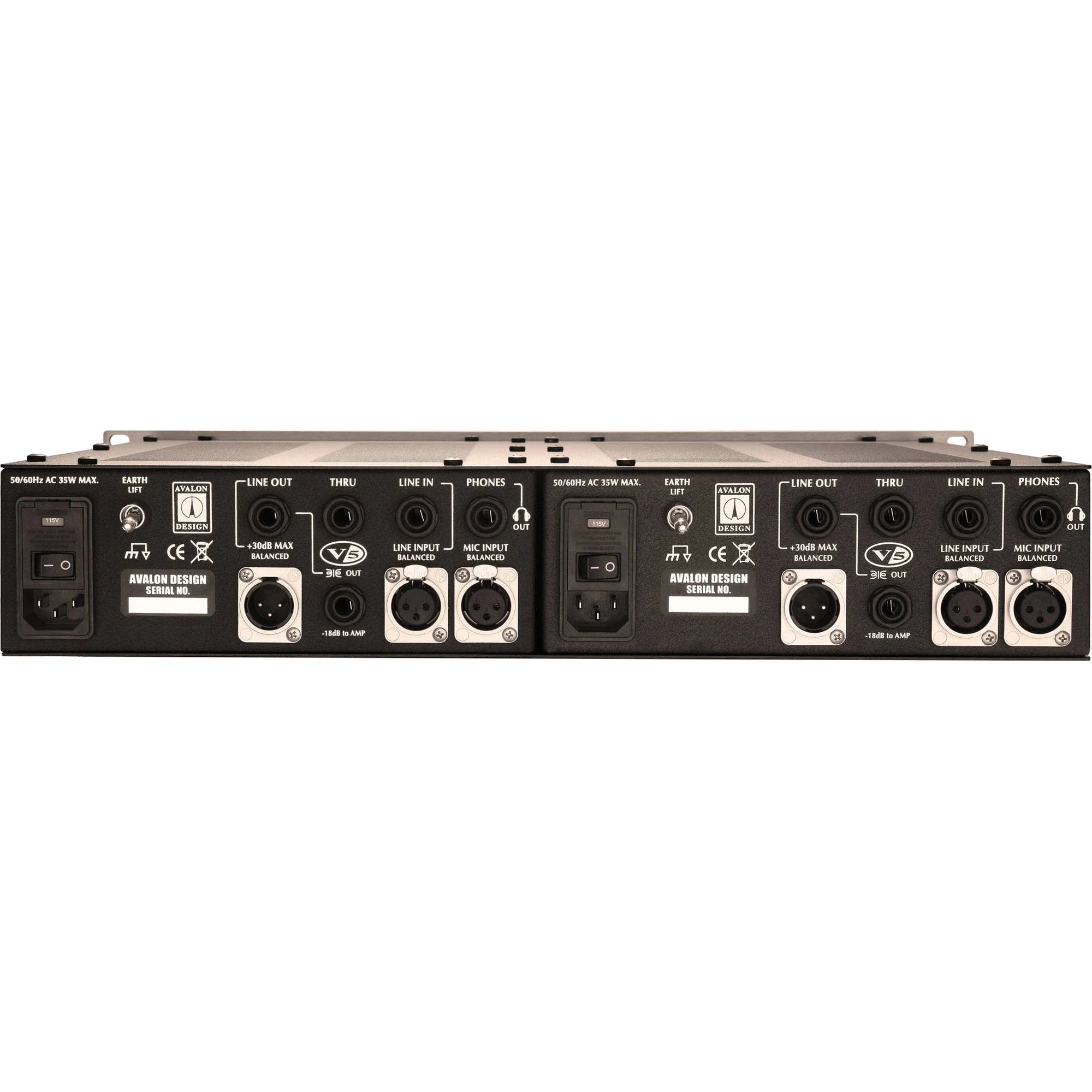

Outputs
1 x XLR Balanced Output
1 x TRS 1/4″ / 6.35 mm Balanced Output
1 x Impedance Buffered Instrument 1/4″/ 6.35 mm Thru Output
1 x Unbalanced 1/4″ / 6.35 mm Reamp Output
Headphone Output
1 x 1/4″ / 6.35 mm, 0.5 W, 600 Ohms, TRS
Output Impedance
600 Ohms
Maximum Output Level
Line: +30 dBu, DC Coupled, Balanced
Isolated Output Level: +12 dBu (Unbalanced)
Polarity
Switchable Reverse, All Outputs in Relay
Performance
VU Meter
Professional, Moving Coil, Wide Range: -33 to +18 dB
LED Indicator
LED Peak Capture:
Blue: 0 dB
Red: +20 dB
Frequency Response
Frequency Response: 5 Hz to 20 kHz (+/- 0.5 dB)
Frequency Response (Internal Band Limited): 2 Hz to 500 kHz (-3 dB)
High Cut Filter
Minimum Phase Design: 3.7 kHz at -3 dB
Noise
Noise (20 kHz, Unweighted): -98 dBu Typical, Minimum Gain
Noise (EIN, 22 Hz to 22 kHz): -128 dB at 40 dB Gain (Low-Z Microphone Output)
THD
Distortion (THD, IMD): 0.05% at +10 dB, 0.5% at +30 dBu
General
Lift
Earth Lift Switch Isolates Chassis Ground from Audio Signal Ground
AC Power
Internal Toroidal AC Supply: Dual Voltage, 115 to 230 VAC Selectable 50/60 Hz, 35 W Max per Channel
Dimensions
19.0 x 3.5 x 12.0″ / 48.3 x 8.9 x 30.5 cm
Weight
24 lb / 10.9 kg
Packaging Info
Package Weight
24.645 lb
Box Dimensions (LxWxH)
22.9 x 18.5 x 8.4″

In The Box

  • Avalon Design V55 Pure Class-A Dual-Mono Microphone Preamplifier with DI and Reamping
