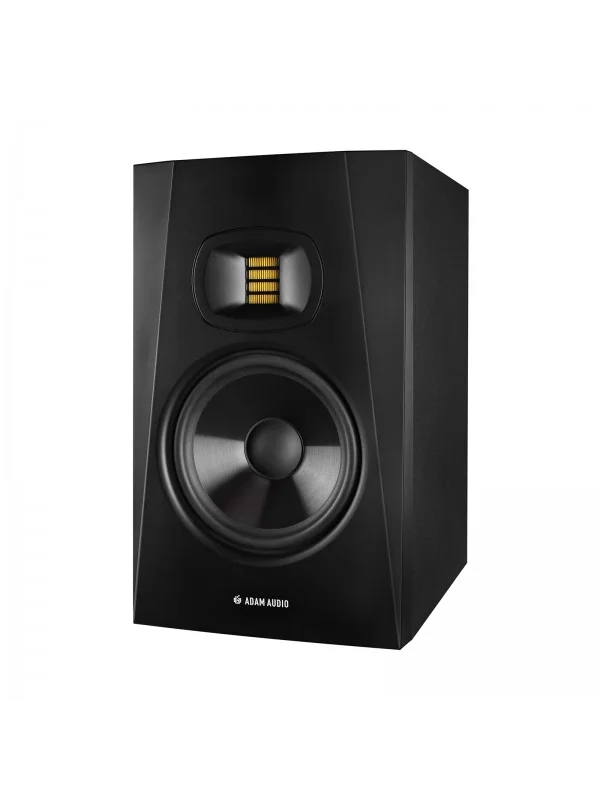

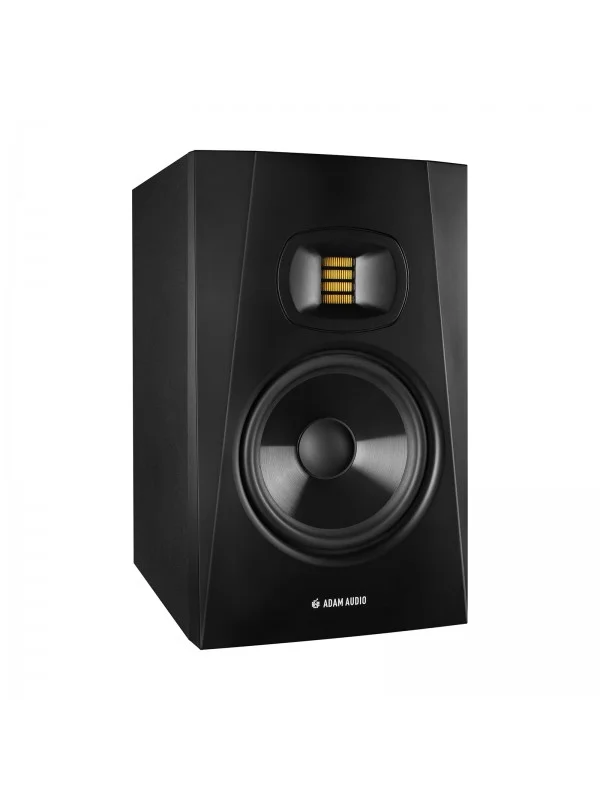

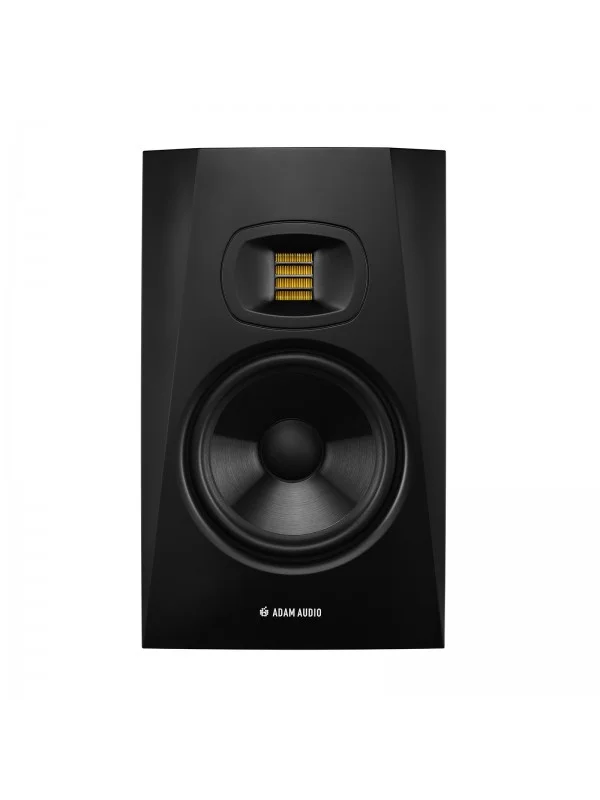

Adam Audio T7V Overview

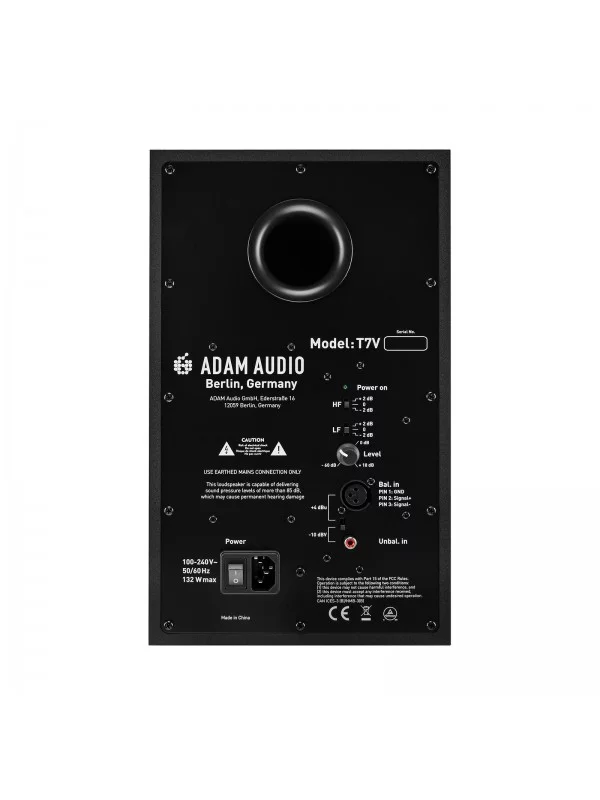

The single, Adam Audio T7V is an affordable, high-quality, near-field, active studio monitor well suited for project studios, commercial recording facilities, and broadcast environments. The speaker features Adam’s U-Art 1.9″ accelerated ribbon tweeter with HPS waveguide and a 7″ polypropylene woofer with a rear-firing bass-reflex port. The unit is bi-amped with 50W allocated to the woofer, while 20W powers the tweeter, which combine to provide a frequency response of 39 Hz to 25 kHz and a maximum SPL of 110 dB. The rear panel offers XLR and RCA connections with controls for input sensitivity, gain, high-shelf (-2, 0, +2 dB), and low-shelf (-2, 0, +2 dB). The Adam Professional Audio T7V ships with a power cord.

ADAM Audio T7V U-ART 1.9″ Accelerated Ribbon Tweeter

• Allows longer operation with fewer signs of fatigue
• Breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimum
• Advanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle)

Air velocity ratio of 4:1 during the sound generation by folded U-ART membrane

• Direct, fast response in the high-range even with complex transients

HPS waveguide from the S Series

• Makes dispersion more consistent and imaging more stable over a wider area
• Reduction of early reflections on the surfaces of mixing consoles, desks, and more

Lightweight polypropylene construction of the woofer

• Excellent transient response even at high sound levels without breakup of the diaphragm

Vertical 2-way system with 7″ woofer

• High resolution of the stereo image

Rear-firing bass reflex port

• Bass reproduction with very low compression

Linear frequency response of 39 Hz to 25 kHz

• Unbiased reproduction in a wide frequency band

Maximum peak sound pressure per pair in 3.3′ (1 m) 110 dB

• Powerful, compression-free sound reproduction even at very high sound levels

DSP-powered crossover design

• Smooth frequency response without interference between the drivers in the critical midrange

Simple room acoustic adjustments via high- and low-shelf filters

• Allows optimal adaptation to acoustically difficult listening environments or individual preferences

Analog inputs over XLR and RCA

• Optimized for balanced and unbalanced line signals

Acoustically optimized cabinet geometry

• Reduction of unwanted reflections on the cabinets
