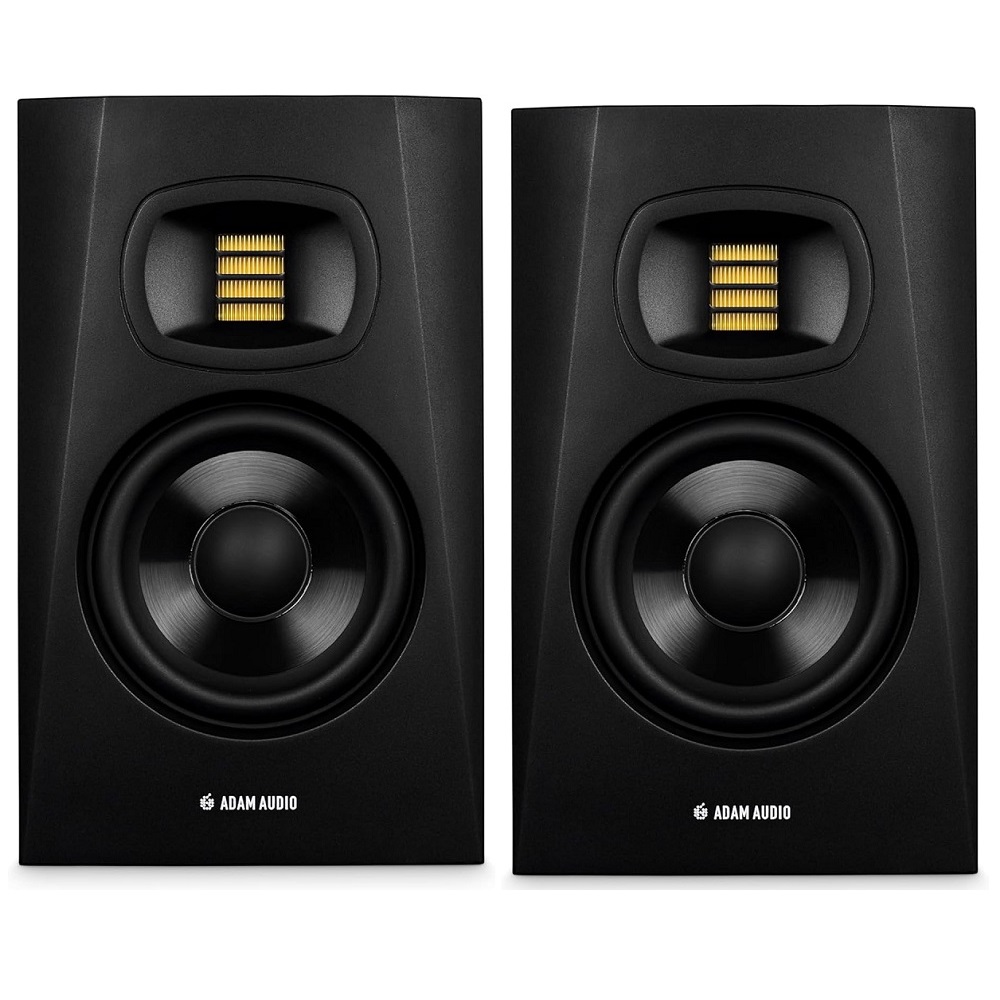

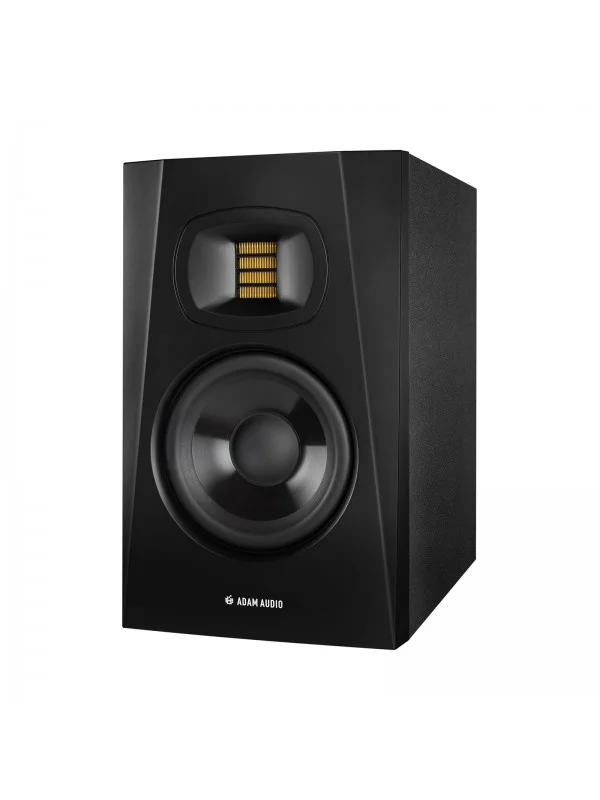

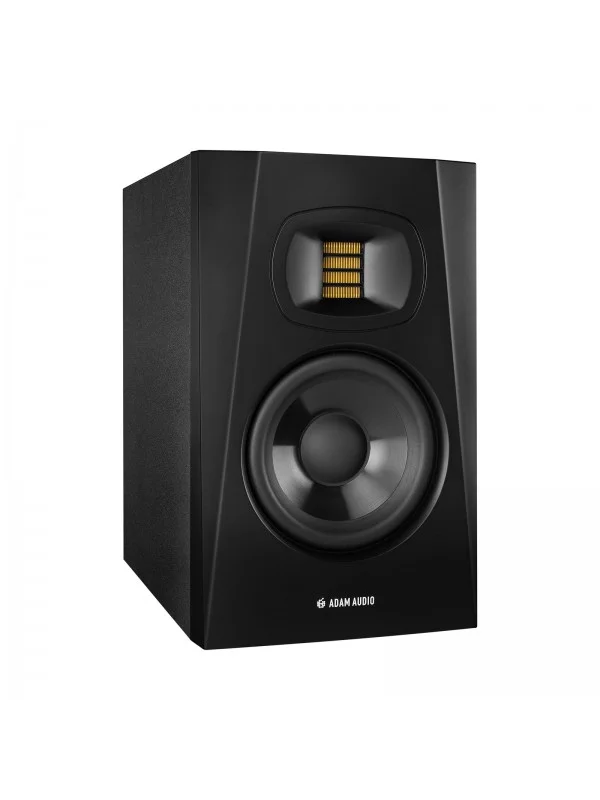

Adam Audio T5V T-Series Active Nearfield Studio Monitor
ADAM Audio T5V Powered Studio Monitors - Image 2
ADAM Audio T5V Powered Studio Monitors - Image 3
ADAM Audio T5V Powered Studio Monitors - Image 4
ADAM Audio T5V Powered Studio Monitors - Image 5
ADAM Audio T5V Powered Studio Monitors - Image 6
Adam Audio T5V T-Series Active Nearfield Studio Monitor
, ,

ADAM Audio T5V Powered Studio Monitors

ADAM AUDIO
Availability:

Out of stock
Add to Wishlist
Compare

The ADAM Audio T5V Powered Studio Monitors is an affordable, high-quality, near-field, active studio monitor well suited for project studios, commercial recording facilities, and broadcast environments.

Key Features

  • 5″ Polypropylene Woofer
  • U-ART 1.9″ Accelerated Ribbon Tweeter
  • HPS Waveguide from the S-Series
  • Bi-Amped Class-D Amplifier
  • Total Output: 70W
  • High & Low Shelf Filters
  • Frequency Response: 45 Hz to 25 kHz
  • Maximum SPL: 106 dB
  • Includes Power Cord
  • Limited 5-Year Warranty

₨ 165,000

Out of stock

Compare

ADAM Audio T5V Powered Studio Monitors Overview

The Adam Audio T5V T-Series Active Nearfield Studio Monitor is a highly affordable two-way nearfield monitor and optimized for small control rooms.

With its 5” woofer the bass-frequency response of the T5V extends to 45 Hz. The new U-ART tweeter, a breakthrough solution for use in high-resolution recording and mixing on a budget, goes up to 25 kHz and is mated to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

A beveled cabinet with a rear-firing bass reflex port and a small footprint allows placement anywhere in your room, no matter how small, and contains built-in DSP-controlled driver crossovers and equalization as well as multi-way analog connections. Powered with a 50 W Class D amplifier for the woofer and a 20 W Class D amplifier for the U-ART tweeter, the T5V produces SPLs of up to 106 dB per pair.

Excellent acoustic characteristics, small dimensions and an outstanding cost/performance ratio make this studio monitor perfectly suited for use in small control rooms in music, video and broadcast production.

If you need to hear more bottom end, the T5V is compatible with the ADAM Sub7 and Sub8 subwoofers.

Features At A Glance

  • U-ART 1.9” Accelerated Ribbon Tweeter with HPS Waveguide
  • Polypropylene 5” woofer and rear-firing bass-reflex port
  • Cumulated Amp. Power RMS: 70 W
  • Frequency Response: 45 Hz – 25 kHz
  • Max. SPL Per Pair at 1 m: ≥106 dB
SKU: T5V Categories: , , Tags: , , , , , , , , , ,

ADAM Audio T5V Specs

Weight 15.8 lbs
Dimensions 15.4 × 14.7 × 9.9 in
Brands

Woofer Number: 1
Basket Ø: 5.0 / 127.0 mm
Cone Material: Polypropylene
Tweeter Number: 1
Type: U-ART
Diaphragm Area: 4.0 / 101.6 mm
Equiv. Diaphragm Ø: 1.9 / 48.3 mm
Velocity Transform Ratio: 4:1
Diaphragm Weight: 0.006 oz / 0.17 g
Waveguide: HPS
Amplifier Number: 2
Woofer: 1
Type: PWM (Class-D)
Amplifier Power RMS: 50 W
Tweeter: 1
Type: PWM (Class-D)
Amplifier Power RMS: 20 W
Control Options Input Sensitivity: Switchable +4 dBu / -10 dBV
Gain: Yes
High-Shelf: -2, 0, +2 dB
Low-Shelf: -2, 0, +2 dB

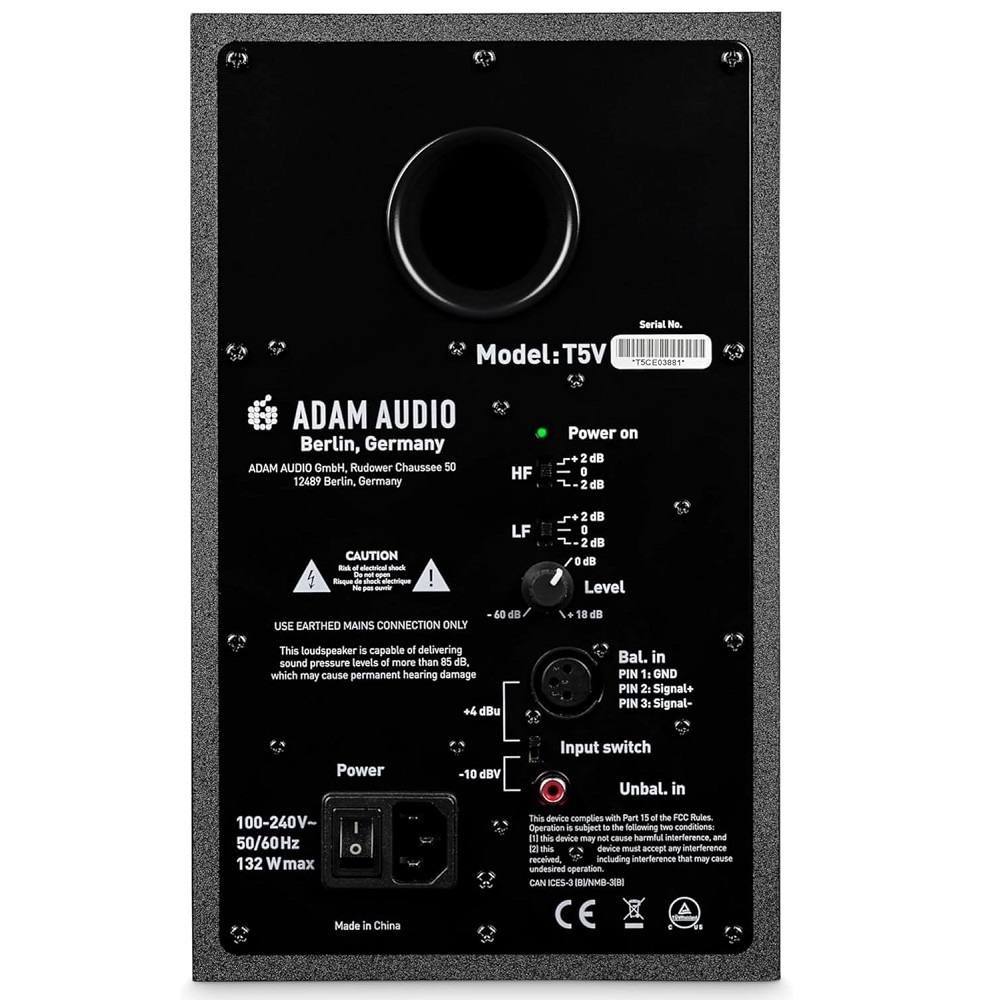

Input Connectors Analog: XLR, RCA
Input Impedance: 10 kOhm / 20 kOhm
Frequency Response 45 Hz to 25 kHz
THD THD > 80 Hz: 0.5 %
Maximum SPL Maximum SPL: ≥106 dB (per pair at 3.3 / 1.0 m)
Crossover 3 kHz
Power AC Mains Inputs Voltage: 100 to 240 VAC 50/60 Hz
Maximum Power Consumption 132 W
Dimensions (H x W x D) 11.7 x 7.0 x 11.7 / 297.2 x 177.8 x 297.2 mm
Weight 12.6 lb / 5.7 kg

Packaging Info

Package Weight 15.8 lb
Box Dimensions (LxWxH) 15.4 x 14.7 x 9.9

In The Box

  • Adam Professional Audio T5V T-Series Active Nearfield Monitor
  • Power Cord
