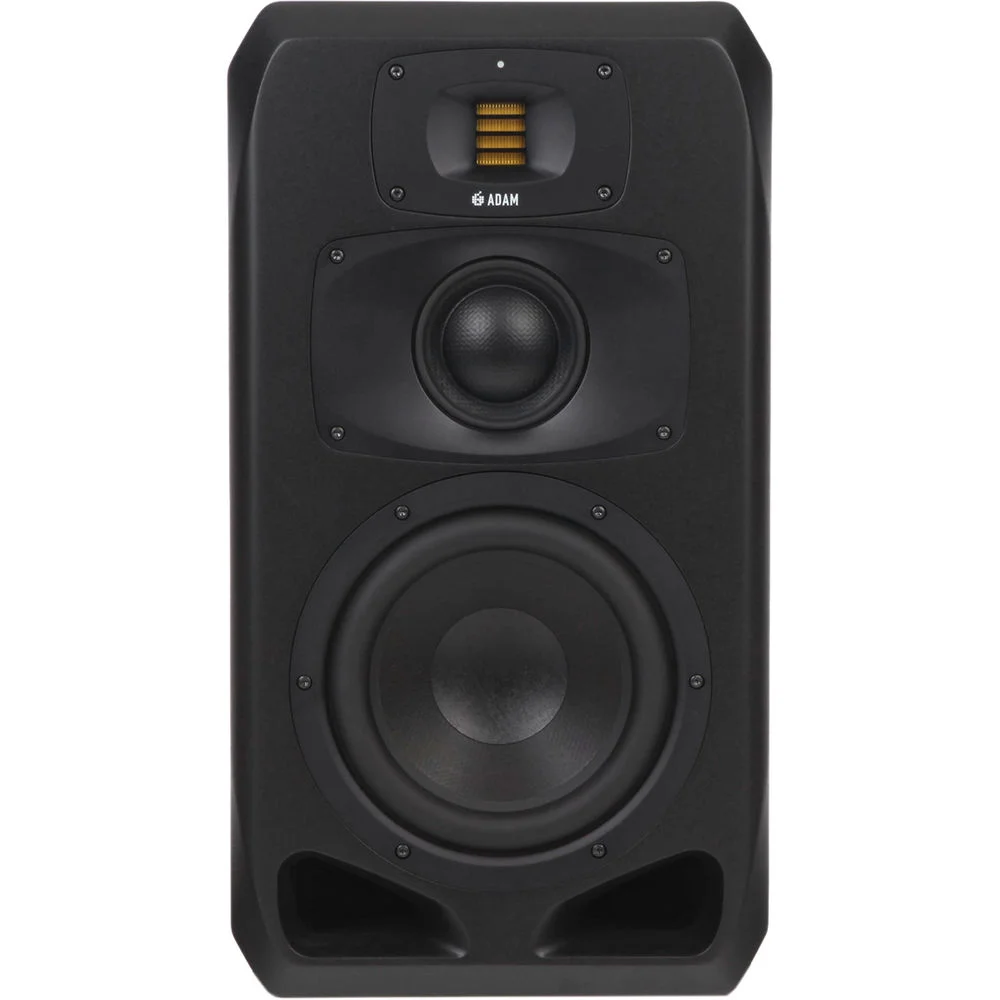

Adam Audio S3V Active Three-Way 9″ Midfield Studio Monitor

ADAM AUDIO
Availability:

In stock


Key Features
  • 9″ HexaCone Woofer
  • 4″ Dome/Cone Hybrid Midrange Driver
  • S-ART Tweeter with HPS Waveguide
  • 500W PWM (Class D) Woofer Amplifier
  • 300W PWM (Class D) Midrange Amplifier
  • 50W Class A/B Tweeter Amplifier
  • 32 Hz – 50 kHz Frequency Response
  • Adjustable Input Sensitivity and Output
  • 6-Band Equalizer with HPF/LPF Filters
  • XLR Analog and Digital Inputs

Unlock your studio’s full potential with the ADAM Audio S3V. Whether you’re mixing, mastering, or working on high-definition audio projects, the S3V will deliver unparalleled detail and accuracy

Coming Soon

This product is currently out of stock and unavailable.

Adam Audio S3V

The ADAM Audio S3V is a high-end 3-way active studio monitor designed for professionals who demand exceptional clarity and precise sound reproduction. Featuring ADAM’s proprietary drivers, including the X-ART tweeter, a custom 6.5-inch midrange, and a 7-inch woofer, the S3V ensures accurate frequency response and detailed imaging, making it ideal for mixing, mastering, and critical listening.


Key Features of the ADAM Audio S3V

  • X-ART Tweeter: Provides extremely detailed high frequencies, offering precision and accuracy across the full frequency range without fatigue.
  • Powerful Amplification: Equipped with 3 integrated Class D amplifiers providing 180W for the woofer, 100W for the midrange, and 50W for the tweeter, delivering a total output of 330W to handle high SPLs.
  • High Precision Drivers: The 7-inch woofer, 6.5-inch midrange, and X-ART tweeter deliver a wide frequency range from 38 Hz to 50 kHz, ensuring a full, balanced sound in any environment.
  • Optimized for Large Rooms: Designed for large control rooms, the S3V delivers tight bass, accurate mids, and crystal-clear highs, allowing for precise monitoring in professional studio environments.
  • Flexible Room Adaptation: Features integrated DSP with room EQ adjustments to tailor the monitor’s output to your specific room acoustics.

Advanced Design & Build Quality

  • Precision Sound Imaging: The HPS (High Frequency Propagation System) ensures a wide, even sound dispersion, ideal for multi-speaker setups or when working with multi-dimensional audio.
  • MDF Housing: The robust, resonance-free MDF enclosure ensures a clean, distortion-free sound, even at high output levels.
  • Precision Engineering: The S3V features a sleek black finish with an integrated digital input/output for easy integration with high-end studio setups.

Ideal for Professional Studios

The ADAM Audio S3V is perfect for mixing and mastering in large studios, control rooms, and broadcasting environments. With its exceptional linearity, superior detail, and wide frequency range, the S3V is designed for professionals who require a true-to-source monitoring system.

Looking for a Verstile Studio Monitor? Check out our Studio Monitor available at ProAudio Pakistan for great deals.
For detailed specs and official info, visit the Adam Audio S3V on Adam Audio website

Adam Audio S3V Specs

Weight 61.75 lbs
Dimensions 28 × 19 × 16.5 in
Brands

Key Specs

Monitor Type & Configuration
Active 3-Way
Total Power Output
850 W RMS
Tweeter
1x 2″ / 50.8 mm Ribbon
Midrange
1x 4″ / 10 cm Composite Dome/Cone Hybrid
Voice Coil: 2.4″ / 60 mm
Woofer
1x 9″ / 22.3 cm HexaCone Cone
Voice Coil: 2″ / 50 mm
Frequency Range
32 Hz to 50 kHz
Audio I/O
1x XLR 3-Pin Balanced Input (48 Kilohms)
Digital Audio I/O
1x XLR 3-Pin AES3 Input
1x XLR 3-Pin AES3 Output
Network I/O
No
Wireless
No
Number of Included Monitors
Single Monitor
Enclosure
Bass-Reflex/Ported, Shielded
Total Power Output
850 W RMS
Drivers
Tweeter
1x 2″ / 50.8 mm Ribbon
Midrange
1x 4″ / 10 cm Composite Dome/Cone Hybrid
Voice Coil: 2.4″ / 60 mm
Woofer
1x 9″ / 22.3 cm HexaCone Cone
Voice Coil: 2″ / 50 mm
Amplifiers
HF: 50 W Class-AB
MF: 300 W Class-D
LF: 500 W Class-D
Performance
Frequency Range
32 Hz to 50 kHz
Maximum Sound Pressure Level (SPL)
124 dB
Total Harmonic Distortion (THD)
0.4%
Maximum Input Level
+24 dBu
Signal Processing
EQ
1x HF Shelf
1x LF Shelf
Crossover Frequency
Low-Pass: 250 Hz
High-Pass: 3 kHz

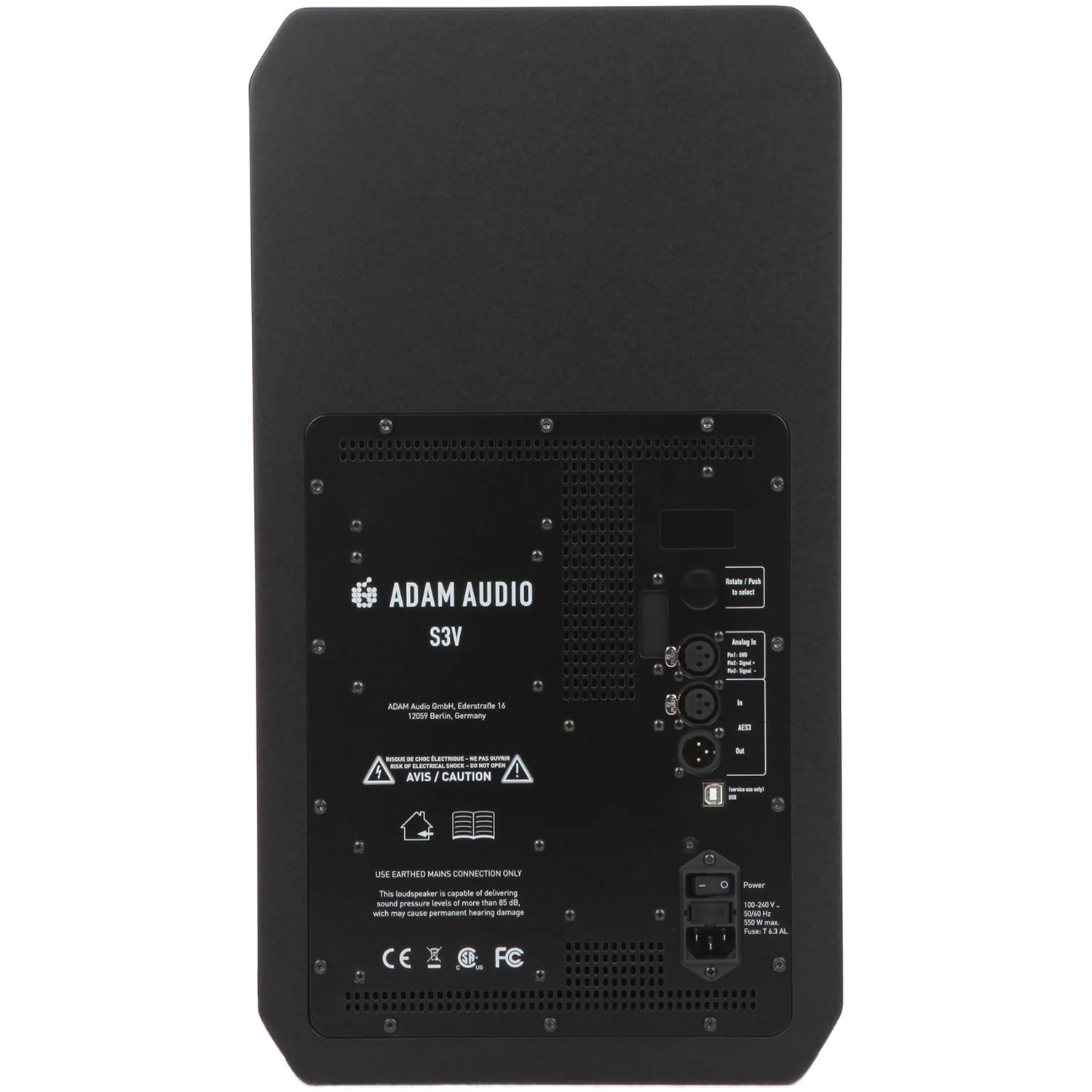

Connectivity
Audio I/O
1x XLR 3-Pin Balanced Input (48 Kilohms)
Digital Audio I/O
1x XLR 3-Pin AES3 Input
1x XLR 3-Pin AES3 Output
Network I/O
No
USB
1x USB-B (Remote)
Wireless
No
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
Power Consumption
550 W (Maximum)
Physical
Color
Black
Monitor Orientation
Vertical
Dimensions (W x H x D)
11.5 x 21.1 x 15″ / 293 x 536 x 380 mm
Weight
55.0 lb / 24.9 kg
Packaging Info
Package Weight
61.75 lb
Box Dimensions (LxWxH)
28 x 19 x 16.5″

In The Box

  • Adam Audio S3V Active Three-Way 9″ Midfield Studio Monitor (Vertical, Single)
  • IEC Power Cord
