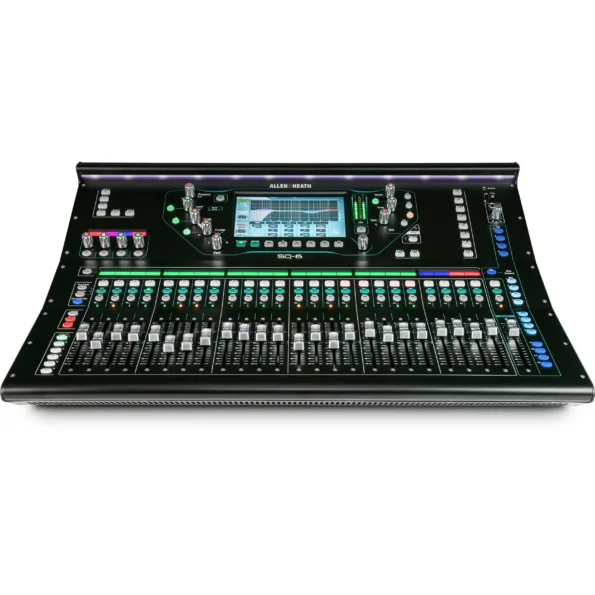

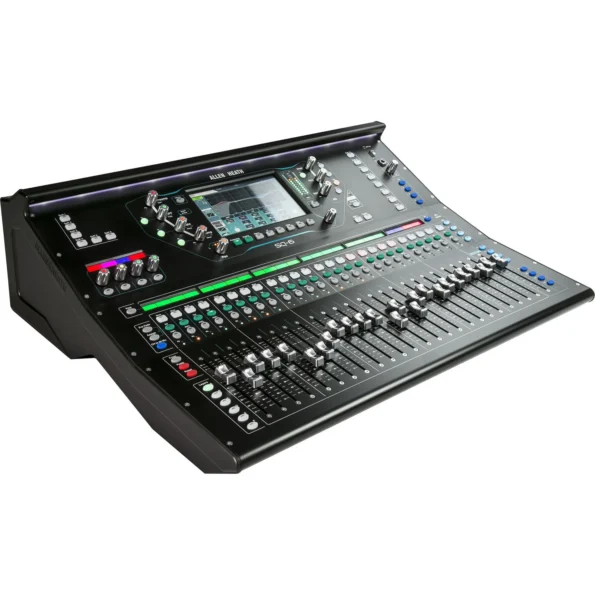

Allen & Heath SQ-6 48-Channel / 36-Bus Digital Mixer with 24+1 Motorized Faders

Allen & Heath SQ-6 Overview

The Allen & Heath SQ-6 is a 48-channel, 36-bus digital mixing console well suited for live sound, corporate A/V, recording studios, and houses of worship. The SQ-6 features 24+1 motorized faders and 24 professional-quality microphone preamps. There are also eight stereo FX engines with dedicated return channels and access to the RackExtra FX library. The mixer’s 12 stereo outputs (configurable as groups or auxes) are well suited for in-ear-monitor setups, while the Auto Mic Mixing function offers quick and easy operation over multiple microphones for conferences, panel talks, and more.

Allen & Heath SQ-6 Key Features

• Compact digital mixer for live, studio, and installation
• 48 input channels
• 24 local mic inputs (XLR)
• Two 1/4” stereo inputs (TRS)
• One 1/8″ stereo input
• 36 total busses
• 12 stereo mixes (Aux or Group) + Main
• PAFL bus
• 16 assignable local outputs (14 XLR + two 1/4” TRS)
• AES digital output
• Dedicated talkback mic input (XLR)
• 1/4″ TRS headphone out with dedicated control
• SLink EtherCON connection for remote audio using dSnake, DX, or gigaACE protocol (64×64 channels)
• I/O port for option card (including 3rd party protocols – Dante/Waves)
• 8 mute groups
• 8 DCA groups
• 8 stereo FX with dedicated FX returns
• DEEP processing ready
• RackFX effects suite
• 7″ color touchscreen
• 16 assignable SoftKeys
• Four assignable soft rotaries
• Dedicated physical controls for channel processing (Gain, HPF Frequency, Gate Threshold, Compressor Threshold, Pan, EQ Gain/Frequency/Width)
• 24+1 faders with 6 layers for 96 assignable channel strips
• Motorized faders for sends on faders, GEQ fader flip, and mix recall
• 24 backlit LCD channel-strip displays
• Single-point metering
• Integrated surface illumination
• Single/dual footswitch control
• Input channel linking for stereo sources
• Patchable insert points
• Input processing – Preamp, HPF, Gate, PEQ, Compressor, Delay
• Output processing – PEQ, Graphic EQ, Compressor, Delay
• Automatic mic mixing
• 31-band, real-time analyzer (RTA)
• Quick copy/paste/reset for parameters
• User permissions to restrict operator access
• 300 scene memories per show
• Channel safes, global and per-scene recall filters
• FX, processing, and channel libraries
• SQ-Drive for stereo and multitrack recording/playback direct to USB drive
• USB transfer of scenes, libraries, shows
• 32×32 channel USB streaming to/from Mac/Windows
• DAW control driver for MIDI control via USB or TCP/IP
• Wireless remote mixing apps for iPad and Android
• Compatible with ME personal-monitoring range

48 Input Channels with Premium Processing

Powered by Allen & Heath’s next‑generation XCVI 96 kHz FPGA engine, the SQ‑6 offers high‑resolution audio with ultra‑low latency (<0.7 ms) and advanced dynamics processing on every input. Each channel includes HPF, sidechain‑capable gate, 4‑band parametric EQ with RTA, and Peak/RMS compression for precise control over your sound.

Intuitive Touchscreen & Workflow

The SQ‑6 features a 7″ capacitive touchscreen with drag‑and‑drop layout, custom naming, and colour coding, supported by high‑grip encoders and assignable SoftKeys/Soft Rotaries for hands‑on control. This makes mixing faster and more intuitive, whether you’re on stage or in the studio.

Flexible Mixing & Routing

Create up to 12 stereo mixes plus LR and 3 stereo matrices, perfect for front‑of‑house, monitors, and in‑ear systems. The console also supports automatic mic mixing, ideal for conferences or panel events with multiple mics.

World‑Class FX & DEEP Processing

The SQ‑6 includes 8 stereo FX engines with dedicated returns and access to the acclaimed RackExtra FX library, offering reverbs, delays, and modulators. Optional DEEP processing adds boutique compressor and preamp emulations directly inside the mixer.

Recording, Streaming & USB Integration

Equipped with a 32×32 96 kHz USB audio interface, the SQ‑6 supports multitrack recording, playback, live streaming, and virtual soundcheck. The integrated SQ‑Drive enables direct USB recording and playback without a computer.

Expandable & Network‑Ready

The mixer’s SLink port allows expansion with remote I/O and personal mixing systems. Add Dante or Waves I/O cards for networked audio integration, giving you scalable flexibility for larger systems.
