Allen & Heath Qu-24C 30-In/24-Out Digital Mixer

Allen & Heath
Availability:

In stock

The Allen & Heath QU‑24C is a powerful 24‑channel digital mixer with AnalogiQ preamps, touchscreen control, multitrack recording, iPad remote mixing, and premium FX — perfect for live sound, studio, and AV setups.

Key Features

  • Chrome Knobs & Faders + Updated Firmware
  • 24 AnalogiQ Preamps
  • 5″ Touchscreen
  • 25 Motorized 100mm Faders with Recall
  • 5-Core ARM Processor
  • Integrated iLive FX
  • Record Audio to Mac or USB Hard Drive
  • 48 kHz/24-Bit Resolution
  • iPad App for Wireless Mixing
  • dSNAKE Compatible

₨ 1,200,000

In stock

Order On Whatsapp

Allen & Heath Qu-24C Overview

The Allen & Heath Qu-24C 30-In/24-Out Digital Mixer features 24 of Allen & Heath’s AnalogiQ microphone preamps and is powered by its 5-core ARM processor to provide a variety of integrated effects and processing including channel-independent 4-band parametric EQs, compressors, delay, reverb, and more. The mixer is capable of recording audio to either your Mac or a USB hard drive in up to 48 kHz/24-bit resolution, allowing you to record both the individual tracks and live mix of your shows. The chrome edition adds high-contrast chrome rotary and fader knobs that improve visibility in dark conditions, as well as a number of software enhancements from the updated firmware (V1.8).

Allen & Heath Qu-24C Key Features

30 Total Inputs (24 Mono + 3 Stereo)

With 24 mono mic/line channels and 3 stereo line inputs, the QU‑24C gives you extensive input flexibility for instruments, vocals, and playback sources.

Recallable AnalogiQ™ Preamps

Allen & Heath’s AnalogiQ preamps deliver transparent, low‑noise audio with accurate gain control and a warm, musical character.

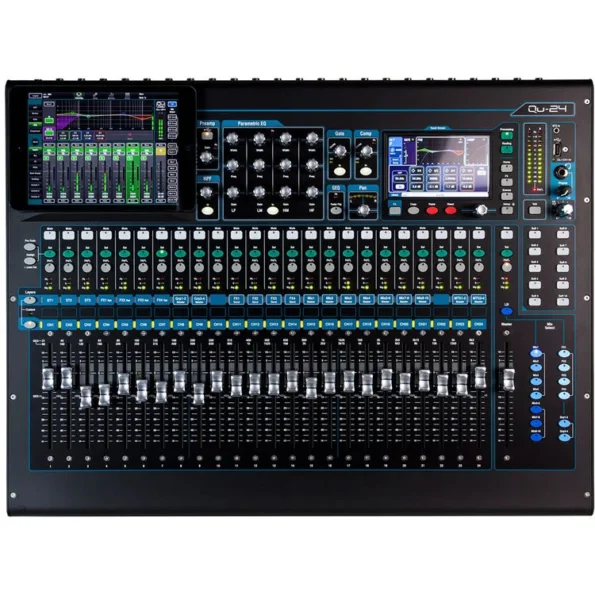

Large Touchscreen & Motorized Faders

The high‑contrast 800×480 touchscreen and 25 motorized faders provide fast access to channel settings, mix layers, and detailed routing controls for a smoother, more efficient workflow.

Multitrack Recording & USB Audio Streaming

Use the built‑in 32×30 USB audio interface for multitrack recording/playback or stream directly to your DAW. Qu‑Drive lets you record live performances directly to a USB drive — no computer required.

Professional Onboard Effects

Four stereo FX engines derived from A&H’s pro touring systems provide premium reverb, delay, modulation, and other effects, with dedicated FX returns and flexible routing.

Remote Control Apps & Expandability

Control your mix from anywhere with the Qu‑Pad iPad app or use Qu‑You on iPhone/Android for personal monitoring. The mixer also integrates with the ME personal mixing system and remote stageboxes via dSNAKE.

Comprehensive Processing & Workflow

Each input and output features trim, polarity, HPF, gate, PEQ, compressor, delay, and channel ducker, while mute groups, DCA groups, and scene memory enhance workflow performance.

What is so Great with Allen & Heath Qu-24C

  • Live Sound & Touring: Powerful channel processing and streamlined control for FOH and monitor engineers.
  • Recording & Playback: Flexible USB recording and playback for studio or live use.
  • Hybrid Productions: Remote control from tablets and personal monitoring adds freedom for complex setups.
  • Compact Yet Powerful: A full‑featured digital mixer that fits comfortably into smaller rigs without sacrificing professional capability.
SKU: Allen&HeathQu-24C Categories: , , , Tags: , , , , Brand:

Allen & Heath Qu-24C Specification

Weight 39.5 lbs
Dimensions 30.75 × 26.5 × 12.75 in
Brands

Mixer
Number of Analog Input Channels
24
Mix Routing
4x Stereo FX Return
Groups
4x Mute Group
Display
5″ Touchscreen
Display Resolution/Color
Main Display:
800 x 480
Faders & Level Adjustment
x 3.9″ / 100 mm Motorized
Meter Range
-48 to -3 dBFS Peak/Clip (+19 dBu at XLR Output)
Meter Calibration
0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)
Signal Processing
Gain/Trim Range
Line:
±24 dB (Stereo Channels)
Mic/Line:
-10 dB to +60 dB (in 1 dB Steps)
Input Polarity
Normal/Reverse
Gate Parameters
Threshold: -72 to +18 dBu
Depth: 0 to 60 dB
Attack: 50 μs to 300 ms
Hold: 10 ms to 5 sec
Release: 10 ms to 1 sec
Compressor Parameters
Threshold: -46 to 18 dBu
Ratio: 1:1 to ∞:1
Attack: 300 μs to 300 ms
Release: 100 ms to 1 sec
Knee: Soft / Hard
EQ
FX Returns:
4-Band Parametric
EQ Parameters
1x HF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
2x MF Notch/Peak:
±15 dB at 20 Hz to 20 kHz
1x LF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
Graphic EQ
28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
Filters
High-Pass: 20 Hz to 20 kHz, 12 dB/Octave
Channel Output/Source Monitoring
AFL, PFL, Post-Preamp, Post-EQ, Post-FX
Built-In Effects
Reverb
Delay
Reverb (Gated)
ADT
Chorus
Phaser
Flanger
Real Time Analyzer
31-Band 1/3 Octave, 20 Hz to 20 kHz
Audio Delay
Adjustable Up to 170 ms
Digital Audio
Sample Rates
48 kHz
AES3 Output:
48 kHz
Bit Depth
AD/DA Conversion:
24-Bit Delta Sigma
Latency
1.2 ms (Mic Input to XLR Output)
0.7 ms (Mic Input to AES Output)
Performance
dBFS Reference Level
+18 dBu = 0 dBFS
Headroom
+18 dB
Frequency Response
20 Hz to 20 kHz +0/-0.5 dB
Max Input Level
Mic Input:
+19 dBu
Line Input:
+29 dBu
Aux Input:
+22 dBu (+4 dBu)
+18 dBu (0 dBu)
Output Level
Line Output:
+22 dBu (2901653168)
+4 dBu (2901653169)
Stereo Output:
+22 dBu (2901653168)
+4 dBu (2901653169)
Analog Dynamic Range
112 dB
I/O Impedance
1/4″ Stereo Output:
< 75 Ohms
AES3 Output:
110 Ohms
Aux Input:
> 7 Kilohms
XLR Line Output:
< 75 Ohms
XLR Mic/Line Input:
> 5 Kilohms
1/4″ Mic/Line Input:
> 10 Kilohms
Noise Floor
-90 dBu (with Inputs Muted)
-91 dBu (with Inputs Muted)
THD+N
Mic/Line Input:
0.0005% at Unity Gain
0.001% at +30 dB Gain
Signal Generator
Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)

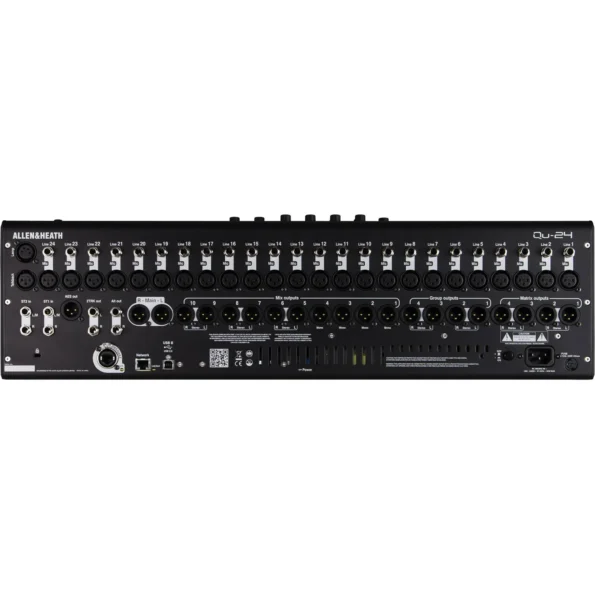

Connectivity
Analog Inputs
1x XLR Talkback Input
24x XLR Balanced Mic Input
24x 1/4″ TRS Balanced Line Input
4x 1/4″ TRS Balanced Aux Input (2 Stereo Pairs, Half-Normalled)
1x 1/8″ / 3.5 mm Unbalanced Aux Input
Analog Outputs
10x XLR Balanced Mix Output
2x XLR Balanced Main Output
4x XLR Balanced Subgroup Output
4x XLR Balanced Matrix Output
4x 1/4″ TRS Balanced Aux Output (2 Stereo Pairs)
Digital I/O
1x RJ45 (Network)
1x XLR AES3 Output
1x etherCON dSNAKE (I/O)
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
120 W (Maximum)
Physical
Operating Temperature
32 to 95°F / 0 to 35°C
Dimensions
24.9 x 19.7 x 7.4″ / 632 x 500 x 186 mm
Weight
31 lb / 14 kg
Packaging Info
Package Weight
39.5 lb
Box Dimensions (LxWxH)
30.75 x 26.5 x 13.75″

In The Box

  • Allen & Heath Qu-24C 30-In/24-Out Digital Mixer
  • Power Cord
