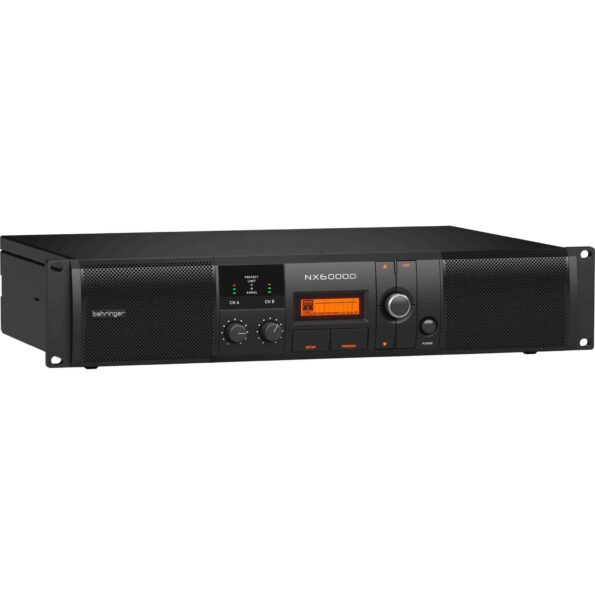

Behringer NX6000D Overview

With the Behringer NX6000D, a 2 RU, two-channel 6000W amplifier that has a built-in DSP speaker processor and SmartSense impedance compensation that provides a linear response at any speaker load impedance, you can give your speakers everything they need. The amplifier has a zero-attack limiter that offers incredibly dependable overload safety at the maximum output level.

The NX3000D gives you choice when setting up your sound system by delivering 3000W into 4 ohms and 1600W into 8 ohms. Advanced crossovers, delay, EQ, and dynamics processing are all included in the integrated DSP. Two combo XLR-1/4″ inputs are used for inputs, while NL4 speakON speaker connections are used for speaker outputs. For the best speaker control, connect to a PC and use the free NX EDIT app, or program the DSP using the onboard amber illuminated display. There is a power cord provided.

NX DSP

The NX6000D amplifier is ready to use straight out of the box for sound engineers that need high-level control capability. With a very wide dynamic range, the integrated DSP and 24-bit/96 kHz converters provide the highest level of signal integrity. Advanced delay, dynamics processing, EQ (8 parametric, 2 dynamic), crossover (3 filter types, up to 48 dB/octave), and lockable security settings are all included in the DSP area. You can configure and tune the amplifier directly without a computer thanks to a handy front-panel LCD display.

Features At A Glance

• Ultimate reliability through revolutionary cool-running Class-D technology with near-zero thermal buildup
• Ultra-efficient switch-mode power supply for noise-free audio, superior transient response, and low power consumption
• High-performance DSP and 24-bit / 96 kHz converters deliver ultimate signal integrity and extreme dynamic range
• DSP section features sophisticated delay, crossover (3 filter types, up to 48 dB/octave), EQ (8 parametric, 2 dynamic), dynamics processing and lockable security settings
• SmartSense loudspeaker impedance compensation provides ultra-linear frequency response and low distortion
• Front panel LCD display enables setup and adjustment without PC
• Can be set up, controlled and monitored via front panel USB connector. Powerful remote software downloadable at behringer.com
• Zero-attack limiters offer maximum output level with reliable overload protection
• Built-in subwoofer/satellite crossover for perfect subwoofer operation
• Detented and illuminated gain controls for precise level setting
• Precise 4-segment Signal and Limit LEDs to monitor performance
• XLR and ¼ ” TRS combination input connectors for compatibility with any source
• Professional twist-lock speaker connectors for ultimate reliability
• Independent DC, LF and thermal overload protection on each channel automatically protects amplifier and speakers without shutting down the show
• Back-to-front ventilation system prevents thermal buildup for reliable operation
