Teyun Q24 – 2×2 USB Audio Interface – Black

Teyun Q24 Overview

TEYUN Q24 Audio Interface Sound Card 24Bit/192KHZ USB2.0 Support Loopback and TRS/RCA Output

Teyun Q-24 features AD and DA converters with resolutions up to 24-bit/192KHZ, providing excellent recording quality, dynamic response and rich low frequencies. High-quality conversion is the key to achieving high-quality audio, and excellent conversion. Multi mode power makes sure you are ready to record at any situation.

Teyun Q24 is second generation of Teyun sound cards, with industry standard resolution and compatibility, USB 2.0 interface makes sure Q24 supports virtually any Windows/Mac DAW environment, dedicated DSP Processor with extremely low distortion and high-precision digital signal processing.

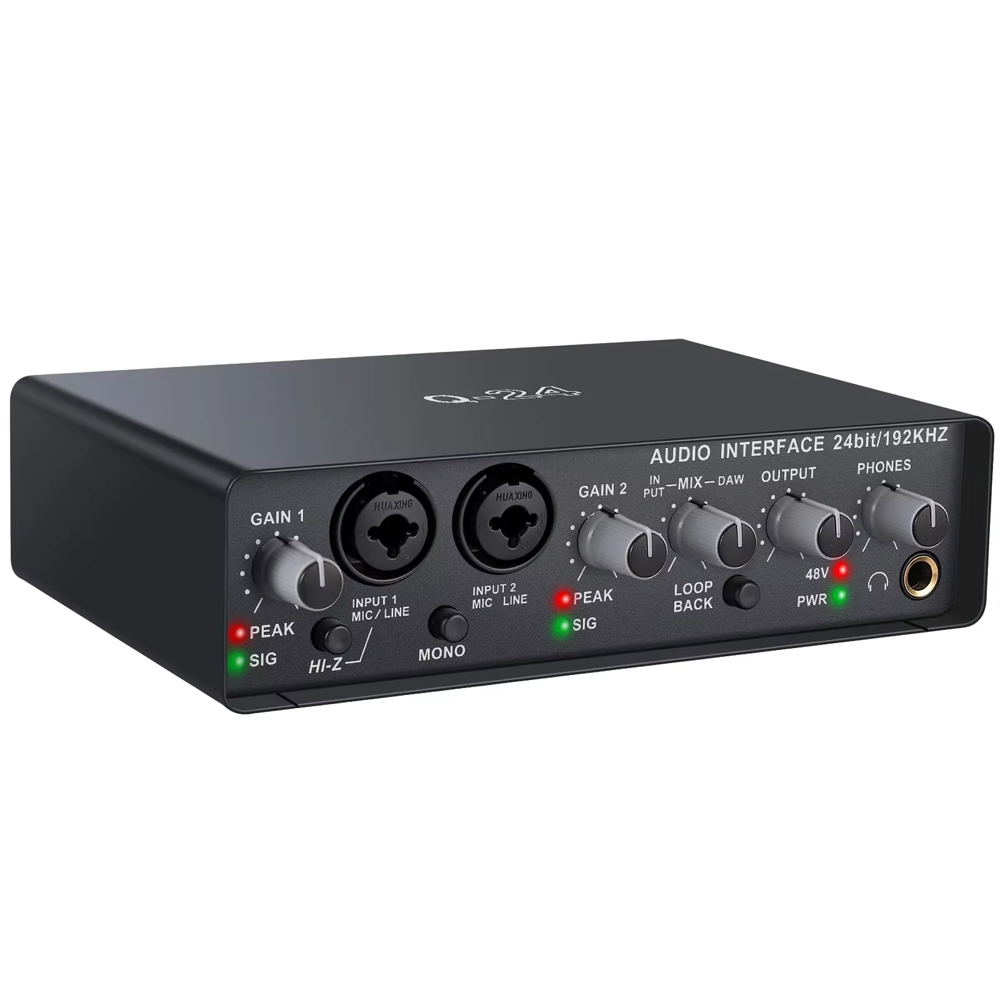

• 2 Independent Hybrid (XLR-TS Combo) Channels
• 2 RCA (L+R) Line Inputs for Aux-Line level signal inputs
• Low-noise, high-precision microphone preamplifier for analogue conversion of microphones/Instruments
• 48V phantom power supply (switchable)

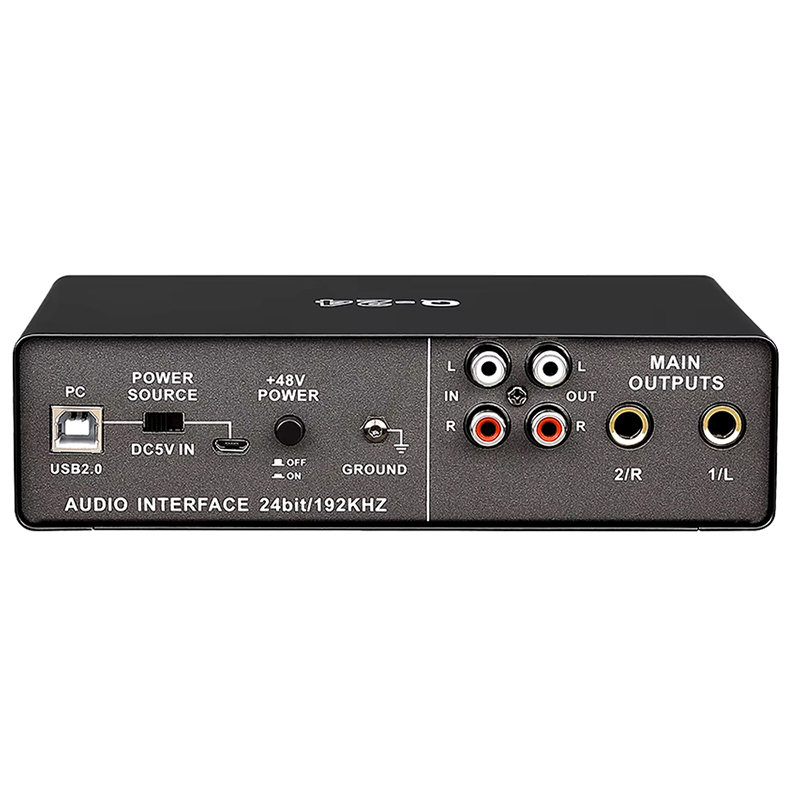

• Main R+L balanced output for Studio Monitors or Audio Amplifiers
• R+L RCA unbalanced outputs for audio amplifiers
• Studio monitoring headphones output
• The external switching power adapter (AC100-240V) has the characteristics of flexible use and low

Features:
– High resolution: 24Bit/192khz
– Loopback/Cover
– High-speed USB2.0 drive free
– TRS/RCA output, RCA input

Parameter:
– Model: Q-24 Second Generation
– Dimension: 17.5 x 13 x 4.5cm
– Connection port: USB-B (square port)
– Connection protocol: USB2.0
– A/D accuracy: 24-bit/192khz
– Synchronous output/input: 2X4
– Number of preamplifiers: 1
– DC 5V power: 1
– Phantom+48V: admit
– Number of musical instrument inputs: 1
– Number of line inputs: 2
– Number of analog outputs: 4
– Number of earphone outputs: 1
