Dynaudio Acoustics LYD 5 Nearfield 5 Speaker Monitor
Dynaudio LYD-5 Nearfield Monitor - Image 2
Dynaudio Acoustics LYD 5 Nearfield 5 Speaker Monitor
Dynaudio Acoustics LYD 5 Nearfield 5 Speaker Monitor
Dynaudio Acoustics LYD 5 Nearfield 5 Speaker Monitor
, ,

Dynaudio LYD-5 Nearfield Monitor

DYNAUDIO
Availability:

Out of stock
Add to Wishlist
Compare

SKU: LYD-5W

Key Features
  • 5″ Woofer
  • 1″ Soft Dome Tweeter
  • Bi-Amped Class-D Amplifier: 2 x 50W
  • Frequency Response: 50 Hz to 21 kHz
  • 24-Bit / 96 kHz Signal Path and DSP
  • Sensitivity: 3 Settings
  • Sound Balance: 3 Settings
  • Position Settings: Free or Wall
  • Bass Extension: -10, 0, +10 dB
  • XLR and RCA Inputs

Call for Price

Compare

Dynaudio LYD-5 Nearfield Monitor Overview

Styled in white, the Dynaudio LYD-5 is a nearfield monitor designed to work for home studios, project studios, or anywhere in need of a compact, yet powerful monitor. Its handmade design implements aluminum wire voice coils, along with a Class-D amplifier and a 96 kHz / 24-bit signal path with onboard DSP to bolster audio performance.

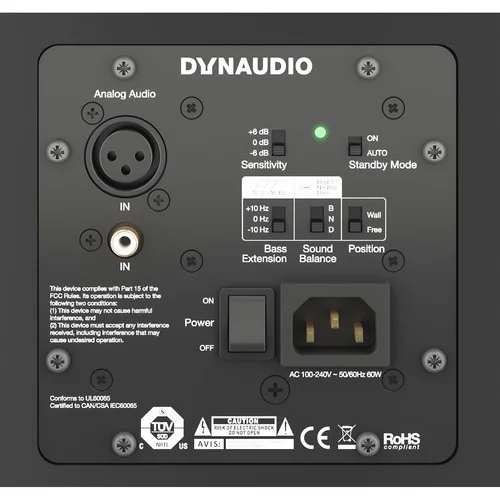

With a relatively lightweight construction at 12.6 lb, the monitor secures a quick and accurate transient response, which is essential for critical listening and mixing decisions. Extending from 50 Hz to 21 kHz, the LYD 5 has a 5″ woofer and a 1″ soft dome tweeter and offers several options for tweaking the sound for your environment. Switches are provided for tonal boosting or cutting, to better suit your room placement. These switches are all detented, so you can easily match one speaker to another. An XLR input is provided for pro setups, while an RCA is on hand for the hi-fi enthusiast.

Dynaudio Nearfield Monitors Come in three sizes  Dynaudio LYD-5, Dynaudio LYD-7 and Dynaudio LYD-8

Key Features at a Glance

  • Nearfield monitor with 5″ woofer
  • Bi-amped speaker design with 2 x 50W and Class-D amplification
  • Bass Extension:  Extend or curtail the low-end frequency response (-10, 0, +10 dB)
  • Position Switch: One for free-standing orientation and one designed for speakers positioned near walls
  • Sound balance to influence the overall response of the speaker
  • Max. SPL (1m, pair): 106 dB
  • Crossover Frequency: 5.2 kHz
  • Frequency Response: 50 Hz to 21 kHzc021+36.

View details on manufacturer’s website

SKU: LYD-5W Categories: , , Tags: , , , ,

Dynaudio LYD-5 Specs

Weight 14.9 lbs
Dimensions 14.4 × 13.6 × 9.8 in
Brands

Studio Monitor

Monitor Type Active 2-Way
Enclosure Bass-Reflex, Shielded
Drivers HF Driver: 1 x 1″ / 25.4 mm Tweeter
LF Driver: 1 x 5″ / 127 mm Woofer
Amplification HF Amplifier: Class-D Rated at 50 W
LF Amplifier: Class-D Rated at 50 W

Performance

Frequency Range 50 Hz to 21 kHz
Frequency Response 62 Hz to 19 kHz
Maximum Sound Pressure Level (SPL) 106 dB
Analog Input Sensitivity/Gain +6  to -6 dB (Incrementally Variable)

Crossover

Crossover Frequency 5.2 kHz

Connectivity

I/O 1 x 3-Pin XLR Balanced Analog Input
1 x RCA Unbalanced Analog Input

Power

AC Input Power 90 to 264 VAC at 50/60 Hz
Power Consumption 0.5 W (Standby)
100 W (Maximum)

General

Dimensions (W x H x D) 6.7 x 10.2 x 8.3″ / 170.0 x 260.0 x 211.0 mm
Weight 12.6 lb / 5.7 kg

Packaging Info

Package Weight 14.9 lb
Box Dimensions (LxWxH) 14.4 x 13.6 x 9.8″

In The Box

  • Dynaudio LYD-5
  • Power Cord
