BOYA BY-W4 Ultracompact 4-Person Wireless Microphone System for Cameras and Smartphones (2.4 GHz)

BOYA

Key Features
  • For Content Creation, Mobile Journalism
  • 4-Person Shoots with Camera or Phone
  • 4 x Transmitters with Built-In Mics
  • Four-Channel Receiver
  • 98′ Transmission Distance
  • 3.5mm TRRS Port, USB-C Charging
  • Gain Control, LED Indicators
  • 7-Hour Battery Life

 40,950

BOYA BY-W4 Overview

Record two-person or four-person vlogs and interviews to your DSLR/mirrorless camera or compatible smartphone using the BOYA BY-W4 Ultracompact 4-Person Wireless Microphone System and its four included transmitters with built-in omnidirectional microphones. The system not only includes these four transmitters with ultracompact form factor and back clips for attaching to your talent’s lapel, but it also includes a four-channel receiver with 3.5MM TRRS connectivity. All of the components can communicate from up to 98′ away via 2.4 GHz frequency.

Monitor your audio and record simultaneously using the included 3.5mm TRS male to dual TRRS female monitoring cable. The male connector attaches to your receiver’s 3.5mm TRRS port while the two female connectors accept your headphone or computer input connection. Use the LED indicators on each component to view your connection and battery statuses. Onboard controls on each transmitter allow you to adjust the gain levels or mute the unit. Built-in rechargeable batteries in all units power the system for up to 7 hours at a time, while USB-C charging ports power them back up when depleted.

BOYA BY-W4 Features at a Glance

  • 2.4 GHz frequency, 98′ transmission distance
  • Clip-on transmitters weigh only 0.4 oz
  • Record in two-person or four-person configurations
  • Gain control, mute mode
  • LED indicators
  • 3.5mm TRRS to TRS cable, 3.5mm TRRS male to dual TRRS female cable
  • Use the monitoring cable to listen to audio in real time
  • USB-C charging cables, furry windscreens, carrying pouch

If you prefer Boya products, check out the full collection in our Boya Microphones category

To verify specifications and warranty information, head to the Boya Official Website.

BOYA BY-W4 Specs

Weight 0.59 lbs
Dimensions 6.4 × 3.8 × 2.7 in
Brands

BOYA BY-W4 Specs

Key Specs
Wireless Technology
Digital 2.4 GHz
Diversity
Non-Diversity
Max Operating Range
98.4′ / 30 m (Line of Sight)
Receiver Type
1x Bodypack
Number of Audio Channels
4
Included Transmitters
4x Clip-On
Microphone Type
4x Built-In (Clip-On Transmitter)
System
Wireless Technology
Digital 2.4 GHz
Diversity
Non-Diversity
Max Operating Range
98.4′ / 30 m (Line of Sight)
Max Transmitters per Band
4
Encryption
No
Built-In Recorder
No
Timecode Support
No
Mobile App Compatible
No
Receiver
Receiver Type
1x Bodypack
Mounting Options
Belt Clip (with Included Hardware)
Antenna
1x Internal
Number of Audio Channels
4
Audio I/O
1x 1/8″ / 3.5 mm TRRS Unbalanced Output
Network I/O
No
USB/Lightning Connectivity
1x USB-C Female (Charging)
Frequency Response
50 Hz to 16 kHz
Display
Single-LED Indicators Only
Power Requirements
Battery
Transmitters
Included Transmitters
4x Clip-On
RF Output Power
< 10 mW
Antenna
Internal
Input Level
Line
Audio I/O
No
Bias/Plug-In & Phantom Power
Bias/Plug-In Power is Unspecified by Manufacturer
No Phantom Support
USB I/O
1x USB-C (Charging)
Muting
Off/On Switch
Auto-Level/Gain
No
Frequency Response
50 Hz to 16 kHz
Sync Method
2.4 GHz QPSK
Display
Single-LED Indicators Only
Microphones
Microphone Type
4x Built-In (Clip-On Transmitter)
Polar Pattern
Omnidirectional
Frequency Response
50 Hz to 16 kHz
Sensitivity
-42 dB
Color
Black
Power
Receiver Battery Type
1x Built-In Rechargeable – 200 mAh
Receiver Battery Life
7 Hours
Transmitter Battery Type
1x Built-In Rechargeable – 110 mAh
Transmitter Battery Life
7 Hours
Battery Charging Time
2 Hours
Input Power
3.7 VDC
Physical
Environmental Resistance
No
Dimensions
Receiver:
0.8 x 2.6 x 0.5″ / 20.2 x 65 x 12.8 mm
Transmitter:
0.7 x 2.3 x 0.4″ / 17.7 x 59 x 10 mm
Weight
Receiver:
0.6 oz / 18 g
Transmitter:
0.4 oz / 12.5 g
Microphone:
Not Specified
Packaging Info
Package Weight
0.59 lb
Box Dimensions (LxWxH)
6.4 x 3.8 x 2.7″

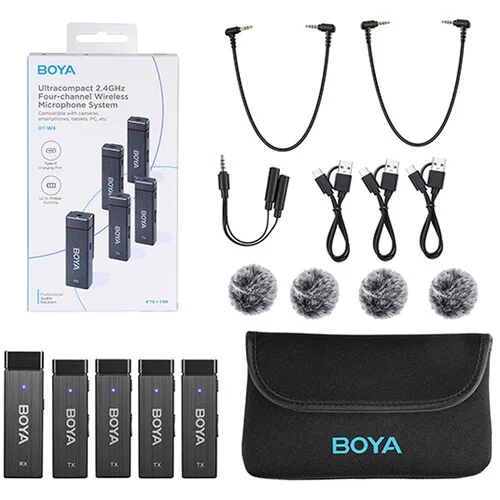

In The Box

  • BOYA BY-W4 Ultracompact 4-Person Wireless Microphone System for Cameras and Smartphones (2.4 GHz)
  • 4 x Transmitter
  • Receiver
  • 3.5mm TRRS to TRS Cable
  • 3.5mm TRRS Cable
  • 3.5mm TRRS Male to Dual TRRS Female Cable
  • 3 x USB-C Charging Cable
  • 4 x Furry Windscreen
  • Carrying Pouch
