BOYA BY-V4 Ultracompact 4-Person Wireless Microphone System with 3.5mm TRS Connector for Cameras & Smartphones (2.4 GHz)

BOYA

Key Features
  • For Content Creation
  • 4-Person Shoots with Camera or Phone

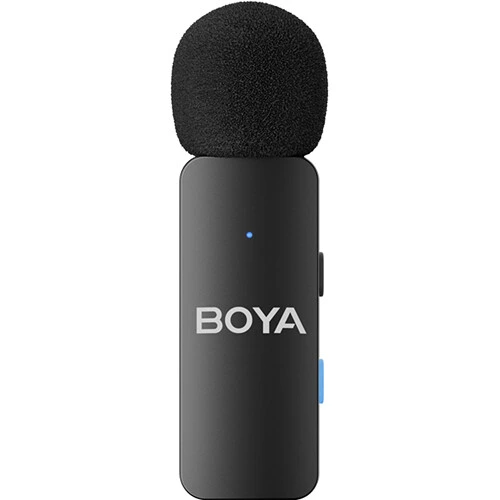

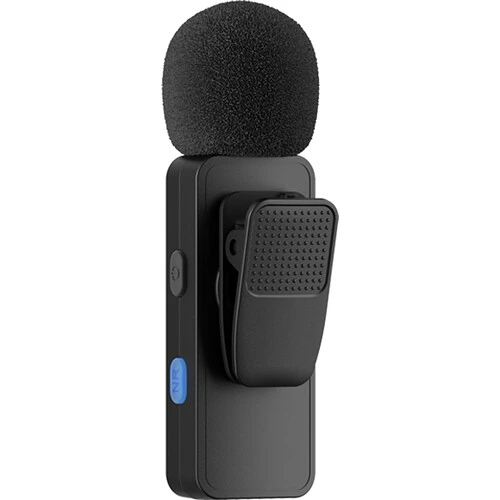

  • 4 x Transmitters with Built-In Mic

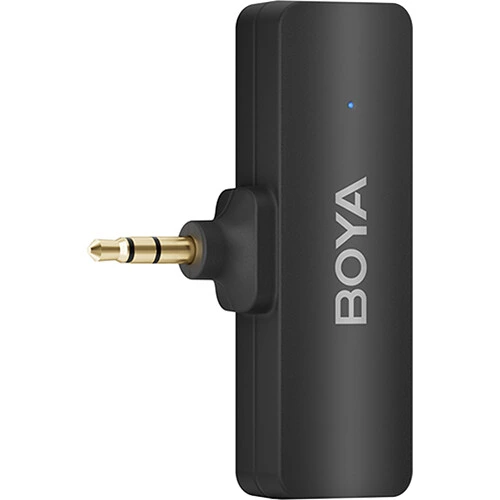

  • Four-Channel Plug-In 3.5mm Receiver
  • 656.2′ Transmission Distance
  • USB-C Charging Ports
  • Noise Reduction Mode, LED Indicators

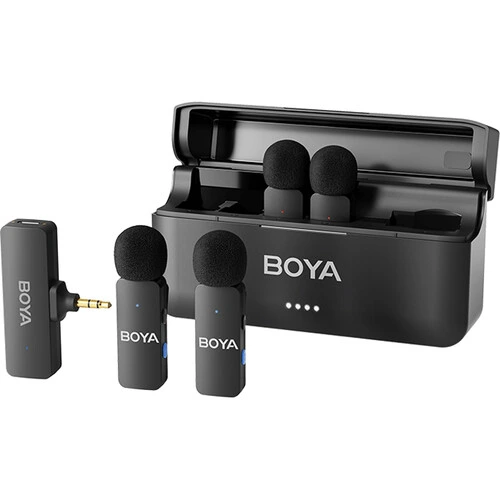

  • Charging Case, 6-Hour Battery Life

 26,000

BOYA BY-V4 Overview

Capture audio in your next four-person vlog for YouTube or Tiktok livestream with your compatible camera or smartphone using BOYA BY-V4 Ultracompact 4-Person Wireless Microphone System. The system includes four ultracompact clip-on transmitters with built-in omnidirectional microphones and a four-channel, plug-in receiver with a 3.5mm TRS connector, which inserts directly into your device. Attach the transmitters to your talent’s lapel and record audio for social media. All of the components can communicate from up to 656.2′ away via 2.4 GHz frequency.

Use the LED indicators on each unit to view your connection status. Onboard controls on each transmitter allow you to toggle noise-reduction mode for clearer vocals or mute the unit entirely. A switch on the receiver allows you to select either 2TX or 4TX modes, depending on how many on-camera talent you have. Built-in rechargeable batteries power the transmitters for up to 6 hours at a time. When connected to two transmitters, the receiver has a 10-hour battery life, which reduces to 6-hours when connected to all four transmitters. Use USB-C charging ports or the included charging case to recharge the components in 2 hours once depleted.

BOYA BY-V4 Features at a Glance

  • 2.4 GHz frequency, 656.2′ transmission distance
  • Noise-reduction mode, mute mode
  • 2TX and 4TX receiver modes
  • LED indicators
  • Charging case with 1500mAh battery

If you prefer Boya products, check out the full collection in our Boya Microphones category

To verify specifications and warranty information, head to the Boya Official Website.

BOYA BY-V4 Specs

Weight 0.65 lbs
Dimensions 6.2 × 3.6 × 2.3 in
Brands

Key Specs
Wireless Technology
Digital 2.4 GHz
Diversity
Non-Diversity
Max Operating Range
656.2′ / 200 m (Line of Sight)
Receiver Type
1x Plug-In (3.5mm TRS)
Number of Audio Channels
4
Included Transmitters
4x Clip-On
Microphone Type
4x Built-In (Clip-On Transmitter)
System
Wireless Technology
Digital 2.4 GHz
Diversity
Non-Diversity
Max Operating Range
656.2′ / 200 m (Line of Sight)
Max Transmitters per Band
4
Latency
20 to 30 ms
Encryption
No
Built-In Recorder
No
Timecode Support
No
Mobile App Compatible
Yes: Android & iOS TRS Jack
Receiver
Receiver Type
1x Plug-In (3.5 TRS)
Mounting Options
(with Included Hardware)
Antenna
1x Internal PIFA
Number of Audio Channels
4
Audio I/O
No
USB/Lightning Connectivity
1x USB-C Female (Charging)
USB Class Compliant
Frequency Response
20 Hz to 20 kHz
Display
Single-LED Indicators Only
Power Requirements
Bus Power (USB)
Transmitters
Included Transmitters
4x Clip-On
RF Output Power
10 mW
Antenna
Internal PIFA
Input Level
Microphone
Audio I/O
No
USB I/O
1x USB-C (Charging)
Muting
Off/On Switch
Auto-Level/Gain
Yes
Frequency Response
20 Hz to 20 kHz
Sync Method
2.4 GHz QPSK
Display
Single-LED Indicators Only
Microphones
Microphone Type
4x Built-In (Clip-On Transmitter)
Polar Pattern
Omnidirectional
Frequency Response
20 Hz to 20 kHz
Maximum SPL
120 dB
Sensitivity
-42 dB
Color
Black
Power
Receiver Battery Type
1x Built-In Rechargeable
Transmitter Battery Type
1x Built-In Rechargeable – 95 mAh
Transmitter Battery Life
6 Hours
Battery Charging Time
2 Hours
Charging Case
Battery
1500 mAh Lithium-Ion Rechargeable
Recharge Time
2 Hours
Charging Input
USB-C
Input Power
5 VDC at 2 A
Physical
Environmental Resistance
No
Dimensions
Case:
35.4 x 4.8 x 1.5″ / 899.5 x 123 x 38.5 mm
Receiver:
2.5 x 0.7 x 0.4″ / 62.5 x 18.3 x 10.2 mm
Transmitter:
2.5 x 0.7 x 0.4″ / 62.6 x 18.3 x 10.2 mm
Weight
Case:
5.6 oz / 160 g
Receiver:
0.3 oz / 9 g
Transmitter:
0.4 oz / 10.5 g
Packaging Info
Package Weight
0.65 lb
Box Dimensions (LxWxH)
6.2 x 3.6 x 2.3″

In The Box

  • BOYA BY-V4 Ultracompact 4-Person Wireless Microphone System with 3.5mm TRS Connector for Cameras & Smartphones (2.4 GHz)
  • 4 x Transmitter
  • Plug-In 3.5mm Receiver
  • Charging Case
  • USB-A to USB-C Cable
  • 4 x Foam Windscreen
  • Pairing Pin
  • Sticker Sheet
