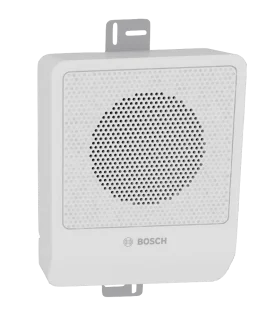

Bosch LB10-UC06-Fx Cabinet loudspeakers 6W flat – White

Bosch LB10-UC06-Fx Overview

The Bosch LB10-UC06-Fx 6W Flat Cabinet Loudspeaker is a compact, cost-effective loudspeaker designed for clear speech reproduction and background music in commercial and indoor public address applications. With a durable ABS enclosure, 100V line operation, multiple power settings, and wide sound coverage, it is suitable for offices, retail stores, schools, hotels, restaurants, public buildings, and other indoor environments.

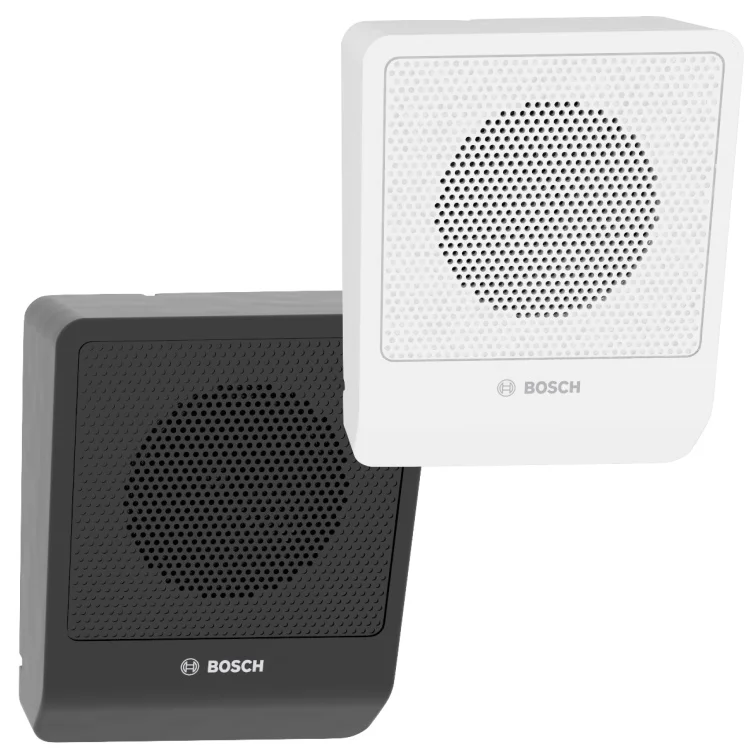

The LB10-UC06-Fx is available in white and black finishes and includes mounting brackets for convenient wall or ceiling installation. Its slim flat design provides a discreet appearance while delivering reliable audio performance for distributed sound systems.

Key Features

• 6W Rated Power: Provides up to 6W output with selectable 6W, 3W, 1.5W, and 0.75W power settings.
• 100V Line Loudspeaker: Designed for integration with 100V public address and distributed audio systems.
• Clear Speech Reproduction: Designed to provide good speech intelligibility for announcements and voice communication.
• Background Music: Suitable for background music reproduction in commercial and public spaces.
• Wide Sound Coverage: Provides a 168° horizontal and vertical opening angle at 1kHz, with 89° coverage at 4kHz.
• ABS Construction: Durable ABS enclosure designed for reliable indoor installation.
• Flat Cabinet Design: Compact profile helps the speaker blend into walls and interiors.
• Wall or Ceiling Mounting: Supplied with mounting brackets for flexible installation.
• Multiple Power Taps: Select 6W, 3W, 1.5W, or 0.75W according to the requirements of the sound system.

Clear Speech and Background Music

The Bosch LB10-UC06-Fx cabinet speaker is designed for applications where clear announcements and background music are important. Its effective frequency range of 145Hz to 18kHz provides suitable audio reproduction for speech and general background music applications

100V Line Public Address Speaker

With a 100V rated input, the LB10-UC06-Fx is designed for distributed public address systems where multiple speakers can be installed throughout a building. Its selectable power settings allow installers to configure the speaker according to the required sound coverage and amplifier capacity.

The available power taps are 6W, 3W, 1.5W, and 0.75W, providing flexibility for different installation requirements.

Easy Wall or Ceiling Installation

The speaker comes with mounting brackets for wall or ceiling installation, making it suitable for a range of fixed indoor audio applications. Its flat cabinet design provides a clean appearance when installed in commercial and public spaces.

Ideal For

• Public address systems
• Offices and commercial buildings
• Retail stores and shopping areas
• Schools and educational facilities
• Hotels and hospitality venues
• Restaurants and cafés
• Indoor background music systems
• Speech and announcement systems
• Commercial distributed audio installations
• 100V line sound systems

Why Choose the Bosch LB10-UC06-Fx?

The Bosch LB10-UC06-Fx 6W Flat Cabinet Loudspeaker offers a practical combination of compact design, clear speech reproduction, flexible power selection, and reliable 100V line connectivity. Its ABS enclosure and included mounting brackets make it suitable for professional fixed installations where both appearance and dependable audio performance matter.

With 6W/3W/1.5W/0.75W power selection, wide coverage, and both black and white versions available, the LB10-UC06-Fx can be adapted to a variety of indoor public address and background music applications.
