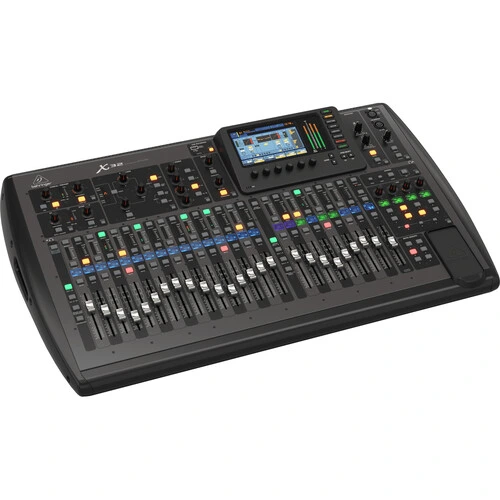

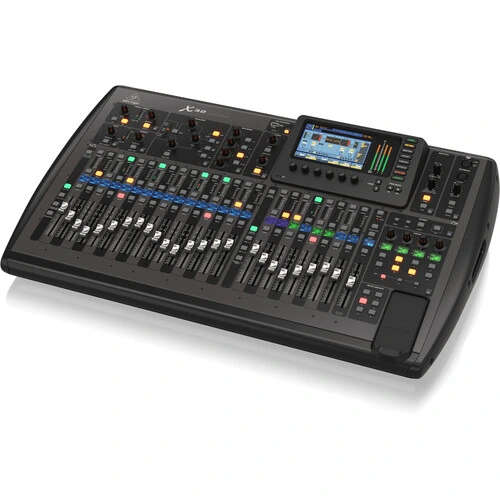

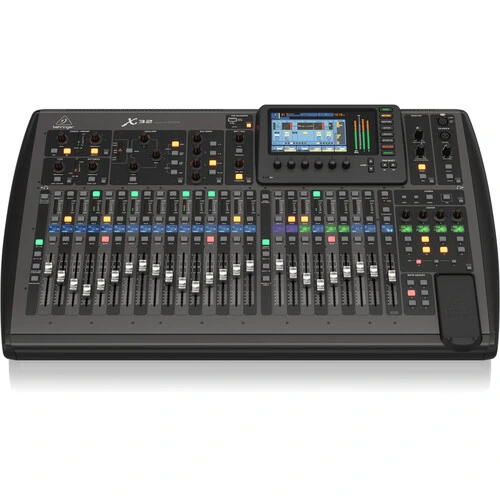

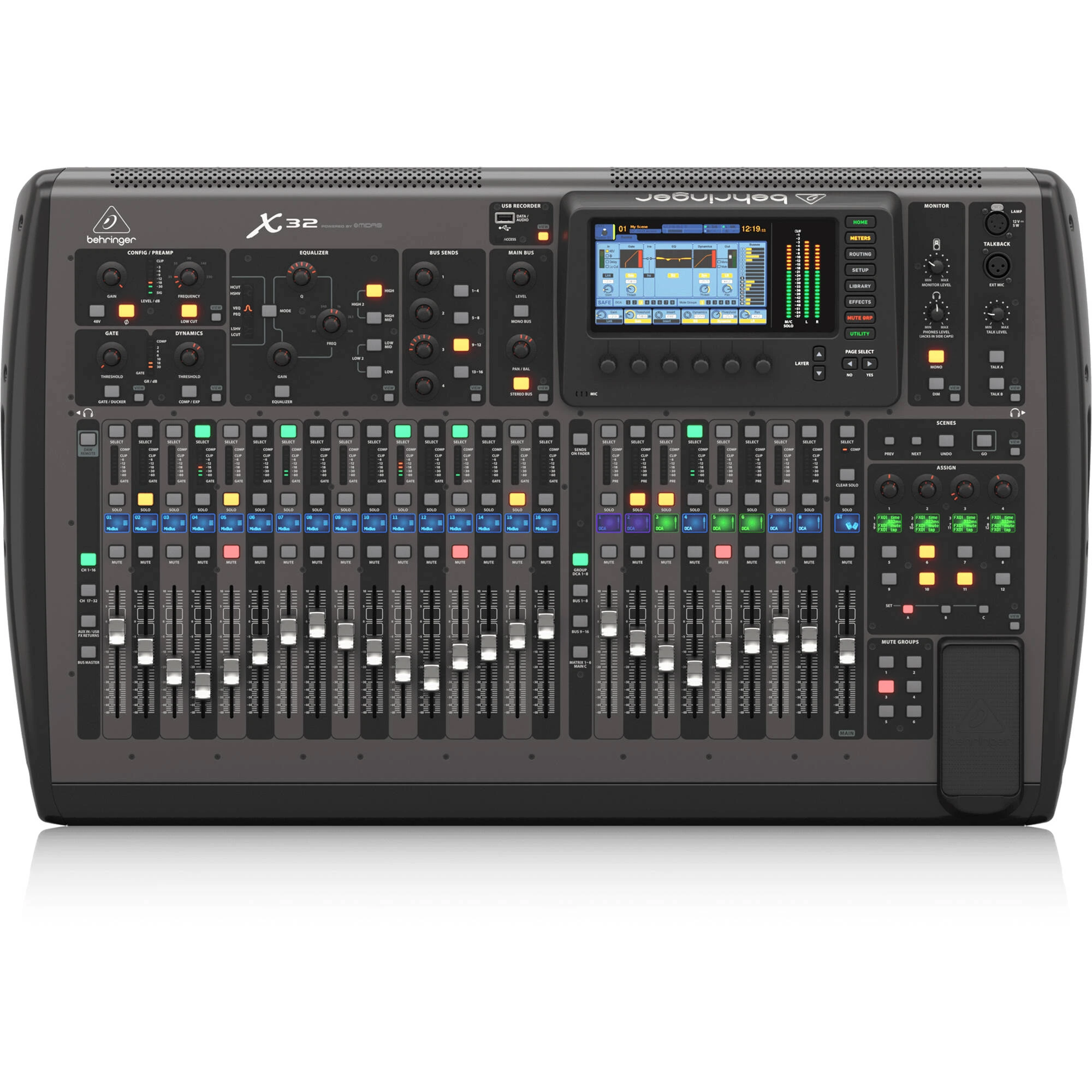

Behringer X32 32×16 Digital Mixing Console

Behringer X32 Overview

Ideal for professional live and recording applications, the Behringer X32 is a 40-channel, 25-bus digital mixing console that provides a wealth of features in a compact design. The Behringer X32 mixer features 32 fully programmable MIDAS-designed mic preamps. The Main LCR (left, center, right) channels, 16 mix busses, and 6 independent matrix mix busses all have 6-band parametric EQs and integrated dynamics processing for excellent sonic tailoring capabilities.

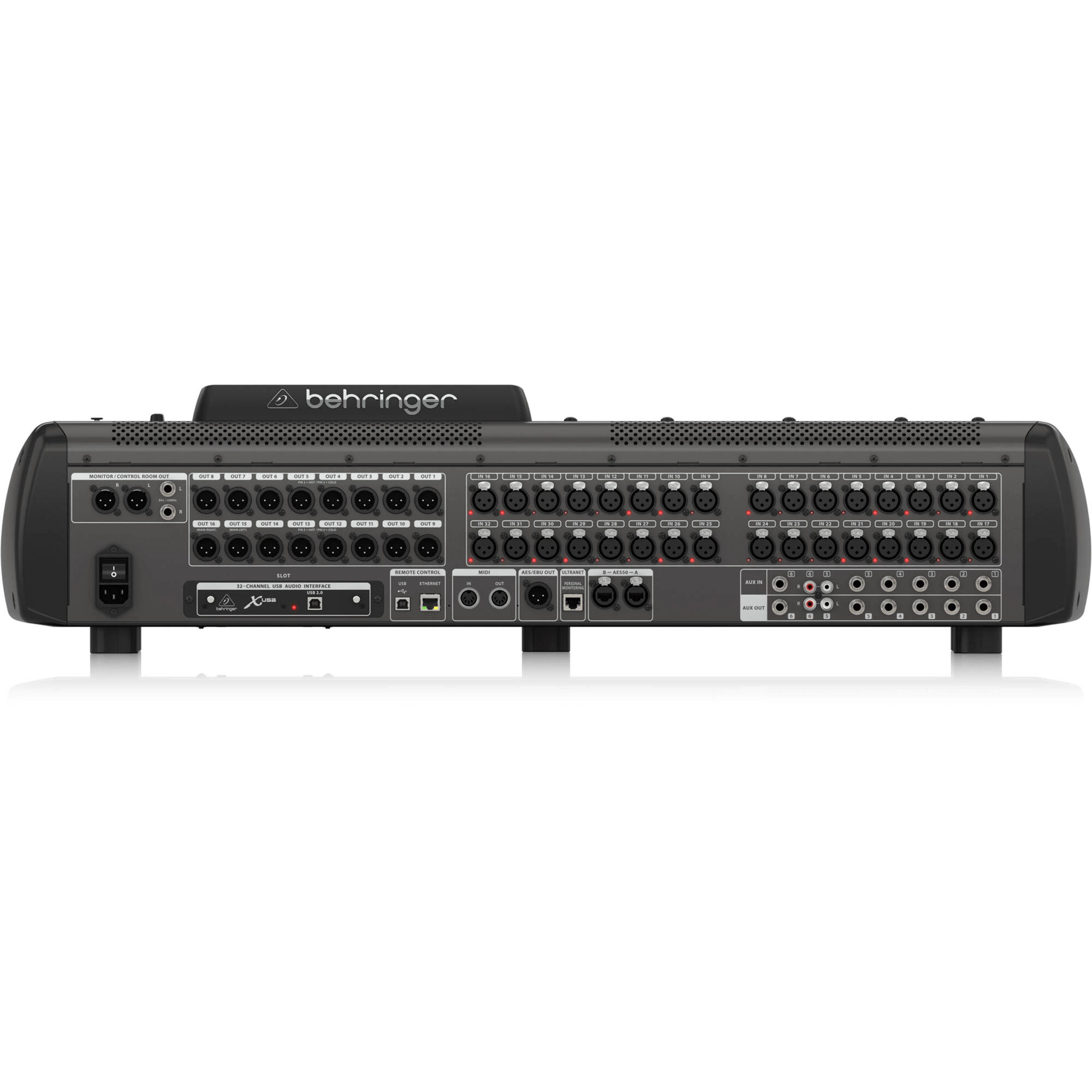

The Behringer X32 mixer also has 16 analog XLR outputs as well as 6 balanced line-level 1/4″ Aux inputs and outputs and two 1/4″ headphone jacks. The talkback section allows you to communicate with the integrated mic or an external mic. The Behringer X32 mixer also has a pair of AES50 ports that feature KLARK TEKNIK SuperMAC networking capability for use with 48-channel digital snakes for ultralow jitter and latency. The integrated expansion port ships with a 32 x 32 X-USB USB audio card installed.

Behringer X32 Features

• 40-input channel, 25-bus digital mixing console for Studio and Live application
• 32 Midas-designed, fully programmable mic preamps for audiophile sound quality
• 25 Fully automated motorized 100mm faders allow for instant overview, powerful scene management and DAW control
• 16 XLR outputs plus 6 additional line in/outputs, two phone connectors, and a talkback section with integrated or external mic
• Individual and dynamic LCD Scribble Strips on all channels and buses creating easy assignment and intuitive channel distinction
• 32 x 32 channel USB 2.0 audio interface, with DAW remote control emulating HUI and Mackie Control
• iPad and iPhone apps for professional remote operation available free of charge, no host PC required
• High-resolution 7″ day-viewable Color TFT for easy viewing of workflow components and parameters
• Main LCR, 6 matrix buses, and 16 mix buses each featuring inserts, 6-band parametric EQ’s and full dynamics processing, plus 8 DCA and 6 mute groups
• Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L and PCM70, EMT250, and Quantec QRS, etc.
• 40-bit floating-point DSP features “unlimited” dynamic range with no internal overload and near-zero overall latency (0.8 msec)
• Powerful scene management for convenient handling of complex productions
• 48-channel Digital Snake ready via AES50 ports, featuring Klark Teknik’s SuperMAC networking capability for ultralow jitter and latency
• USB type-A connector, providing file storage and uncompressed stereo recordings, plus show presets and system updates
• Dedicated and easy-to-use channel-strip section with direct-access controls and graphic user interface for intuitive workflow
• Additional user-definable control section allows for on-the-fly adjustments of your favorite parameters
• ULTRANET connectivity for Behringer’s P-16 Personal Monitoring System plus AES/EBU stereo digital output and MIDI
• Networked remote control for show setups with on-screen software editor via Ethernet
• Built-in expansion port for audio interface cards or digital networking bridges
• Future firmware updates, including new FX “Plug Ins”, downloadable from behringer.com free of charge

Looking for a reliable Digital mixers? Check out our Digital Mixer available at ProAudio Pakistan for great deals.

For detailed specs and official info, visit the Behringer X32 product page on Behringer’s website.
