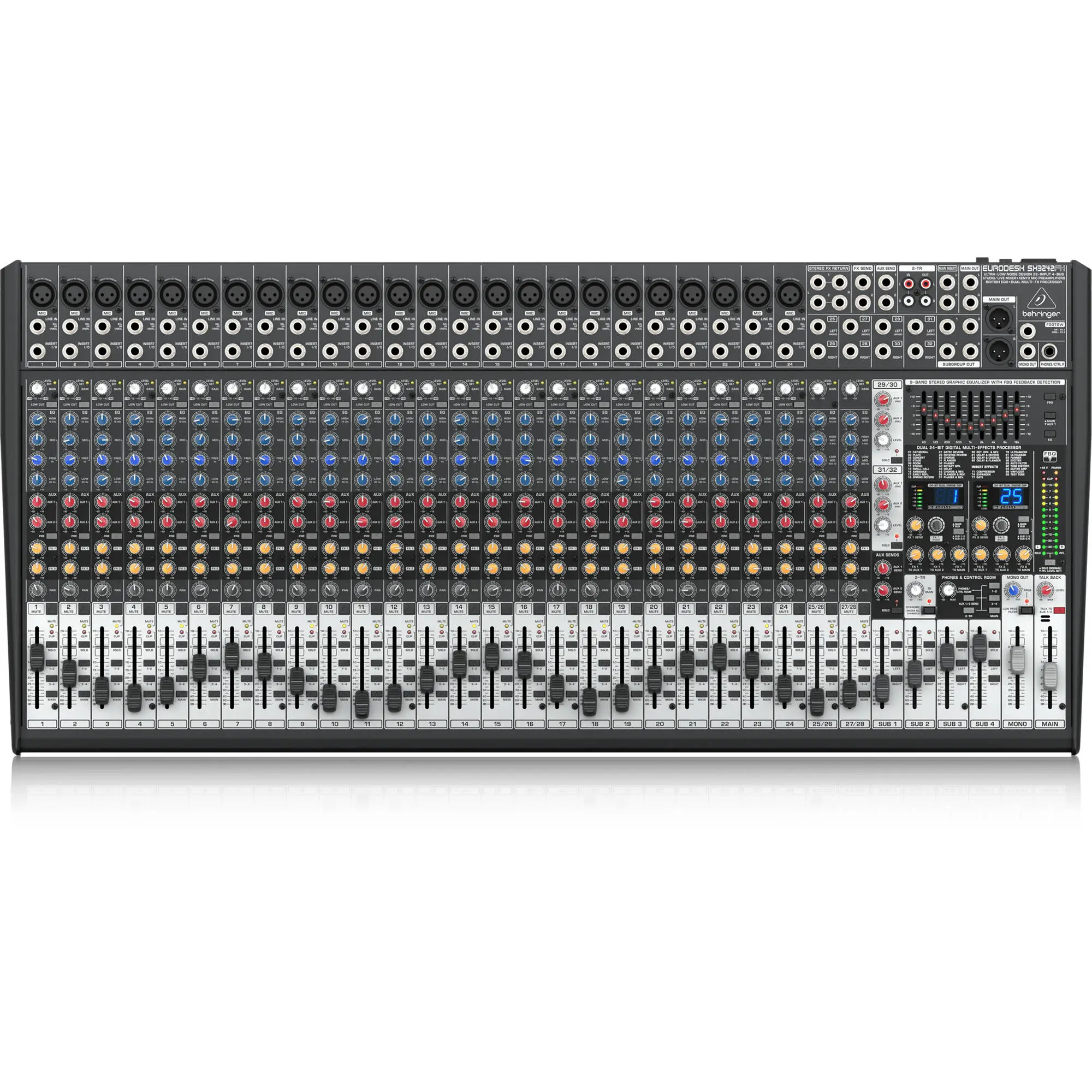

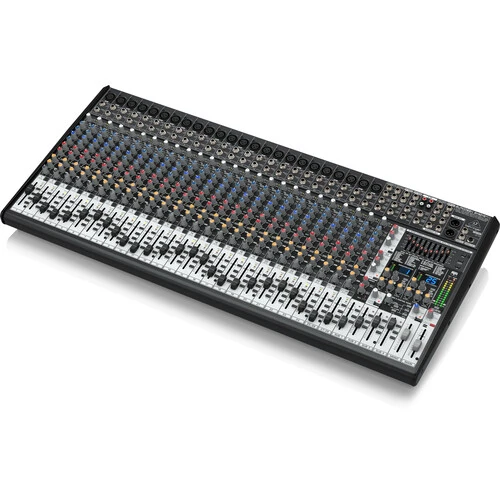

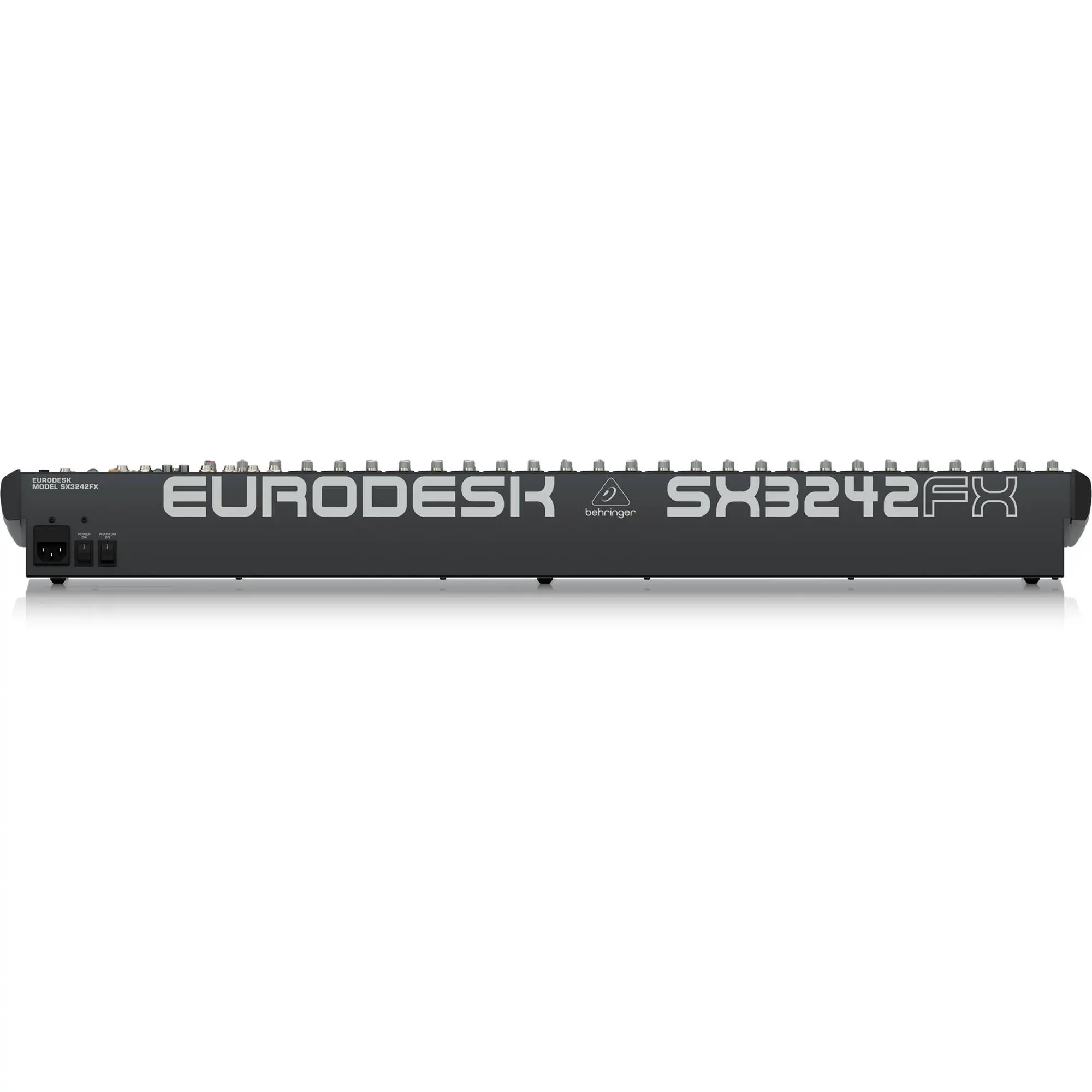

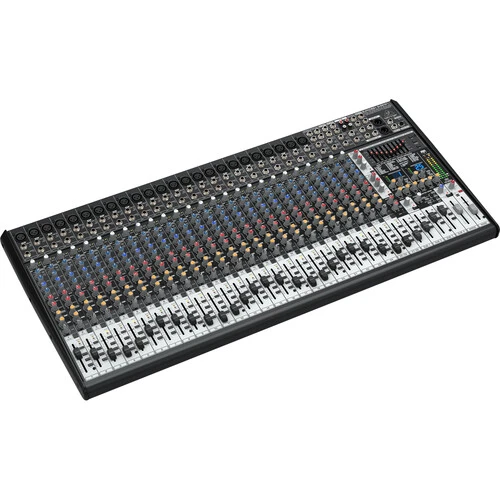

Behringer SX3242FX Eurodesk 32-Input 4-Bus Studio/Live Mixer with Digital FX

Behringer SX3242FX Eurodesk Overview

Achieve premium-quality sound for live performance and studio recording with the Behringer SX3242FX Eurodesk, a 32-input, 4-bus analog mixer with dual 24-bit digital effect engines and a 9-band graphic EQ that works with the integrated feedback detection system. The mixer provides remarkably clear sound thanks to the 24 studio-quality XENYX mic preamps with phantom power for working with high-end condenser microphones.

All mono channels include 1/4″ line inputs, low-cut filters, 3-band EQs, and channel inserts for adding your favorite outboard gear. Channels 25-32 feature stereo 1/4″ inputs. Channels 25-28 offer 4-band EQs, while channels 29-32 include level controls with sends for Aux 1/2 only. The Behringer SX3242FX Eurodesk provides two XLR and 1/4″ main outputs with inserts, four subgroup outputs, and a 1/4″ combo control room/headphone output. Additionally, there are four 1/4″ aux sends and two 1/4″ stereo returns. The main output also features a dedicated mono output with a variable 18 dB low-pass filter (30 to 200 Hz) for dialing in the perfect mix.

Behringer SX3242FX Eurodesk At a Glance

• Behringer SX3242FX Eurodesk Premium, ultralow noise high-headroom analog mixer
• 24 state-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
• Neo-classic “British” 3-band EQs with semi-parametric mid band for warm and musical sound
• 2 independent studio-grade 24-bit stereo FX processors with 99 awesome presets including reverb, chorus, flanger, delay, pitch shifter, and various multi-effects
• High-precision 9-band stereo graphic EQ allows precise frequency correction of monitor or main mixes
• Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies
• Peak LEDs, Mute, Main mix, and subgroup routing switches, Solo, and PFL functions on all channels
• 2 fully featured stereo input channels with 4-band EQ plus 2 additional stereo input channels with Level and pre-fader Aux controls
• Inserts on each mono channel and main mix for flexible connection of outboard equipment
• 4 Subgroup outputs and additional mono output with sweepable low-pass filter for subwoofer application
• 4 Aux sends per channel: 2 pre/post fader switchable for monitoring/FX applications, 2 post fader (for internal FX or as external send)
• Balanced main mix outputs with 1/4″ jack and gold-plated XLR connectors, separate Control room, headphone, and stereo tape outputs
• Solo-in-Place and Pre-Fader-Listen functions plus full-featured talkback section
• Standby switch mutes all channels during breaks while background music is provided via CD/Tape inputs
• Long-wearing 2.4″ logarithmic-taper faders and sealed rotary controls
• Internal auto-range power supply for maximum flexibility (100 to 240 VAC), noise-free audio, superior transient response plus low power consumption for energy saving

Sonically Superior Mic Preamps

The Behringer SX3242FX Eurodesk features the legendary, high-headroom XENYX mic preamps, which have been praised by audio engineers all over the world. These state-of-the-art mic pres represent a major step in the evolution of audio technology, and they can easily hold their own, even when compared to the most expensive stand-alone mic preamps. XENYX preamps offer a staggering 130 dB of dynamic range, with a bandwidth that extends from below 10 Hz to well above 200 kHz.

Musical British EQ

The British consoles of the 1960s and ’70s changed the sound of rock and roll. Without them, the British Invasion might not have happened. Those legendary mixing desks soon became the envy of engineers and producers all over the world. The channel EQ on the Behringer SX3242FX Eurodesk mixer is based on that very same circuitry, allowing you to imbue signals with incredible warmth and detailed musical character. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.

Dual Digital Multi-FX Processors

Every Behringer SX3242FX Eurodesk mixer features two 24-bit dual-engine stereo FX processors with 99 presets including reverb, chorus, flanger, delay, pitch shifter, and various multi-effects. Complete with a highly accurate input meter, these studio-grade effects provide stunningly professional results, and can be routed to a wide range of destinations, ensuring the ultimate in versatility.

FBQ Feedback Elimination Processor

For more than 20 years, BEHRINGER has designed and manufactured some of the most successful FBQ Feedback Elimination processors. Now, you can own and enjoy the benefits of this technology, as they have integrated their revolutionary FBQ Feedback Detection System into this Behringer SX3242FX Eurodesk Mixer, so your sound system is completely feedback-free. Utilizing an ultra-fast feedback detection system, this ingenious circuitry helps you recognize and tame feedback frequencies immediately. When feedback is sensed in a specific frequency range, the LED on the associated EQ fader illuminates, showing you at a glance which fader to lower to overcome the feedback.

Special Features

The 32-input Behringer SX3242FX Eurodesk comes equipped with 24 legendary, phantom-powered XENYX mic preamps, 4 stereo input channels, 2 aux sends and 2 stereo FX returns, plus inserts on all mono channels. Other features include: 4 subgroups for mixing versatility; Main inserts (the ideal path for connecting graphic equalizers or compressor/limiters); Mono out with sweepable low-pass filter for direct connection to active subwoofers, and a dedicated talkback channel, with a built-in mic for communicating with the talent.
