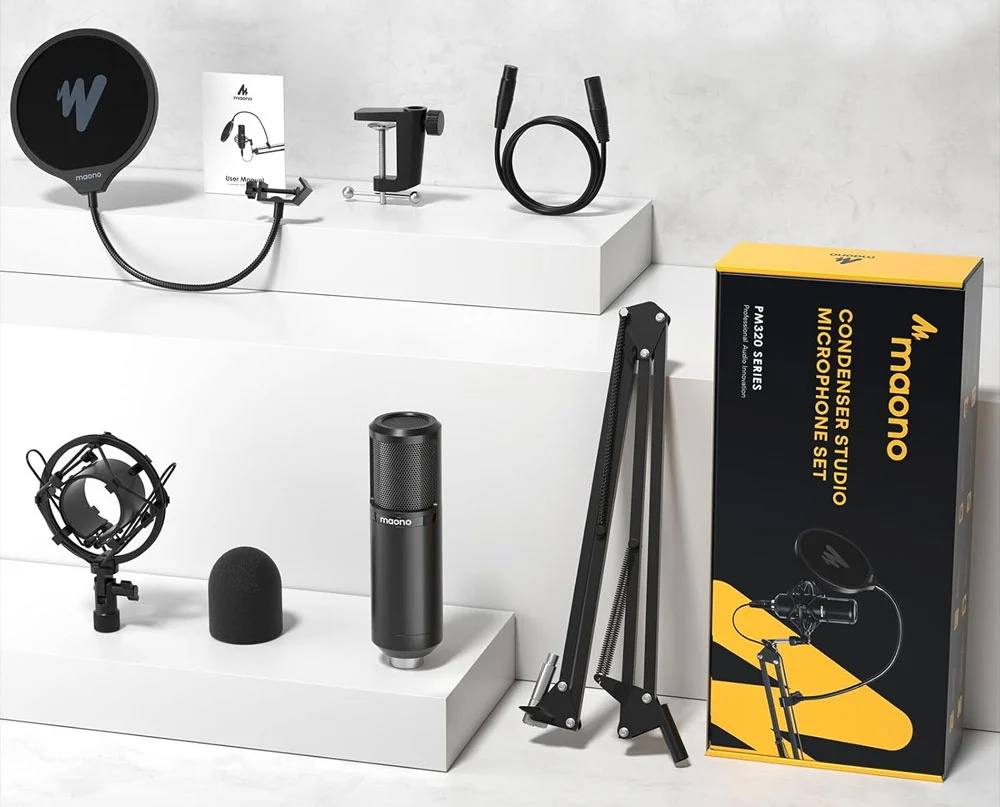

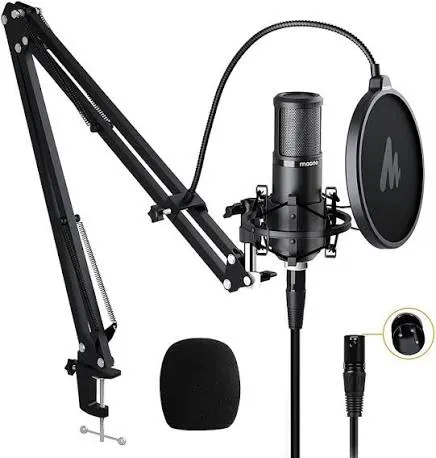

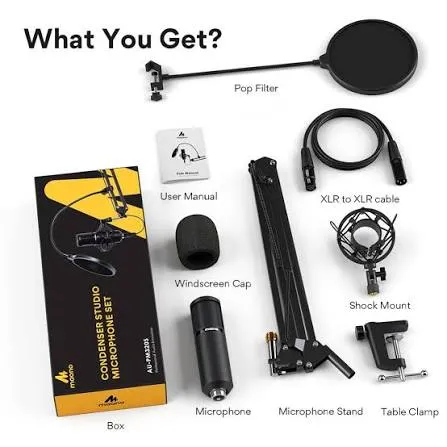

Maono AU-PM320S Studio Condenser XLR Microphone Kit

Maono AU-PM320S Overview

Upgrade your recording setup with the Maono AU-PM320S Studio Condenser XLR Microphone, a professional cardioid condenser microphone designed for clear, detailed sound recording. With its 16 mm condenser capsule, wide 20 Hz–18 kHz frequency response, high SPL handling, and reliable XLR connection, the PM320 is an excellent choice for podcasting, voice-over, vocals, music recording, streaming, broadcasting, and home studio production.

The Maono AU-PM320S is engineered to capture vocals and instruments with natural detail while its cardioid polar pattern focuses on sound from the front of the microphone and helps reduce unwanted sound from the sides and rear.

Maono AU-PM320S Key Features

• Microphone Type: Condenser
• Polar Pattern: Cardioid
• Capsule: 16 mm condenser capsule
• Frequency Response: 20 Hz–18 kHz
• Sensitivity: -34 dB ±3 dB
• Impedance: 200 Ω ±30%
• Maximum Input Sound Level: 140 dB SPL
• Signal-to-Noise Ratio: 76 dB
• Power Requirement: 48V DC phantom power
• Output: 3-pin XLR
• Applications: Podcasting, vocals, voice-over, streaming, broadcasting and music recording

Clear and Detailed Audio Recording

The AU-PM320S features a 16 mm condenser capsule with a 20 Hz–18 kHz frequency response, allowing it to capture a broad range of vocal and instrumental frequencies. Its sensitivity of -34 dB ±3 dB helps capture subtle details, making it suitable for spoken-word content, vocals, acoustic instruments, podcasts, and voice-over work.

Cardioid Polar Pattern for Focused Sound

The cardioid pickup pattern is designed to capture sound primarily from the front while helping minimize unwanted ambient sound from the sides and rear. This makes the Maono AU-PM320S a practical choice for recording vocals, podcasts, streaming, online content, and other applications where focused voice capture is important.

Professional XLR Connection

The Maono AU-PM320S uses a standard 3-pin XLR output, making it suitable for use with compatible audio interfaces, mixers, microphone preamps, and other professional audio equipment. Unlike USB microphones, the PM320 is designed for an XLR-based recording setup.

48V Phantom Power Required

As an XLR condenser microphone, the AU-PM320S requires 48V DC phantom power to operate. It can be connected to a compatible audio interface, mixer, preamp, or dedicated phantom-power source.

High SPL Handling

With a maximum input sound level of 140 dB SPL at 1 kHz and 1% THD, the PM320 can handle relatively loud sound sources while maintaining reliable recording performance. This makes it suitable for a range of applications, from spoken-word recording and vocals to music production.

Why Choose the Maono PM320?

The Maono AU-PM320S XLR condenser microphone combines detailed sound capture, a focused cardioid pickup pattern, high SPL handling, and a professional XLR connection in a versatile studio microphone. It is a strong option for creators, podcasters, musicians, voice-over artists, streamers, and anyone looking to improve the quality of their audio recording setup.

Note: The PM320 requires a compatible 48V phantom-power source or audio interface and cannot be connected directly to a computer as a USB microphone.
