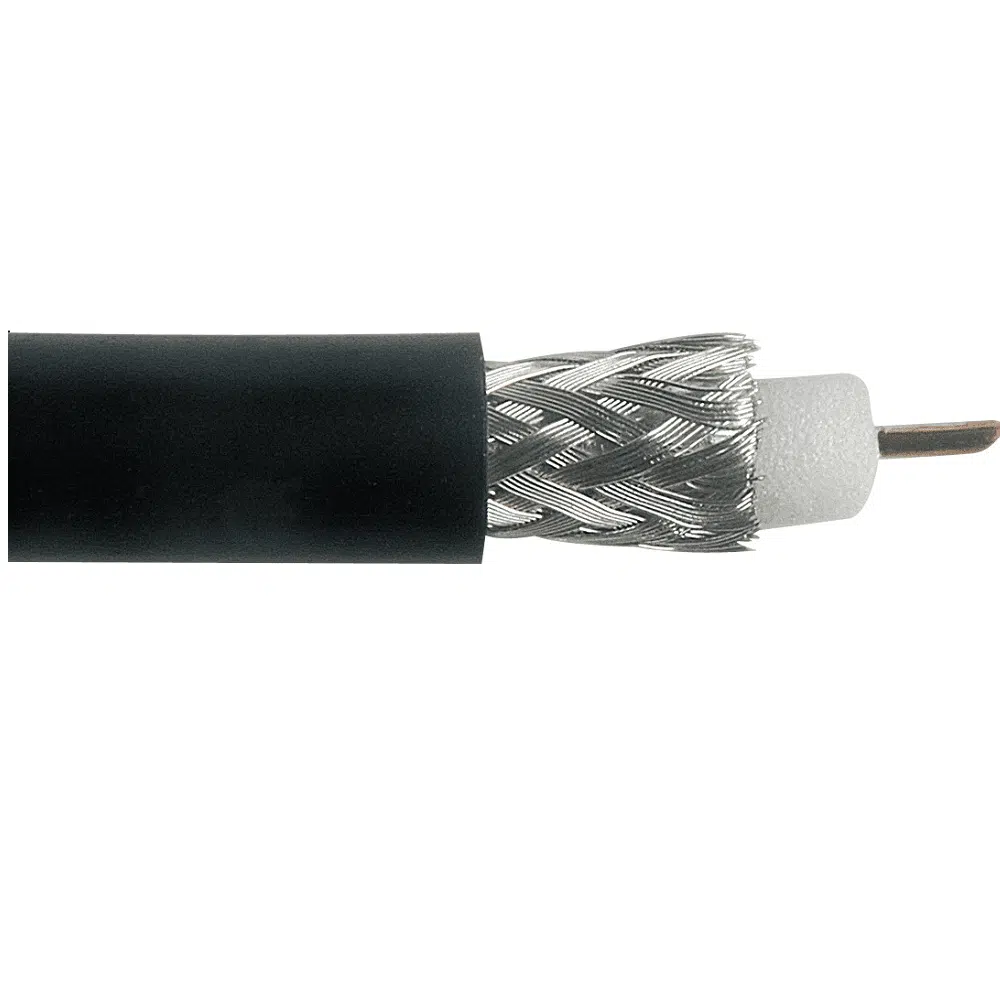

Canare L-4.5CHD Video Coaxial Cable
Canare L-4.5CHD - HD-SDI Digital Video Coaxial Cable - Black
Canare L-4.5CHD Video Coaxial Cable
Canare L-4.5CHD - HD-SDI Digital Video Coaxial Cable - Black
, , ,

Canare L-4.5CHD – HD-SDI Digital Video Coaxial Cable – Black

Canare
Availability:

In stock

SKU: L-4.5CHD200M
Brand: Canare

Key Features

  • 100% Sweep Tested
  • Supports SMPTE 259M, 292M & 424M
  • UL 1666 Riser Flame Test Conformant
  • Ideal for 3G-SDI / HD-SDI Distribution

Call for Price

Canare L-4.5CHD Overview

Styled in black, the Canare L-4.5CHD Video Coaxial Cable is a 75-ohm precision digital video cable that measures 984.25′. It’s designed for professional AV applications, meeting the needs of serial digital video transfers and adhering to HDTV standards. It supports SMPTE 259M, 292M, and 424M. The cable is suitable for 3G-SDI / HD-SDI distribution.

Features:

  • Highly foamed PE insulation for improved attenuation characteristics
  • Multi-layer insulation offers a different foaming ratio to each layer for increased strength
  • Tinned copper braid with aluminum foil for excellent shielding
  • L-2.5CHD is ideal for internal rack wiring
  • UL 1666 Riser flame test conformant
  • Ideal for HD-Serial digital video, satellite head ends, HDTV upgrades, broadband facilities, SMPTE 259M, 292M, and 424M format signal applications

SKU: L-4.5CHD200M
Brand: Canare

SKU: L-4.5CHD200M Categories: , , , Tags: , , , , , , , , , ,
Weight 48 lbs
Dimensions 17.5 × 17 × 11 in
Brands

Canare L-4.5CHD Specs

Outer Diameter
Nominal: 0.27″ / 7 mm
Inner Conductor: 0.04″ / 1.02 mm
Insulation: 0.18″ / 4.57 mm
Conductor
Inner Conductor Composition: 1/1.02A (18) Quantity/mm (AWG)
Outer Conductor Shield Coverage and Composition (91% or More): 0.14TA mm, 6 Ends, 24 Carriers
Resistance
Inner Conductor: ≤23.3 Ohms/km
Outer Conductor: ≤9.9 Ohms/km
Static Capacity
53 nF/km @ 1 kHz
Impedance
75 ±3 Ohms
Attenuation
17.4 dB/100 m at 750 MHz
Maximum Transmission Distance
Composite NTSC: 1807.74′ / 551 m @ 143 Mb/s (SMPTE 259M)
Composite PAL: 1653.54′ / 504 m @ 177 Mb/s (ITU-R BT.601)
Component (4:2:2): 1361.55′ / 415 m @ 270 Mb/s (SMPTE 259M)
Component (4:2:2) 16 x 9: 1184.38′ / 361 m @ 360 Mb/s (SMPTE 259M)
SDI: 961.28′ / 293 m @ 540 Mb/s (SMPTE 344M)
HD-SDI: 377.29′ / 115 m @ 1.5 Gb/s (SMPTE 292M)
HD 1080p: 259.18′ / 79 m @ 3 Gb/s (SMPTE 424M)
Length
200 m

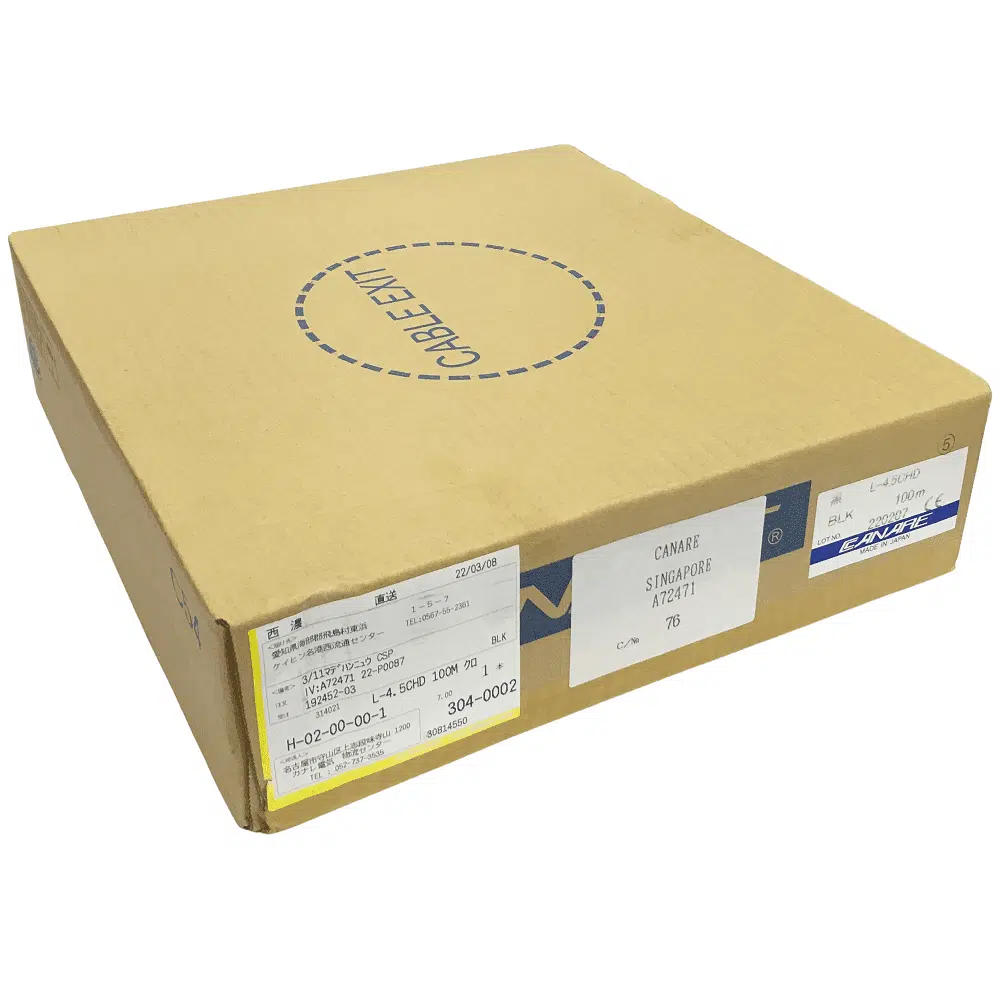

Packaging Info
Package Weight
48 lb
Box Dimensions (LxWxH)
17.5 x 17 x 11″

In The Box

Canare L-4.5CHD Video Coaxial Cable
