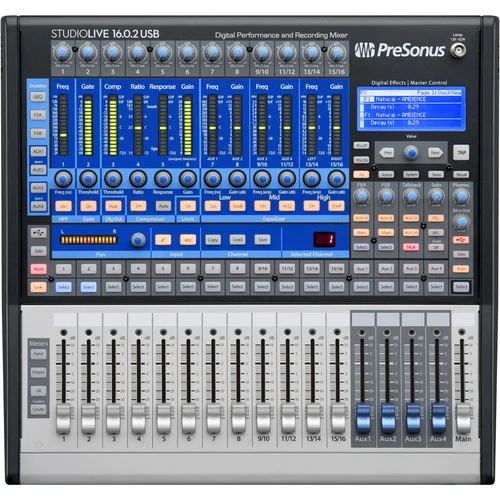

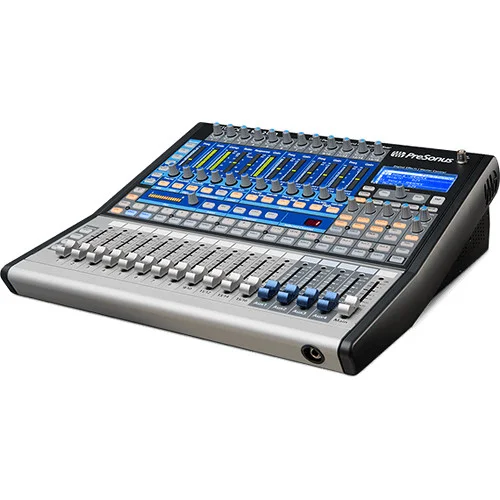

PreSonus StudioLive 16.0.2 USB Performance & Recording Digital Mixer
PreSonus StudioLive 16.0.2 USB Performance & Recording Digital Mixer
, , ,

PreSonus StudioLive 16.0.2 USB Performance & Recording Digital Mixer

PRESONUS
Availability:

In stock

The PreSonus StudioLive 16.0.2 USB Performance & Recording Digital Mixer is a compact yet powerful digital mixer with an 18 x 16 USB interface for direct recording with Mac- or Windows-based DAW software.

Key Features

  • 16 Total Input Channels
  • 18-Input & 16-Output USB Interface
  • 8 Mono Mic & Line Input Channels
  • 4 Stereo Line Channel Inputs
  • Compact Size
  • Twelve Class-A XMAX Mic Preamps
  • Two 2-Bit Digital Effects Processors
  • Full Dynamics Processing
  • iPad, iPhone, or Laptop Remote Control
  • Mac & Windows OS

Call for Price

PreSonus StudioLive 16.0.2 USB

The PreSonus StudioLive 16.0.2 USB Performance & Recording Digital Mixer is a compact yet powerful digital mixer with an 18 x 16 USB interface for direct recording with Mac- or Windows-based DAW software. Its compact frame features 16 inputs—including 8 mono mic/line balanced inputs and 4 stereo line input channels—all fitted with 60mm precision faders. All mono input channels feature PreSonus’ high-headroom, Class-A XMAX mic preamplifiers for maximum gain, a low noise floor, and detailed audio quality.

The PreSonus StudioLive 16.0.2 USB delivers the gamut of DSP processing including gate, compression, channel EQ, 31-band graphic EQ, and two stereo 32-bit digital effects processors with customizable reverb and delay presets. There are 2 dedicated effects buses and 4 auxiliary buses (pre- and post-fader assignable) for flexible signal routing. The mixer’s flexible remote-control features and its compact design allow for a variety of portable applications.

The StudioLive 16.0.2 USB is bundled with PreSonus Studio One Artist recording software, Capture, UC Surface, and QMix software.  UC Surface enables full-duplex remote control with an iPad, iPhone, or laptop, making it an ideal solution for use on stage, in live sound reinforcement applications and remote recording, and more. The Studio Magic Plug-in Suite is also included, which adds a wealth of fresh sound and effects to Studio One. The StudioLive 16.0.2 ships with a power cord and a USB cable.

8 Mono Mic/Line Channel Inputs

  • High-headroom, Class-A XMAX mic preamplifier
  • XLR mic and balanced 1/4″ line inputs
  • 60mm precision fader

4 Stereo Line Channel Inputs

  • High-headroom, Class-A XMAX mic preamplifiers
  • XLR mic inputs
  • Balanced 1/4″ line inputs
  • Unbalanced RCA line inputs
  • 60mm precision faders
  • 4 auxiliary buses

Fat Channel Signal Processing on all Channels and Buses

  • 3-band, semi-parametric EQ (individual band on/off)
  • Full-featured compressor
  • Standard downward expander
  • Limiter
  • Phase reverse (12 mic preamplifiers only)
  • Pan with dedicated 15-LED display
  • Stereo link for input channels and aux buses
  • High-pass filter
  • 18-In/16-Out USB Recording Interface (24-bit/44.1 kHz and 24-bit/48 kHz)

View details on manufacturer’s website

SKU: StudioLive 16.0.2 Categories: , , , Tags: , , , , , , , , , ,

PreSonus StudioLive 16.0.2 USB Specs

Weight 24 lbs
Dimensions 24 × 22 × 11 in
Brands

Mixer

Number of Analog Input Channels 16
Signal Processing
Gain/Trim Range Line:
-20 dB to +20 dB (Balanced)
Mic/Line:
-16 dB to +67 dB
Gate Parameters Threshold: -84 to 0 dB
Attack: .2 ms to 2.5 ms
Release: 70 ms
Compressor Parameters Threshold: -56 to 0 dB
Ratio: 1:1 to 14:1
Attack: .2 ms to 180 ms
Release: 150 ms to 1.0 sec
Knee: Soft, Hard
EQ Parameters HF Shelf:
±15 dB at 1.4 kHz to 18 kHz (Shelf or Bell Selectable)
MF Notch/Peak:
±15 dB at 260 Hz to 3.5 kHz
LF Shelf:
±15 dB at 36 Hz to 465 Hz (Shelf or Bell Selectable)
Digital Audio
Sample Rates 44.1 / 48 kHz
Bit Depth AD/DA Conversion:
24-Bit
DSP 32-Bit Floating Point
Converter Dynamic Range A/D:
118 dBA at 48 kHz
D/A:
118 dBA at 48 kHz
Jitter <20 ps RMS
Jitter Attenuation >60 dB
Performance
dBFS Reference Level +18 dBu = 0 dBFS
Frequency Response Direct Output:
20 Hz to 20 kHz 0/-0.5 dBu (Unity Gain)
Main Output:
20 Hz to 20 kHz ±0.5 dBu (Unity Gain)
Line Input to Direct Output:
10 Hz to 40 kHz -0.5 dBu (Unity Gain)
Line Input to Main Output:
20 Hz to 20 kHz -0.5 dBu (Unity Gain)
Max Input Level Line Input:
+22 dBu (Unbalanced)
Line Input:
+22 dBu at Unity Gain (Balanced)
Mic Input:
+16 dBu
Output Level Aux Output:
+18 dBu
Main Output:
+24 dBu
Monitor Output:
+18 dBu
I/O Impedance Line Input:
10 kilohms
Main Output:
100 ohms
Aux Output:
100 ohms
Monitor Output:
100 ohms
Mic Input:
1 kilohms
Crosstalk Input to Output:
-90 dBu
Adjacent Channels:
-87 dBu
CMRR 65 dB at Unity Gain
EIN 125 dB
130 dB (A-Weighted)
SNR Line Input to Direct Output:
-105 dBA at Unity Gain (+4 dBu Reference)
Line Input to Main Output:
-95 dBA at Unity Gain (+4 dBu Reference)
Mic/Line Input to Direct Output:
-102 dBA at Unity Gain (+4 dBu Reference)
Mic/Line Input to Main Output:
-95 dBA at Unity Gain (+4 dBu Reference)
THD Line Input to Direct Output:
<0.0007% at Unity Gain (+4 dBu, Unweighted)
Line Input to Main Output:
<0.005% at Unity Gain (+4 dBu, Unweighted)
Mic/Line Input to Direct Output:
<0.005% at Unity Gain (+4 dBu, Unweighted)
Mic/Line Input to Main Output:
0.005% at Unity Gain (+4 dBu, Unweighted)

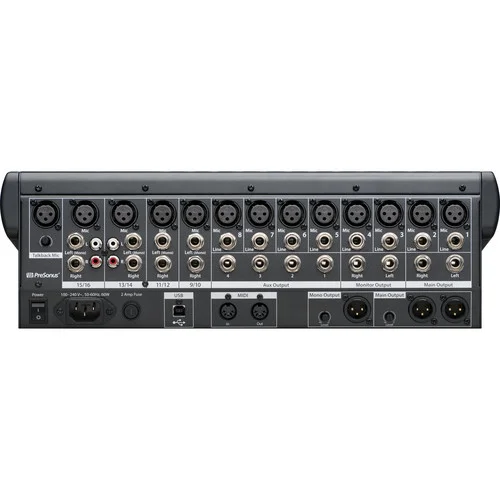

Connectivity
Analog Inputs 8 x 1/4″ TRS Balanced Input
2 x 2RCA Unbalanced Input
12 x XLR Balanced Mic Input
8 x 1/4″ TRS Balanced Line Input (4 Stereo Pairs)
Analog Outputs 2 x XLR Balanced Main Output (1 Stereo Pair)
2 x 1/4″ TRS Balanced Monitor Output (1 Stereo Pair)
Phantom Power +48 V
USB 1 x USB Type-B (USB 2.0, Host Connection)
Compatibility
OS Compatibility macOS 10.8.5 or Later
Windows 7
Windows 8.1
Windows 10
iOS 9.3 or Later
Android 5.0 or Later
Processor Requirement Intel Core 2 Duo
RAM Requirements 4 GB (8 GB Recommended)
Storage Requirements 30 GB
Mobile Device Compatibility iPad
Android Smartphone
Android Tablet
Minimum Display Resolution 1366 x 768
Internet Connection Yes
Required Hardware USB 2.0 Port
Power
AC Input Power 90 to 240 VAC, 50 / 60 Hz
AC Power Connector IEC
Power Consumption 100 W
Physical
Dimensions 15.6 x 16 x 5.5″ / 395.2 x 406.4 x 139.7 mm
Weight 20 lb / 9.1 kg
Packaging Info
Package Weight 24 lb
Box Dimensions (LxWxH) 24 x 22 x 11″
