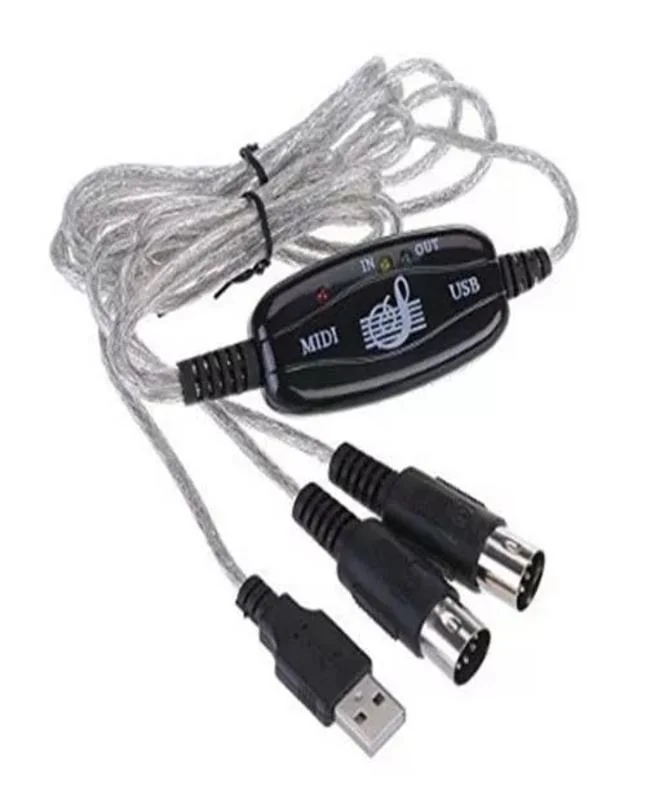

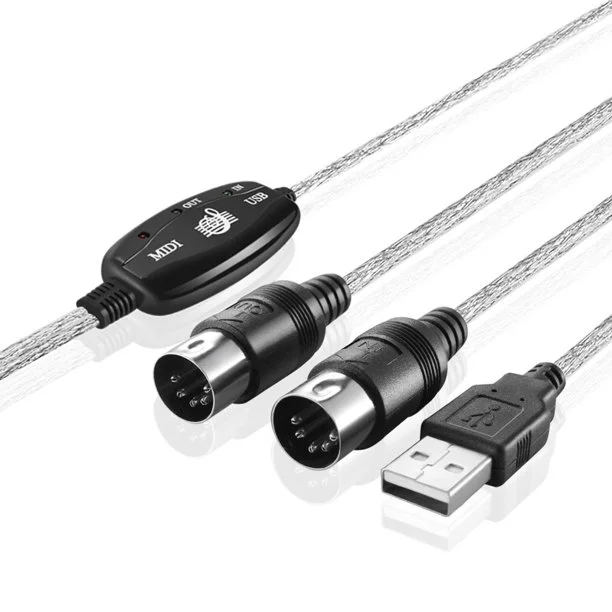

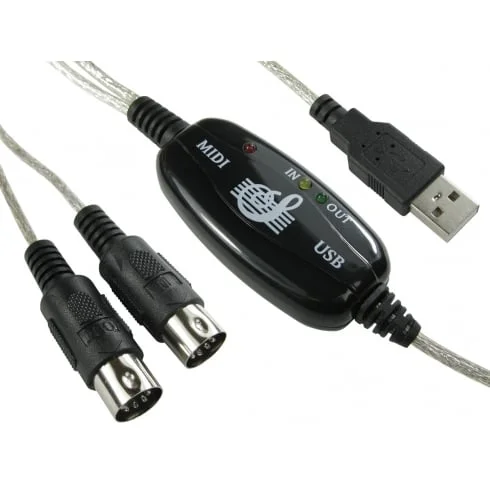

MIDI To USB Cable

MIDI To USB Cable Overview

It’s easy to turn your PC into a music studio. Start by connecting an electronic musical instrument to your computer with the supplied USB MIDI cable. Within minutes you will be able to play songs while they are being recorded on your PC! With appropriate software, you can overdub additional instruments, then edit, mix and even print sheet music of your final compositions.

Latest version with a built-in driver

• USB Powered and Class Compliant for true plug & play. Just connect to a computer.
• USB socket for automatic installation of the driver.
• 1 in and 1 out MIDI interface; 16 MIDI input channels & 16 MIDI output channels.
• LED’s indicate power on, MIDI in signal and MIDI out signal.
• Supports for Windows XP, Vista Windows7, 10  and for Mac OS X operating system.

Instructions for Use:

• Connect the cable marked “IN” to the MIDI “OUT” socket of a MIDI keyboard or MIDI device
• Connect the cable marked “OUT” to the MIDI “IN” socket of a MIDI keyboard of MIDI device
• Plug the USB cable into any free USB socket on your computer, the red LED will light to show power on
• Open your music software program, e.g. Cubase, Sonar, MIDI Connections, Set the music programs MIDI in and MIDI Out devices to “USB Audio Device” Your USB to MIDI interface is now ready for use.
• To save potential problems, it is recommended that this interface is always connected to the same USB as it was originally installed on to prevent multiple installations of the driver. Midi to USB

Specification:

• Color: Black
• Cable Length: 190cm
• Net weight: 84g

Package Content:

• 1 x 2M Keyboard to PC USB MIDI Cable
