PreSonus Studio 1810c Desktop 18×8 USB Type-C Audio/MIDI Interface

PRESONUS
Availability:

In stock


The PreSonus Studio 1810c desktop 18×8 USB audio/MIDI interface blends studio-quality sonic performance, versatile and expandable I/O, and refreshing ease of use. It offers ultrahigh-resolution conversion, four Class-A preamps, a host of outputs, and a powerful software package.

Key Features

  • Musicians, Small Bands, Producers
  • USB Type-C and USB Type-A Connectivity
  • 4 Class-A Preamps (2 w/ Hi-Z), 4 Line In
  • 2 Headphone Outs, 6 DC-Coupled Line Outs
  • 24-Bit / 192 kHz AD/DA
  • External Power Supply / Mac, Windows
  • Phantom Power, Monitor Mute
  • MIDI and S/PDIF I/O, and ADAT Input
  • 4-Segment I/O Metering
  • DAWs, VIs, Plug-Ins, Loops, and Samples

 130,000

In stock

PreSonus Studio 1810c Overview

For vocalists, musicians, producers, and podcasters in home/project studios and mobile setups, the PreSonus Studio 1810c desktop 18×8 USB audio/MIDI interface blends studio-quality sonic performance, versatile and expandable I/O, and refreshing ease of use. It offers ultrahigh-resolution conversion, four Class-A preamps, a host of outputs, and a powerful software package.

Giving You The Control

The Presonus Studio 1810c can handle any source with clarity and natural tonality, from condenser mics and active DI boxes to electric instruments and line-level mixer outputs, thanks to its configurable 48V phantom power and four XMAX Class-A mic preamps fed via XLR-1/4″ combo inputs. Use the four 1/4″ rear-panel inputs to connect additional line-level sources or outboard mic preamps straight to the A/D converters. The interface can function at a 192 kHz sample rate with 8×6 I/O functionality or at a 24-bit / 48 kHz resolution without compromising channel count thanks to excellent converters in all inputs and outputs.

Four Rear-Panel Line Inputs

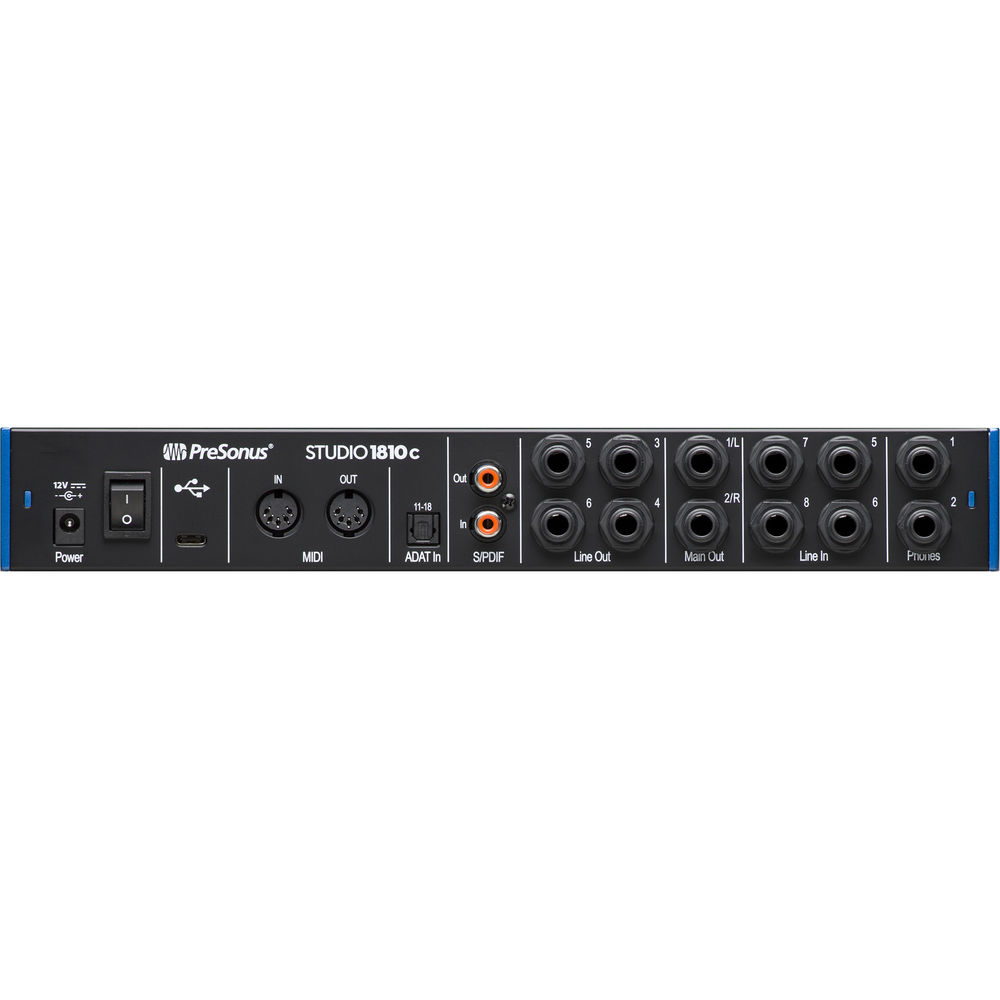

The Studio 1810c’s rear panel has four additional 1/4″ inputs in case you need to record more than four analog sources at once. These 1/4″ line-level inputs can be used to connect the outputs of outboard mic preamps or console direct channel outputs. This will allow the signal to go directly to the A/D converters without going via the interface’s gain stage.

Multiple Headphone and Monitor Outputs

Thanks to the interface’s two 1/4″ main line/monitor outputs and two independent stereo headphone outputs, you can easily hook up a pair of speakers and two sets of headphones, and independently adjust their volume levels via separate knobs on the front panel. At the push of a button (Mute), you can cut the main monitor feed.

Easy-to-use DSP monitor mixing lets you create four discrete mixes for you and three others. The A/B button toggles between monitoring outputs 1-2 and 3-4 while listening in on headphones through the first headphone output.

View details on manufacturer’s website

PreSonus Studio 1810c Specs

Weight 5.38 lbs
Dimensions 20.2 × 10.1 × 10.1 in
Brands

Key Specs
Channels of I/O
Analog:
8 Inputs / 6 Outputs at 192 kHz
Digital:
10 Inputs / 2 Outputs at 48 kHz
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4 Preamps
Analog Audio I/O
2x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2x Combo XLR-1/4″ TRS Balanced Mic/Line Input
4x 1/4″ TRS Balanced Line Input
6x 1/4″ TRS Balanced Line Output (DC-Coupled)
2x 1/4″ TRS Unbalanced Headphone Output
Digital Audio I/O
1x TOSLINK Optical ADAT Input
1x RCA Coaxial S/PDIF Input
1x RCA Coaxial S/PDIF Output
Host Connection
1x USB-C (Class-Compliant)
OS Compatibility
macOS 10.13 or Later (64-Bit Only)
Windows 10 (64-Bit Only)
10 or Later
6 or Later
Power Requirements
AC/DC Power Adapter (Included)
Channels of I/O
Analog:
8 Inputs / 6 Outputs at 192 kHz
Digital:
10 Inputs / 2 Outputs at 48 kHz
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4 Preamps
Input Level Adjustment
4x Knob
Expansion Slots
No
Signal Processing
Pad
No
Gain/Trim Range
Mic Inputs:
80 dB
Line Inputs:
40 dB
Hi-Z Inputs:
80 dB
High-Pass Filter
No
Solo/Mute
No
Connectivity
Analog Audio I/O
2x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2x Combo XLR-1/4″ TRS Balanced Mic/Line Input
4x 1/4″ TRS Balanced Line Input
6x 1/4″ TRS Balanced Line Output (DC-Coupled)
2x 1/4″ TRS Unbalanced Headphone Output
Phantom Power
48 V, Selectable On/Off (Applied to All Inputs)
Phantom Power Current
> 10 mA per Channel
Digital Audio I/O
1x TOSLINK Optical ADAT Input
1x RCA Coaxial S/PDIF Input
1x RCA Coaxial S/PDIF Output
Host Connection
1x USB-C (Class-Compliant)
Host Connection Protocol
USB 2.0
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
1x DIN 5-Pin Input
1x DIN 5-Pin Output
Performance
Frequency Response
Mic, Line Inputs:
20 Hz to 20 kHz (Unity Gain)
Hi-Z Inputs:
20 Hz to 20 kHz (Min Gain)
Monitor Outputs:
20 Hz to 20 kHz (Unity Gain)
Line Outputs:
20 Hz to 20 kHz
Headphone Outputs:
20 Hz to 20 kHz (Unity Gain)
Maximum Input Level
Mic Inputs:
+16 dBu (Balanced, Min Gain)
Line Inputs:
+21 dBu (Balanced, Min Gain)
Hi-Z Inputs:
+15 dBu (Unbalanced, Min Gain)
Maximum Output Level
Line/Monitor Outputs:
+18 dBu (Balanced)
Headphone Output Power
150 mW per Channel into 60 Ohms (Max)
Impedance
Mic Inputs:
1.4 Kilohms
Line Inputs:
10 Kilohms
Hi-Z Inputs:
1 Megohm
Headphone Outputs:
600 Ohms
Dynamic Range
AD/DA Converters:
114 dB
Mic Inputs:
110 dBA (Min Gain)
Line/Hi-Z Inputs:
112 dBA (Min Gain)
Monitor Outputs:
108 dBA
Line Outputs:
108 dBA (-60 dBFS)
Headphone Outputs:
103 dBA (1 kHz)
THD+N
Mic Inputs:
0.005% (1 kHz, Unity Gain)
Line Inputs:
0.005% (1 kHz, Min Gain, at +18 dBu)
Hi-Z Inputs:
0.02% (1 kHz, Min Gain, +10 dBu Input)
Monitor Outputs:
0.004% (1 kHz, Unity Gain, at -1 dBFS)
Line Outputs:
0.004% (1 kHz, Unity Gain, at -1 dBFS)
Headphone Outputs:
0.25% (1 kHz, Unity Gain)
EIN
Mic Inputs:
-128 dBu A-Weighted
Digital Audio
Sample Rates
Up to 192 kHz (AD/DA Conversion)
Sample Rate Conversion
No
Bit Depths
Up to 24-Bit (AD/DA Conversion)
Sync Sources
ADAT, Internal, S/PDIF
Audio Storage & Playback
Memory Card Slot
No
Compatibility
OS Compatibility
macOS 10.13 or Later (64-Bit Only)
Windows 10 (64-Bit Only)
10 or Later
6 or Later
Processor Requirement
Mac:
Intel Core i3
PC:
Intel Core i3
AMD
RAM Requirements
4 GB, 8 GB Recommended
Storage Requirements
32 GB
Minimum Display Resolution
1366 x 768
Mobile Device Compatibility
iPad Pro
iPad Air
iPad Air 2
iPad Mini with Retina
iPad Mini 4
iPad 4th Gen.
Android Smartphone
Android Tablet
Required Hardware
USB Cable (Included)
Available USB 2.0 Port or USB-C Port
Internet Connection
Required for Registration, Software/Driver Download
Power
Power Requirements
AC/DC Power Adapter (Included)
Rail Voltage
Preamp:
+30 V
AC/DC Power Adapter
12 V, Center-Positive (Included)
Physical
Dimensions
12.5 x 5.5 x 1.75″ / 31.8 x 14 x 4.45 cm
Weight
3.2 lb / 1.5 kg
Packaging Info
Package Weight
5.38 lb
Box Dimensions (LxWxH)
20.2 x 10.1 x 10.1″

In The Box

  • PreSonus Studio 1810c Desktop 18×8 USB Type-C Audio/MIDI Interface
  • Studio One Artist Software (Download)
  • Studio Magic Plug-In Suite (Download)
  • USB Type-C Cable (3.3′)
  • USB Type-A to USB Type-C Cable (3.3′)
  • External Power Supply
